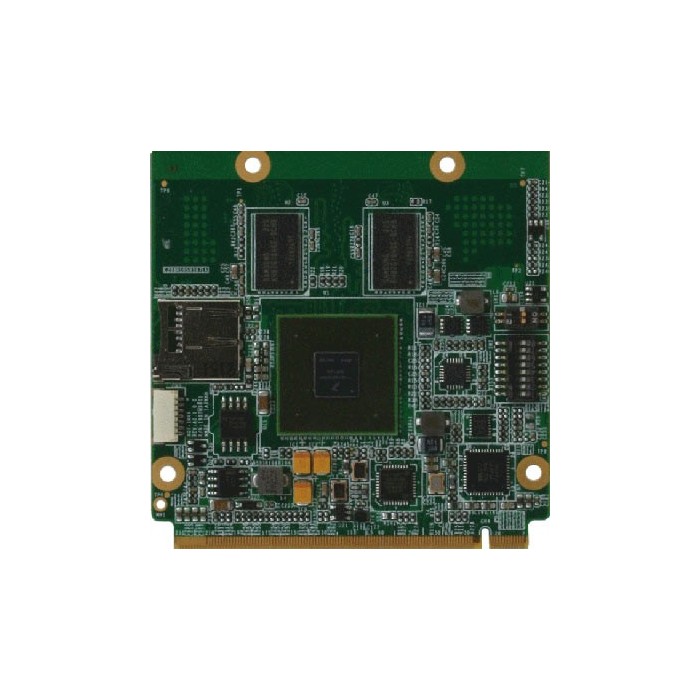

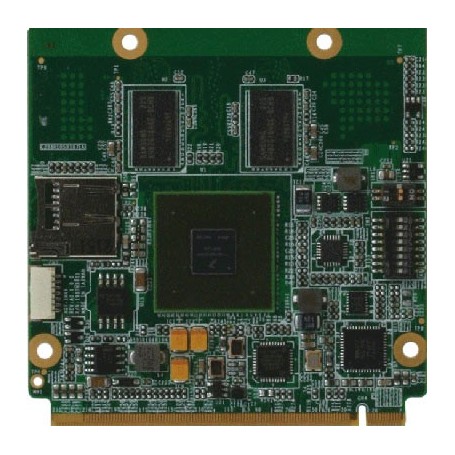

Q7 CPU Module with Onboard Freescale i.MX6 Solo/Dual/Quad ARM Cortex A9 Processor : AQ7-IMX6 Agrandir l'image

Q7 CPU Module with Onboard Freescale i.MX6 Solo/Dual/Quad ARM Cortex A9 Processor : AQ7-IMX6 | AAEON

Produit Obsolète Nouveau produit : Embedded Computing intel Atom 2 GHz CPU Module : IBQ800 System Form Factor : Qseven, Qseven Rev. 2.0 Processor - Freescale i.MX6 Solo 1.0GHz Processor - Freescale i.MX6 Dual 1.0GHz Processor - Freescale i.MX6 Quad 1.0/1.2GHz Processor System Memory : - Onboard...

Téléchargement

Description

Produit Obsolète

Nouveau produit : Embedded Computing intel Atom 2 GHz CPU Module : IBQ800

System

  • Form Factor : Qseven, Qseven Rev. 2.0
  • Processor
    - Freescale i.MX6 Solo 1.0GHz Processor
    - Freescale i.MX6 Dual 1.0GHz Processor
    - Freescale i.MX6 Quad 1.0/1.2GHz Processor
  • System Memory :
    - Onboard DDR3/1GB, Max. 1 GB (Solo/Dual)
    - Onboard DDR3/1GB, Max. 2 GB (Quad)
  • Chipset
  • I/O Chipset
  • Ethernet : Micrel KSZ9021RNI for 10/1000/1000Base
  • BIOS
  • Wake On LAN : Yes
  • Watchdog Timer : Integrated Watch Dog and Timer
  • H/W Status Monitoring : Integrate advanced power management
  • Expansion Interface :
    - PCI Express [x1] x1
    - CAN Bus x1
    - SMBUS x1
    - UART x1
    - SDIO x1
  • Power Requirement : +5V DC
  • Power Consumption (Typical)
  • Board Size : 2.75" x 2.75"(70mm x 70mm)
  • Gross Weight : 0.44 lb (0.2 Kg)
  • Operation Temperature : 32 °F ~ 140 °F (0 °C ~ 60 °C) or -40°F ~ 185°F (-40°C ~ 85°C) for WiTAS 2
  • Storage Temperature : -40°F ~ 185°F (-40°C ~ 85°C)
  • Operation Humidity : 0% ~ 90% relative humidity, non-condensing
  • MTBF (Hours)

Display: Supports LCD/CRT/HDMI

  • Resolution :
    - Up to 1400 x 1050 (SXGA) @ 60Hz for CRT
    - Up to 1366 x 768 or 1280 x 800 (WXGA) @ 60Hz for LCD
  • LCD Interface : Up to 24-bit dual channel LVDS (optional)

I/O

  • Storage : 1 SATA (3GB/s), eMMCx1(optional)
  • Serial Port : 1 (Tx/Rx)
  • Parallel Port
  • USB : USB 2.0 x 5(Shared with 1 x USB OTG client)
  • PS/2 Port
  • I2C : 1
  • Audio : I2S
  • GPIO : 8-bit

Principales Caractéristiques (Peut contenir des options)

CPU Freescale i.MX6
Form Factor Qseven Carrier Board
