Description

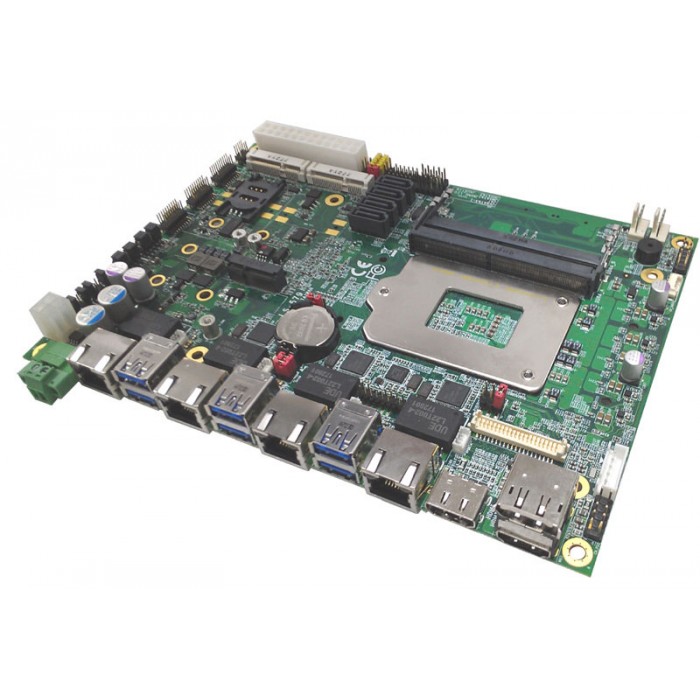

COMMELL est le leader mondial des ordinateurs monocarte industriel. Sa carte système intégrée LS-579 5,25 " est basée sur les processeurs Intel® Skylake / Kaby Lake Intel® 6e / 7e Gen Core ™ i7 / i5 / i3 S.
Caractéristiques Techniques
- CPU : Intel® 6th / 7th Gen Core™ i7 / i5 / i3 S-series Processor and E3-1200 v5 / v6 processor, FCLGA1151 package.
- Memory : Two DDR4 1866/2133 SO-DIMM up to 32GB.
- Integrated Graphics: Intel integrated HD Graphics.
- Display port interface : Onboard Display port connector.
- LVDS interface : Onboard 18/24-bit single/dual channel LVDS connector with +3.3V/+5V/ +12V supply
- VGA interface : 16-pin connector.
- Display port interface : Onboard Display port connector.
- HDMI interface : Onboard HDMI connector.
- LAN Interface : 3 x Intel I210-AT Gigabit LAN, 1 x Intel I219-LM Gigabit PHY LAN.
- Serial ATA : Support 4 x SATA3.
- Audio : Realtek ALC262 HD Audio.
- Internal I/O : 4 x SATA3, 2 x RS232/422/485, 4 x RS232, 4 x USB2.0, 1 x LVDS, 1 x LPC, 1 x LCD inverter, 1 x GPIO, 1 x Audio, 1 x PS/2, 1 x SMBUS.
- Rear I/O : 1 x DisplayPort, 2 x HDMI, 6 x USB3.0, 4 x LAN, .
- Extended interface : Two PCIe Mini card (Support mSATA), one SIM socket, two M.2 (Key M) for PCIe NVMe 2242/2260/2280mm, one M.2 (Key E) for Wi-Fi and Bluetooth 2230m.
- GPIO interface : Onboard programmable 8-bit Digital I/O interface.
- Power requirement : Standard 24-pin ATX power supply (20-pin is compatible) or 4-pin 9~35V.
