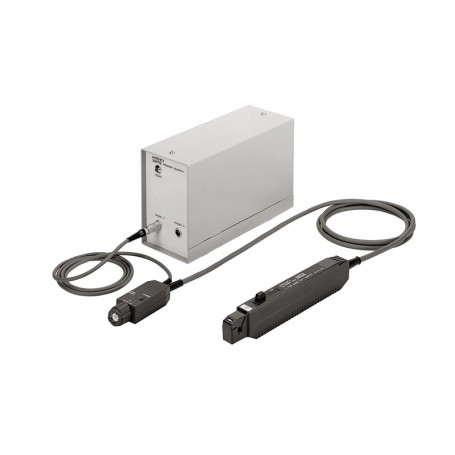

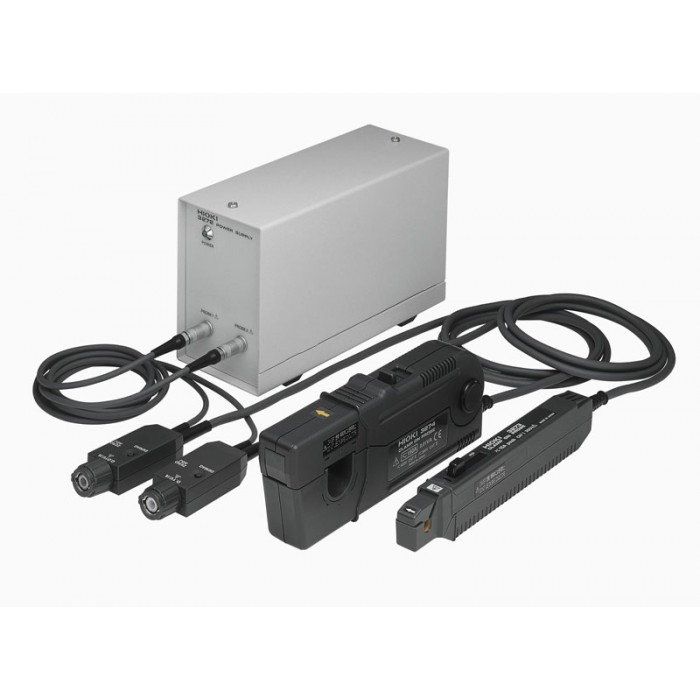

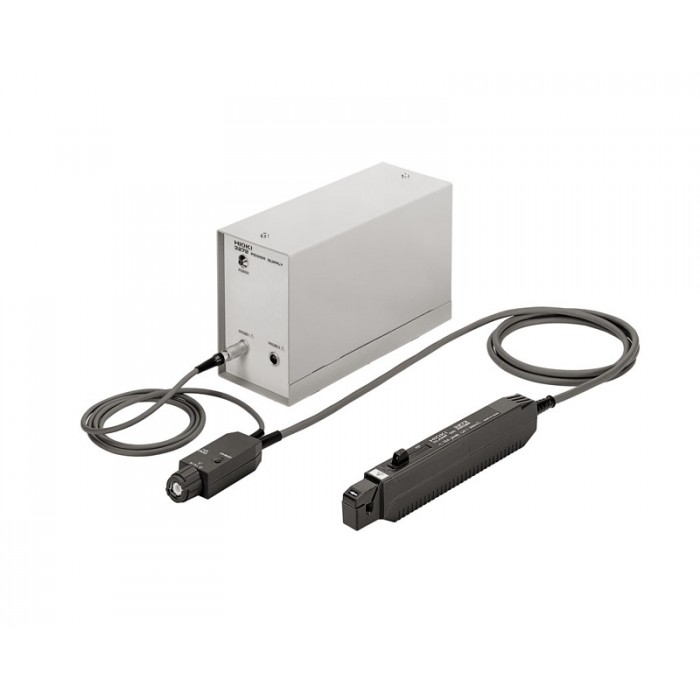

Hioki flat bandwidth current probes are best-in-class current sensors for use with Memory HiCorders and high performance oscilloscopes. The 3272 is a single channel power supply for outputting signals measured by the 327X Series AC/DC Clamp On Probe to the data acquisition equipment.

Specifications :

• Compatible sensors :
  • Model CT6700, CT6701: up to 2 units
  • Model 3273-50, 3274, 3275 or 3276: up to 1 unit
  • Note: May be used with up to 2 units of Model 3273 (not -50 type), and up to 2 units of Models 3273-50, 3274, 3275 or 3276 on condition that the measurement current is sufficiently low.
• Number of power supply connectors : 2
• Output : ±12 V ±0.5 V, 600 mA (sum total of all channels)
• Power supply : 100 V or 120/ 220/ 240 V AC (specify when ordering), 50/60 Hz 20 VA max.
• Dimensions and mass : 73 mm (2.87 in)W × 110 mm (4.33 in)H × 186 mm (7.32 in)D, 1.1 kg (38.8 oz)
• Accessories : Power cord ×1, Instruction manual ×1, Spare fuse ×1
