Description

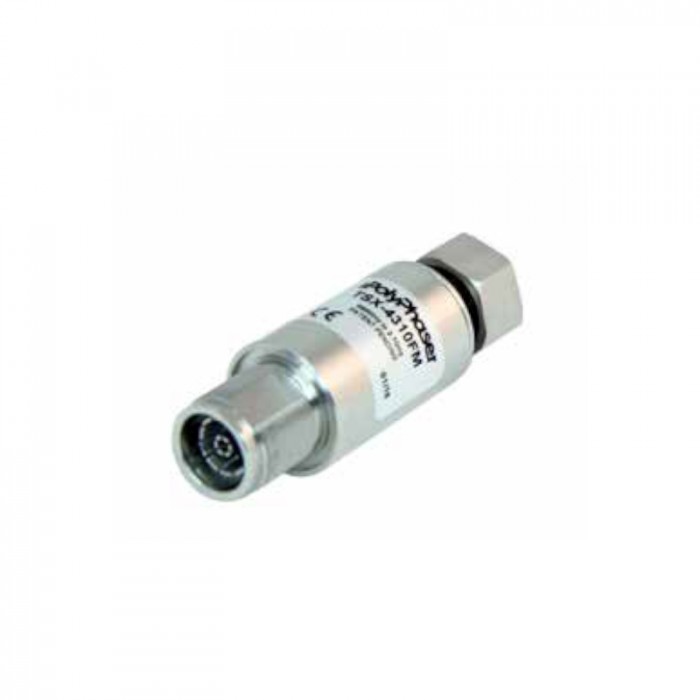

Utilisant le design breveté SX ™de filtre combiné à un connecteur 4.3-10, le PolyPhaser TSX-4310 bidirectionnel apporte un avantage significatif aussi bien en performance PIM qu'en capacité de surtension tout en occupant 40% d'espace en moins que les produits au design traditionnel.
Pour plus d'informations concernant la gamme de produits de la série TSX, veuillez consulter la documentation de la page, ou contacter nos experts.
Caractéristiques :
- Indice de surtension de 40 kA
- Faible énergie passante (<300 nJ) pour une protection maximale des équipements
- Ultra faible PIM typique -120 dBm
- Idéal pour les bandes 4G LTE et cellulaires de 698 MHz à 2,7 GHz
- Capacité de frappe multiple
- Montage sur cloison
- Connecteur 4.3-10 femelle-femelle et femelle-mâle
Normes :
- CEI 60529 IP67
- Conforme RoHS et CE
- Performances de surtension - IEC 61000 - Forme d'onde 4,58 / 20 μs
| 300 MHZ TO 1.2 GHZ |
| Part Number |
Max Surge |
Connector |
PIM Rating |
DC Block or DC Pass |
RF Power |
| TUSX-DFF |
40 kA, 8 x 20 µs |
7/16” DIN, Female to Female |
-112 dBm Max @ 2 x 20 W |
DC Block |
1000 W |
| TUSX-DFM |
40 kA, 8 x 20 µs |
7/16” DIN, Male to Female |
-112 dBm Max @ 2 x 20 W |
DC Block |
1000 W |
| TUSX-NFF |
40 kA, 8 x 20 µs |
N-Type, Female to Female |
– |
DC Block |
1000 W |
| TUSX-NFM |
40 kA, 8 x 20 µs |
N-Type, Male to Female |
– |
DC Block |
1000 W |
| 698 MHZ TO 2.7 GHZ |
| Part Number |
Max Surge |
Connector |
PIM Rating |
DC Block or DC Pass |
RF Power |
| TSX-4310FF-P |
40 kA, 8 x 20 µs |
4.3-10, Female to Female |
Typ: -173 dBc @ 2 x 20 W |
DC Block |
500 W |
| TSX-4310FM-P |
40 kA, 8 x 20 µs |
4.3-10, Male to Female |
Typ: -173 dBc @ 2 x 20 W |
DC Block |
500 W |
| TSXDC-4310FF |
20 kA, 8 x 20 µs |
4.3-10, Female to Female |
Typ: -173 dBc @ 2 x 20 W |
DC Pass (AISG) |
500 W |
| TSXDC-4310FM |
20 kA, 8 x 20 µs |
4.3-10, Male to Female |
Typ: -173 dBc @ 2 x 20 W |
DC Pass (AISG) |
500 W |
| TSX-DFF |
40 kA, 8 x 20 µs |
7/16” DIN, Female to Female |
Max: -155 dBc @ 2 x 20 W |
DC Block |
500 W |
| TSX-DFM |
40 kA, 8 x 20 µs |
7/16” DIN, Male to Female |
Max: -155 dBc @ 2 x 20 W |
DC Block |
500 W |
| TSXDC-DFF |
20 kA, 8 x 20 µs |
7/16” DIN, Female to Female |
Max: -155 dBc @ 2 x 20 W |
DC Pass (AISG) |
1000 W |
| TSXDC-DFM |
20 kA, 8 x 20 µs |
7/16” DIN, Male to Female |
Max: -155 dBc @ 2 x 20 W |
DC Pass (AISG) |
1000 W |
| TSX-NFF |
40 kA, 8 x 20 µs |
N-Type, Female to Female |
– |
DC Block |
500 W |
| TSX-NFF-P |
40 kA, 8 x 20 µs |
N-Type, Female to Female |
Max: -155 dBc @ 2 x 20 W |
DC Block |
500 W |
| TSX-NFM |
40 kA, 8 x 20 µs |
N-Type, Male to Female |
– |
DC Block |
500 W |
| TSX-NFM-P |
40 kA, 8 x 20 µs |
N-Type, Male to Female |
Max: -155 dBc @ 2 x 20 W |
DC Block |
500 W |
| 1.8 GHZ TO 3.8 GHZ AND 4.2 GHZ TO 6.0 GHZ |
| Part Number |
Max Surge |
Connector |
PIM Rating |
DC Block or DC Pass |
RF Power |
| LSXL |
18 kA, 8 x 20 µs |
N-Type, Female to Female |
_ |
DC Block |
10 W |
| LSXL-ME |
18 kA, 8 x 20 µs |
N-Type, Male to Female |
_ |
DC Block |
10 W |
| 2 GHZ TO 6 GHZ |
| Part Number |
Max Surge |
Connector |
PIM Rating |
DC Block or DC Pass |
RF Power |
| AL-LSXM |
10 kA, 8 x 20 µs |
N-Type, Female to Female |
_ |
DC Block |
10 W |
| AL-LSXM-MA |
10 kA, 8 x 20 µs |
N-Type, Male to Female |
_ |
DC Block |
10 W |
| AL-LSXM-ME |
10 kA, 8 x 20 µs |
N-Type, Male to Female |
_ |
DC Block |
10 W |
| 6 GHZ TO 10 GHZ |
| Part Number |
Max Surge |
Connector |
PIM Rating |
DC Block or DC Pass |
RF Power |
| WSXM |
10 kA, 8 x 20 µs |
N-Type, Female to Female |
_ |
DC Block |
10 W |
- CEI 60529 IP67
- Conforme RoHS et CE
- Performances de surtension - IEC 61000 - Forme d'onde 4,58 / 20 μs
Versions disponibles :
