Description

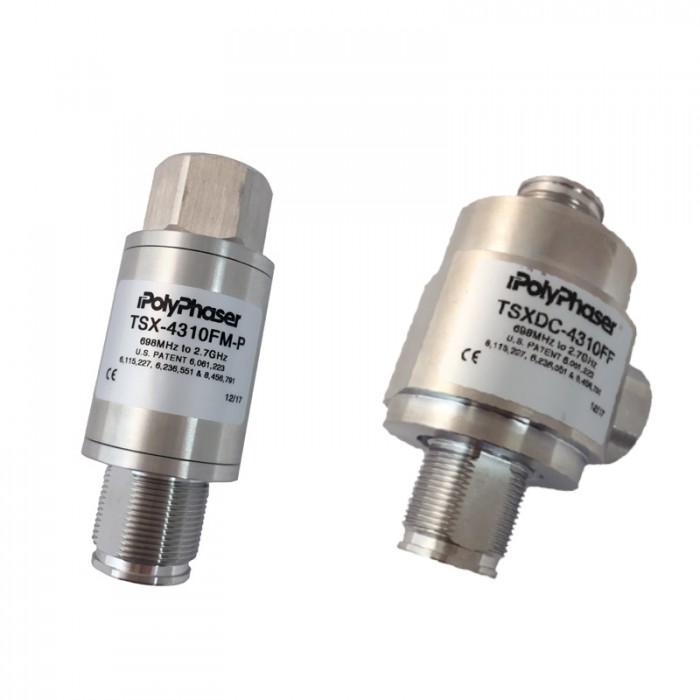

La famille de produits SX est basée sur la technologie brevetée de protection contre les surtensions par inducteur en spirale de PolyPhaser. Celle-ci permet une réponse à un coup de foudre tout en maintenant la performance RF. Cette famille de produits testée sur le terrain est utilisée par les principaux opérateurs cellulaires dans le monde et dans des systèmes de communication sans fil utilisés par les pompiers, la police et intervenants d'urgence.
Pour plus d'informations concernant la série S, veuillez consulter la documentation de la page, ou contacter nos experts.
Caractéristiques :
- Plages de fréquences de DC à 11 GHz
- 4.3-10, 7/16 ”DIN, type N, TNC et SMA
- Disponible avec un PIM bas
- Performances RF reproductibles après surtension
- Résistant aux intempéries une fois installé
Normes :
- Résistant aux intempéries: IEC 60529 IP 67
- Bellcore TA-NWT-000487
- Procédure 4.11, entraînée par le vent (120 MPH)
- Conforme CE et RoHS
| 300 MHZ TO 1.2 GHZ |
| Part Number |
Max Surge |
Connector |
PIM Rating |
DC Block or DC Pass |
RF Power |
| TUSX-DFF |
40 kA, 8 x 20 µs |
7/16” DIN, Female to Female |
-112 dBm Max @ 2 x 20 W |
DC Block |
1000 W |
| TUSX-DFM |
40 kA, 8 x 20 µs |
7/16” DIN, Male to Female |
-112 dBm Max @ 2 x 20 W |
DC Block |
1000 W |
| TUSX-NFF |
40 kA, 8 x 20 µs |
N-Type, Female to Female |
– |
DC Block |
1000 W |
| TUSX-NFM |
40 kA, 8 x 20 µs |
N-Type, Male to Female |
– |
DC Block |
1000 W |
| 698 MHZ TO 2.7 GHZ |
| Part Number |
Max Surge |
Connector |
PIM Rating |
DC Block or DC Pass |
RF Power |
| TSX-4310FF-P |
40 kA, 8 x 20 µs |
4.3-10, Female to Female |
Typ: -173 dBc @ 2 x 20 W |
DC Block |
500 W |
| TSX-4310FM-P |
40 kA, 8 x 20 µs |
4.3-10, Male to Female |
Typ: -173 dBc @ 2 x 20 W |
DC Block |
500 W |
| TSXDC-4310FF |
20 kA, 8 x 20 µs |
4.3-10, Female to Female |
Typ: -173 dBc @ 2 x 20 W |
DC Pass (AISG) |
500 W |
| TSXDC-4310FM |
20 kA, 8 x 20 µs |
4.3-10, Male to Female |
Typ: -173 dBc @ 2 x 20 W |
DC Pass (AISG) |
500 W |
| TSX-DFF |
40 kA, 8 x 20 µs |
7/16” DIN, Female to Female |
Max: -155 dBc @ 2 x 20 W |
DC Block |
500 W |
| TSX-DFM |
40 kA, 8 x 20 µs |
7/16” DIN, Male to Female |
Max: -155 dBc @ 2 x 20 W |
DC Block |
500 W |
| TSXDC-DFF |
20 kA, 8 x 20 µs |
7/16” DIN, Female to Female |
Max: -155 dBc @ 2 x 20 W |
DC Pass (AISG) |
1000 W |
| TSXDC-DFM |
20 kA, 8 x 20 µs |
7/16” DIN, Male to Female |
Max: -155 dBc @ 2 x 20 W |
DC Pass (AISG) |
1000 W |
| TSX-NFF |
40 kA, 8 x 20 µs |
N-Type, Female to Female |
– |
DC Block |
500 W |
| TSX-NFF-P |
40 kA, 8 x 20 µs |
N-Type, Female to Female |
Max: -155 dBc @ 2 x 20 W |
DC Block |
500 W |
| TSX-NFM |
40 kA, 8 x 20 µs |
N-Type, Male to Female |
– |
DC Block |
500 W |
| TSX-NFM-P |
40 kA, 8 x 20 µs |
N-Type, Male to Female |
Max: -155 dBc @ 2 x 20 W |
DC Block |
500 W |
| 1.8 GHZ TO 3.8 GHZ AND 4.2 GHZ TO 6.0 GHZ |
| Part Number |
Max Surge |
Connector |
PIM Rating |
DC Block or DC Pass |
RF Power |
| LSXL |
18 kA, 8 x 20 µs |
N-Type, Female to Female |
_ |
DC Block |
10 W |
| LSXL-ME |
18 kA, 8 x 20 µs |
N-Type, Male to Female |
_ |
DC Block |
10 W |
| 2 GHZ TO 6 GHZ |
| Part Number |
Max Surge |
Connector |
PIM Rating |
DC Block or DC Pass |
RF Power |
| AL-LSXM |
10 kA, 8 x 20 µs |
N-Type, Female to Female |
_ |
DC Block |
10 W |
| AL-LSXM-MA |
10 kA, 8 x 20 µs |
N-Type, Male to Female |
_ |
DC Block |
10 W |
| AL-LSXM-ME |
10 kA, 8 x 20 µs |
N-Type, Male to Female |
_ |
DC Block |
10 W |
| 6 GHZ TO 10 GHZ |
| Part Number |
Max Surge |
Connector |
PIM Rating |
DC Block or DC Pass |
RF Power |
| WSXM |
10 kA, 8 x 20 µs |
N-Type, Female to Female |
_ |
DC Block |
10 W |
| 10 GHZ TO 11 GHZ |
| Part Number |
Max Surge |
Connector |
PIM Rating |
DC Block or DC Pass |
RF Power |
| AL-WSXM-CBB |
10 kA, 8 x 20 µs |
N-Type, Female to Female |
_ |
DC Block |
10 W |
