Contrôle de la température par caméra thermique : iMage-E | DFI

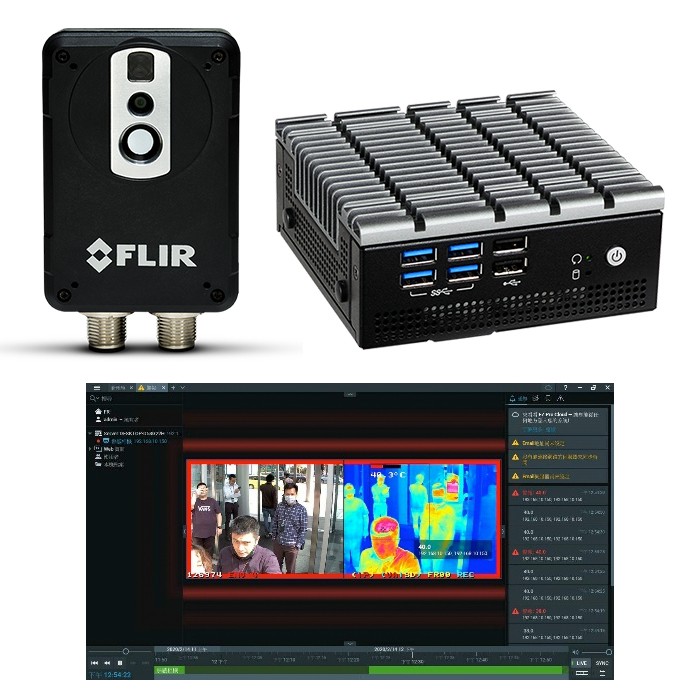

DFI's Smart Termal Sytem iMage-E is an entry-level for signe-person fever detection, featuring DFI's EB100-KU embedded computer and a thermal camera that simultaneously detects up to 3 areas within 1 to 1,5 meters.

Once temperature abnormality is detected, the iMage-E issues real-time alarms - CCTV video pop-up, warning sound, email notification, and etc. The iMage-E, with a friendly UI, provides open APls to integrate 3rd party systems, and help query information of certain events along with images.

Fever detection :

• Resolution RGB : 640 x 480 ; IR:80 x 60 pixels
• Image Streaming Format : Motion JPEG / MPEG / H.264
• Min. Illusion : Minimum 10 Lux without illuminator
• Image Modes : Thermal, Visual, MSX (IR-image with enhanced detail presentation)
• Thermal Sensitivity/NETD : <0.10°C@+30°C (+86°F)/100mK
• Accuracy : ±0.3°C (<1m fixed distance) ±0.8°C (1 to 1.5m fixed distance)
• Object temperature range : –10°C to +150°C (14°F to 302°F)
• Detection Area : Up to 3 boxes
• Encapsulation : IP67
• Communication and Power : Ethernet 100Mbps, powered over Ethernet, PoE IEEE 802.3af class 0
• Operating Temperature : 0°C to +50°C (32°F to +122°F)

 Box PC EB100-K :

• CPU: Intel Core i3-6100U Processor 2.3GHz
• Memory: DDR4 2666MHz SOOIMM 8GB
• System Drive: 1xM.2280
• I/O: 2x HDMI 2.0, 4x USB 3.0, 2x USB 2.0, 2x GbE
• Power: 12VDC power input
• Operating Temperature: -20-40°C
• Operating System: Windows 10 IoT Enterprise 2019 LTSC
• Warranty: Long Lite Cycle Support, 2 years warranty

Attention ce produit n’est pas un dispositif médical et en aucun cas, il ne peut se substituer à la prise de température par un dispositif médical agréé.
