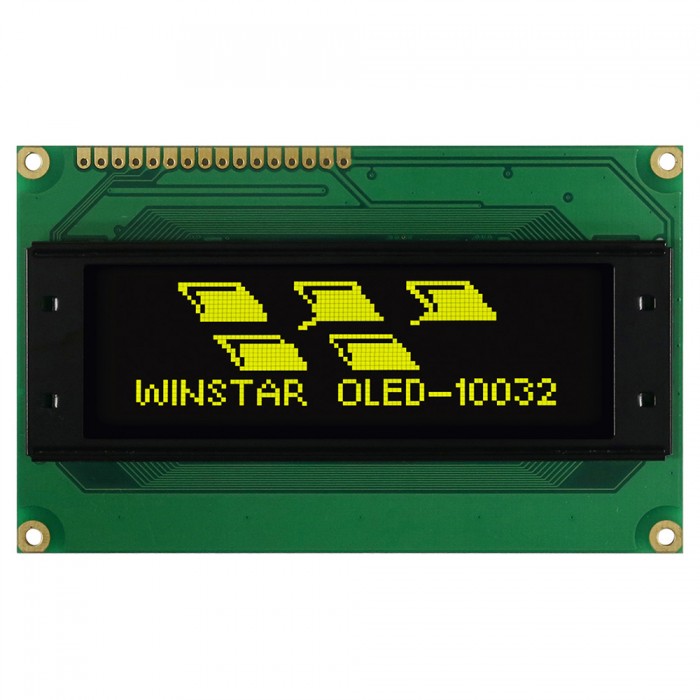

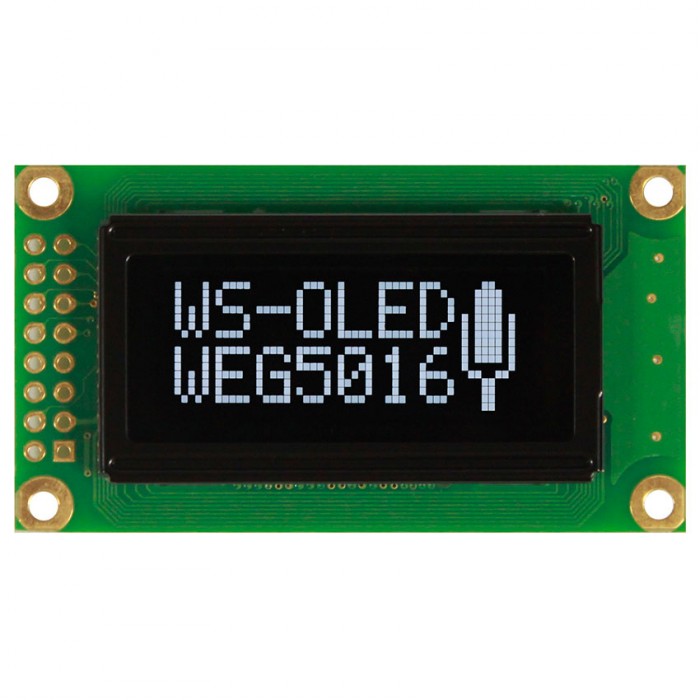

Afficheur standard OLED graphique : Série WEG Agrandir l'image
Précédent Suivant

Afficheur standard OLED graphique : Série WEG | Winstar

Les modules OLED Winstar conviennent parfaitement aux applications nécessitant un affichage électronique

Plus de détails

Téléchargez le Livre Blanc concernant les afficheurs LCD Monochromes Téléchargez le livre blanc des afficheurs TFT

Téléchargement

Documentation WEG

Téléchargez ce fichier (1.33M)

Description

Les écrans graphiques OLED de Winstar Display sont disponibles en trois structures mécaniques, dont la technologie de matrice passive COB, COG et TAB. La résolution graphique disponible est de 50x16 OLED graphique, 100x8 OLED graphique, 100x16 OLED monochrome, 100x32 OLED graphique, 200x16 OLED graphique, 128x32 OLED, affichage OLED 128x64, 128x128 OLED graphique, et 256x64 OLED. Les écrans OLED graphiques de la gamme de produits Winstar ont des contrôleurs embarqués et les interfaces comprennent des OLED parallèles, série, et I2C, SPI OLED. Ces modules d'affichage OLED ont des tensions de commande de 3V, ou 5V selon la résolution/couleur.

Winstar offre une large gamme de modules d'affichage OLED dans des tailles allant de 0,49" à 0,66". OLED, 0.66" OLED, 0.91" OLED, 0.96" OLED, 2" OLED à 5.5" OLED, et des solutions de conception sur mesure.

Les petits modules d'affichage OLED de Winstar sont parfaits pour un certain nombre d'appareils qui nécessitent un panneau d'affichage électronique. Ces applications comprennent les dispositifs portables, les cigarettes électroniques, les systèmes de point de vente, les produits blancs, les applications domestiques, les instruments industriels, les systèmes de point de vente, l'automatisation, les systèmes d'affichage audio/visuel, les dispositifs médicaux, les appareils de soins personnels, les produits ménagers, les affichages automobiles et les affichages d'informations dynamiques.

Certains modèles possèdent un FPC en option, contactez nous pour en savoir plus.

Références et spécifications :

Display Format Model No. Structure Size
(inch)		 Active Area (mm) Dot Size (mm) Dot Pitch (mm) Power Supply Interface IC Grayscale
50×16 WEG005016A COB 1.26 29.96×11.16 0.56×0.66 0.60×0.70 5V 6800,8080,SPI WS0010-TX No
76×16 WEG007616A COB 1.7 47.7×11.1 0.45×0.60 0.55×0.70 5V 6800,8080,SPI WS0010-TX No
100×16 WEG010016A COB 2.4 59.95×11.15 0.55×0.65 0.60×0.70 5V 6800,8080,SPI WS0010-TX No
100×16 WEG010016C COB 2.4 59.95×11.15 0.55×0.65 0.60×0.70 5V 6800,8080,SPI WS0010-TX No
100×16 WEG010016D COB 2.4 59.95×11.15 0.55×0.65 0.60×0.70 5V 6800,808 WS0010-TX No
100×16 WEG010016E COB 2.4 59.95×11.15 0.55×0.65 0.60×0.70 5V 6800,8080,SPI WS0010-TX No
100×16 WEG010016F COB 2.59 64.95×11.15 0.60×0.65 0.65×0.70 5V 6800,8080,SPI WS0010-TX No
100×16 WEG010016J COB 3.84 95.94×17.86 0.90×1.06 0.96×1.12 5V 6800 WS0010-TX No
100×32 WEG010032A COB 2.44 58.95×19.15 0.54×0.55 0.59×0.60 5V 6800,8080,SPI WS0010-TX No
100×32 WEG010032B COB 2.44 58.95×19.15 0.54×0.55 0.59×0.60 5V 6800,8080,SPI WS0010-TX No
200×16 WEG020016A COB 4.9 123.95×11.15 0.57×0.65 0.62×0.70 5V 6800 WS0010-TX No
48×64 WEO004864A COG 0.71 10.54×14.7 0.198×0.208 0.22×0.23 3V I2C SSD1306 No
64×32 WEO006432A COG 0.49 11.18×5.58 0.153×0.153 0.175×0.175 3V I2C SSD1306 No
64×48 WEO006448A COG 0.66 13.42×10.06 0.185×0.185 0.21×0.21 3V 6800,8080,SPI,I2C SSD1306 No
64×48 WEO006448B COG 0.66 13.42×10.06 0.185×0.185 0.210×0.210 3V 6800,8080,SPI,I2C SSD1315 No
64×128 WEO064128A COG 0.96 10.86×21.74 0.15×0.15 0.17×0.17 3V SPI,I2C SH1107 No
96×16 WEO009616A COG 0.84 21.104×3.504 0.198×0.198 0.22×0.22 3V I2C SSD1306 No
96×16 WEO009616B COG 0.69 17.26×3.18 0.16×0.18 0.18×0.20 3V I2C SSD1306 No
96×32 WEO009632B COG 0.68 16.298×5.418 0.148×0.148 0.17×0.17 3V 6800,8080,SPI,I2C SSD1305 No
96×64 WEO009664A COG 0.95 19.946×13.418 0.184×0.186 0.208×0.21 3V 6800,8080,SPI,I2C SSD1305 No
96×64 WEO009664B COG 1.1 22.53×15.01 0.205×0.205 0.235×0.235 3V 6800,8080,SPI,I2C SSD1327 Support
128×32 WEO012832A COG 2.23 55.018×13.098 0.408×0.388 0.43×0.41 3V 6800,8080,SPI,I2C SSD1305 No
128×32 WEO012832D COG 0.91 22.384×5.584 0.152×0.152 0.175×0.175 3V SPI SSD1306 No
128×32 WEO012832F COG 0.91 22.384×5.584 0.152×0.152 0.175×0.175 3V I2C SSD1306 No
128×32 WEO012832P COG 1.71 42.22×10.54 0.308×0.308 0.33×0.33 3V SPI,I2C CH1115 No
128×32 WEO012832K COG 2 50.535×10.695 0.37×0.31 0.395×0.335 3V 6800,8080,SPI,I2C SSD1315 No
128×32 WEO012832N COG 2.23 55.016×13.096 0.406×0.386 0.43×0.41 3V 6800,8080,SPI,I2C SH1106 No
128×64 WEO012864A COG 1.54 35.05×17.51 0.249×0.249 0.274×0.274 3V 6800,8080,SPI,I2C SSD1309 No
128×64 WEO012864AA COG 1.54 35.05×17.51 0.249×0.249 0.274×0.274 3V 6800,8080,SPI,I2C SSD1327 Support
128×64 WEO012864AB COG 0.96 21.74×11.2 0.15×0.15 0.17×0.17 3V 6800,8080,SPI,I2C SSD1315 No
128×64 WEO012864AC COG 0.96 21.74×10.86 0.15×0.15 0.17×0.17 3V 6800,8080,SPI,I2C SSD1315 No
128×64 WEO012864AD COG 0.96 21.74×10.86 0.15×0.15 0.17×0.17 3V 6800,8080,SPI,I2C ST7315 No
128×64 WEO012864AE COG 1.54 35.05×17.51 0.249×0.249 0.274×0.274 3V 6800,8080,SPI,I2C CH1116 No
128×64 WEO012864AJ COG 2.42 55.01×27.49 0.40×0.40 0.43×0.43 3V 6800,8080,SPI,I2C CH1116 No
128×64 WEO012864AK COG 2.7 61.41×30.69 0.45×0.45 0.48×0.48 3V 6800,8080,SPI,I2C CH1116 No
128×64 WEO012864C COG 0.96 21.74×10.86 0.148×0.148 0.17×0.17 3V 6800,8080,SPI,I2C SH1106 No
128×64 WEO012864D COG 0.96 21.738×10.858 0.148×0.148 0.17×0.17 3V 6800,8080,SPI,I2C SSD1306 No
128×64 WEO012864G COG 2.42 55.01×27.49 0.40×0.40 0.43×0.43 3V 6800,8080,SPI,I2C SSD1309 No
128×64 WEO012864H COG 2.42 55.01×27.49 0.40×0.40 0.43×0.43 3V 6800,8080,SPI,I2C SSD1309 No
128×64 WEO012864J COG+PCB 2.42 55.01×27.49 0.40×0.40 0.43×0.43 3V 6800,8080,SPI,I2C SSD1309 No
128×64 WEO012864K COG 2.7 61.41×30.69 0.45×0.45 0.48×0.48 3V 6800,8080,SPI,I2C SSD1309 No
128×64 WEO012864L COG 1.28 29.42×14.2 0.205×0.197 0.23×0.222 3V 6800,8080,SPI,I2C SH1106 No
128×64 WEO012864MX COG 0.96 21.744×11.204 0.148×0.148 0.17×0.17 3V 6800,8080,SPI,I2C SSD1306 No
128×64 WEO012864Q COG 2.7 61.41×30.69 0.45×0.45 0.48×0.48 3V 6800,8080,SPI,I2C SSD1309 No
128×64 WEO012864U COG 2.7 61.41×30.69 0.45×0.45 0.48×0.48 3V 6800,8080,SPI,I2C SSD1357 Support
128×64 WEO012864V COG 0.96 21.74×10.86 0.15×0.15 0.17×0.17 3V SPI,I2C SSD1315 No
128×64 WEO012864Y COG 1.54 35.05×17.51 0.249×0.249 0.274×0.274 3V 6800,8080,SPI,I2C SSD1309 No
128×128 WEO128128A COG 1.5 26.86×26.86 0.185×0.185 0.21×0.21 3V 6800,8080,SPI,I2C SSD1327 Support
128×128 WEO128128B COG 1.18 Ø30 0.21×0.21 0.235×0.235 3V 6800,8080,SPI,I2C SSD1327 Support
128×128 WEO128128H COG 1.5 26.86×26.86 0.185×0.185 0.210×0.210 3V 8080,SPI,I2C CH1120 No
128×128 WEO128128G COG 1.12 20.076×20.076 0.137×0.137 0.157×0.157 3.3V 6800,8080,SPI,I2C SH1107 No

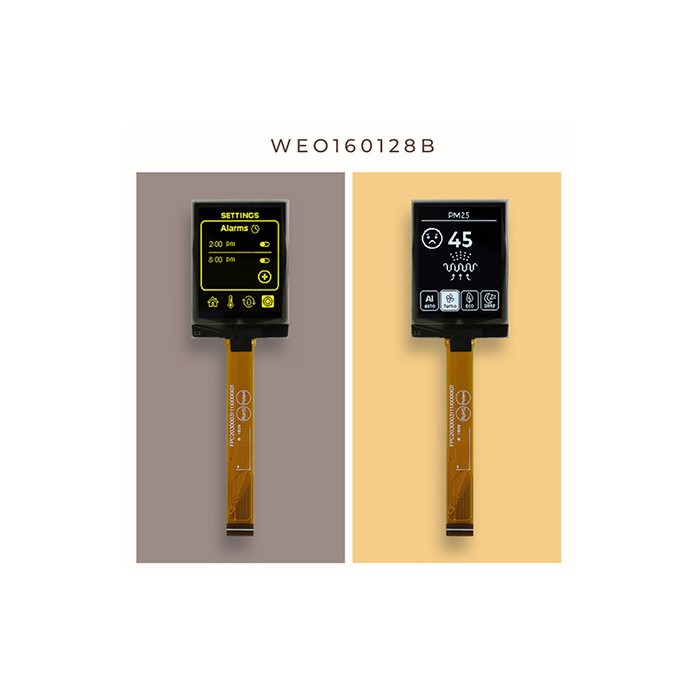

160×128 WEO160128B COG 1.92 28.908×39.34 0.206×0.226 0.226×0.246 3V 6800,8080,SPI,I2C CH1120 Support
256×64 WEO025664A COG 2.08 51.18×12.78 0.18×0.18 0.2×0.2 3V 6800,8080,SPI,I2C SSD1362 Support
256×64 WEO025664D COG 3.55 87.52×21.28 0.312×0.303 0.342×0.333 3V 6800,8080,SPI SSD1322 Support
48×64 WEA004864A COG+PCB 0.71 10.54×14.7 0.198×0.208 0.22×0.23 3V I2C SSD1306 No
64×32 WEA006432A COG+PCB 0.49 11.18×5.58 0.153×0.153 0.175×0.175 3V I2C SSD1306 No
64×48 WEA006448A COG+PCB 0.66 13.42×10.06 0.185×0.185 0.21×0.21 3V I2C SSD1306 No
64×128 WEA064128A COG+PCB 0.96 10.86×21.74 0.15×0.15 0.17×0.17 3V I2C SH1107 No
96×16 WEA009616A COG+PCB 0.84 21.104×3.504 0.198×0.198 0.22×0.22 3V I2C SSD1306 No
96×16 WEA009616B COG+PCB 0.69 17.26×3.18 0.16×0.18 0.18×0.20 3V I2C SSD1306 No
96×64 WEA009664B COG+PCB 1.1 22.53×15.01 0.205×0.205 0.235×0.235 3V SPI,I2C SSD1327 Support
128×32 WEA012832D COG+PCB 0.91 22.384×5.584 0.152×0.152 0.175×0.175 3V SPI SSD1306 No
128×32 WEA012832E COG+PCB 1.04 25.58×6.38 0.176×0.176 0.20×0.20 3V SPI SSD1306 No
128×32 WEA012832F COG+PCB 0.91 22.384×5.584 0.152×0.152 0.175×0.175 3V I2C SSD1306 No
128×32 WEA012832P COG+PCB 1.71 42.22×10.54 0.308×0.308 0.33×0.33 3V SPI CH1115 No
128×64 WEA012864A COG+PCB 1.54 35.05×17.51 0.249×0.249 0.274×0.274 3V SPI,I2C SSD1309 No
128×64 WEA012864AA COG+PCB 1.54 35.05×17.51 0.249×0.249 0.274×0.274 3V SPI SSD1327 Support
128×64 WEA012864AE COG+PCB 1.54 35.05×17.51 0.249×0.249 0.274×0.274 3V SPI CH1116 No
128×64 WEA012864D-01 COG+PCB 0.96 21.74×10.86 0.148 ×0.148 0.17×0.17 3V/5V SPI,I2C SSD1306 No
128×64 WEA012864D-03 COG+PCB 0.96 21.74×10.86 0.148 ×0.148 0.17×0.17 3V/5V I2C SSD1306 No
128×64 WEA012864L(SPI) COG+PCB 1.28 29.42×14.2 0.205×0.197 0.23×0.222 3V/5V SPI SH1106 No
128×64 WEA012864L(I2C) COG+PCB 1.28 29.42×14.2 0.205×0.197 0.23×0.222 3V/5V I2C SH1106 No
128×64 WEA012864MX COG+PCB 0.96 21.746×11.206 0.15×0.15 0.17×0.17 3V/5V I2C SSD1306 No
128×128 WEA128128A COG+PCB 1.5 26.86×26.86 0.185×0.185 0.21×0.21 3.3V/5V SPI,I2C SSD1327 Support
128×128 WEA128128G COG+PCB 1.12 20.076×20.076 0.137×0.137 0.157×0.157 3V SPI SH1107 No
256×64 WEA025664A COG+PCB 2.08 51.18×12.78 0.18×0.18 0.2×0.2 3V SPI SSD1362 Support
128×64 WEF012864H COG+FR 2.42 55.01×27.49 0.40×0.40 0.43× 0.43 3V 6800,8080,SPI,I2C SSD1309 No
128×64 WEF012864Q COG+FR 2.7 61.41×30.69 0.45×0.45 0.48×0.48 3V 6800,8080,SPI,I2C SSD1309 No
128×32 WEP012832A COG+PCB+FR 2.23 55.018×13.098 0.408×0.388 0.43×0.41 3V 6800,8080,SPI,I2C SSD1305 No
128×64 WEP012864AJ(8080) COG+PCB+FR 2.42 55.01×27.49 0.44×0.4 0.43×0.43 3V 8080 CH1116 No
128×64 WEP012864AJ(RS232) COG+PCB+FR 2.42 55.01×27.49 0.40×0.40 0.43×0.43 5V RS232 CH1116 No
256×64 WEX025664A COF 2.8 69.098×17.258 0.248×0.248 0.27×0.27 3V 6800,8080,SPI SSD1322 Support
256×64 WEX025664B COF 3.12 76.778×19.178 0.278×0.278 0.30×0.30 3V 6800,8080,SPI SSD1322 Support
256×64 WEX025664D COF 5.5 135.65×33.89 0.50×0.50 0.53×0.53 3V 6800,8080,SPI SSD1322 Support
