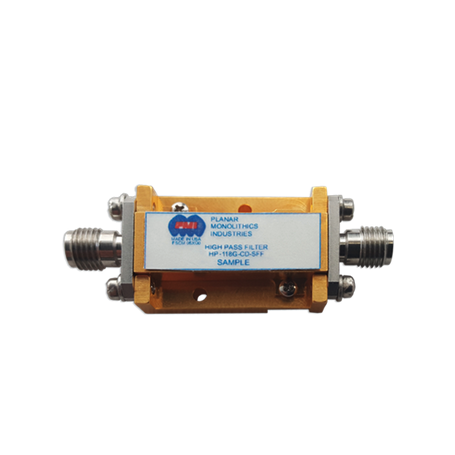

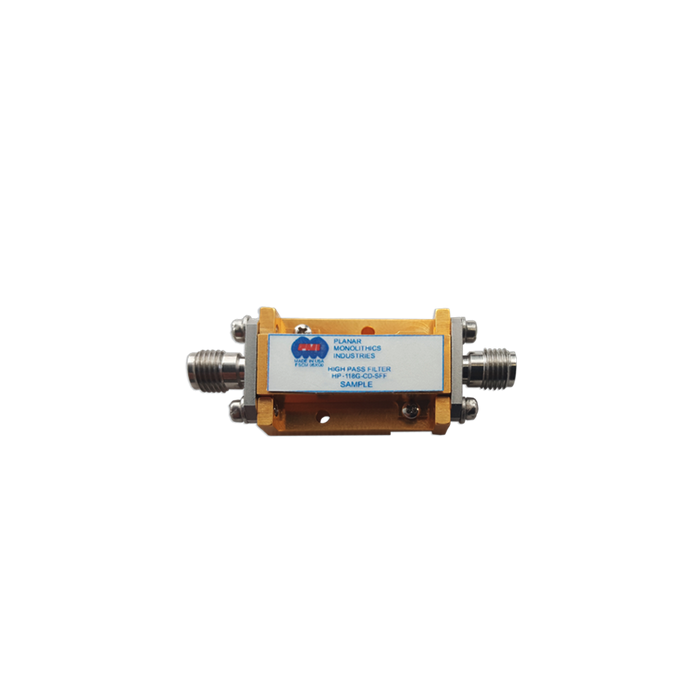

Filtre passe-haut de DC à 60 GHz : Série HP Agrandir l'image

Filtre passe-haut de DC à 60 GHz : Série HP | PLANAR MONOLITHICS INDUSTRIES (PMI)

Plus de 15 références disponibles

Plus de détails

Description

Références et spécifications :

Part Number Status Passband Cut-Off Frequency Passband Insertion Loss
HP2D2G-1575-SFF Preliminary 2200 MHz TO 5300 MHz 2200 MHz 0.5 dB TYP / 1.0 dB MAX
HP-118-CD-SFF Preliminary 1.0 to 18.0 GHz 1.0 GHz 4 dB Max (@ 1 GHz)
2 dB Max (2 to 18 GHz)
HP500-450-3A-SFF Active 0.5 to 5.0 GHz 0.5 GHz 1 dB max.
6HP2G-1D95G-CD-SFF Active 2.0 to 18.0 GHz 2.0 GHz 0.5 dB max.
HP-800-600-S-S-3A Active 0.8 to 5.0 GHz 0.8 GHz 0.5 dB MAX.
HP-10M18G-PE2-SFF Active 0.01 to 18.0 GHz 0.01 GHz 1.5 dB typ.
HP8G-7D8G-CD-SMF Active 8.0 to 22.0 GHz 7.8 GHz @ 3 dB 1.5 dB Max
HP3360-185FF Preliminary 33.0 to 60.0 GHz 33.0 GHz 2.5 dB max.
HP0R3G-18G-CD-SFF Active 0.3 to 18 GHz 0.3 GHz 2 dB Typ
HP10G40G-292FF Preliminary 10.0 to 40.0 GHz 10.0 GHz 2 dB max.
HP-26D5G-40G-CD- 292FM Preliminary 26.5 to 40.0GHz 26.5GHz 2dB max
7HP-500-2000-3A-SMF Preliminary 0.5 to 2.0 GHz 0.5 GHz <=-1 dB max.
HP20G-19D5-CD-SS Active 18 to 35 GHz 17.2 GHz 1.5dB
HP-2G-1780-SMA-FM Preliminary 2.0 to 18.0 GHz 2.0 GHz 0.5dB typ
7HP-800-600-3A-SMF Active 0.8 to 10 GHz 0.78 GHz 1.0 dB - Measured 0.81 dB
HP-26D5G-40G-CD- 292FF Active 26.5 to 40.0 GHz 26.5 GHz 2.0 dB Max - Measured 0.52 dB
HPF130-140-NFF-50W Active 0.13 to 0.55 GHz 0.13 GHz 1.0 dB
HPF18G-DC15G Active 18.0 to 26.5 GHz 18.0 GHz 1.5 dB Max - Measured 0.9 dB
HP20G-19D5G-CD- 292FF Active 20 to 40 GHz 20 GHz @ 1dB 1.5 dB - Measured 0.6 dB
HP800-600-3A-SS Active 0.8 to 5 GHz 0.6 GHz 0.5 dB Max - Measured 0.5 dB
HP10G-9D7-CD-292FF Active 10.0 to 27.0 GHz 9.7 GHz 1.5 dB Max - Measured 0.7 dB
HP10G-9D7-CD-SS Active 10.0 to 27.0 GHz 9.7 GHz 1.5 dB Max
HP8G-7D8G-CD-SFF Active 8.0 to 22.0 GHz 7.8 GHz 1.5 dB Max - Measured 1.36 dB
HP19G40G-292FF Preliminary 19.0 to 40.0 GHz 19.0 GHz 2.0 dB typ., 2.5 dB
HP2G-1780-CD-SS- ROHS Active 2.0 to 18.0 GHz 1.78 GHz 0.5 dB Typ
HPF-4G18G-CD-SFF Active 6.0 to 18.0 GHz 5.5 GHz 1.5 dB Max - Measured 0.4 dB
HP2G-1780-CD-SS Active 2 to 18 GHz 1.78 GHz 0.5 dB Typ - Measured 0.61 dB Max
HP2G-1780-CD-SS- OPT2200 Active 2.5 to 18 GHz 2.5 GHz 0.5 dB Typ 1 dB Max
HP0R5G-18G-CD-SFF Active 0.5 to 18 GHz 0.5 GHz 0.5 GHz: 5 dB Max
1 to 16 GHz: 2 dB Max
18 to 16 GHz: 3 dB Max
