Qorvo offre une large gamme de transistors discrets en nitrure de gallium (GaN) avec différents niveaux de puissance, de tension et de fréquence, à la fois sous forme de puce et de boîtier. Nos produits offrent les hautes performances du GaN ainsi que la commodité d'un conditionnement standard, ce qui accélère la conception et la fabrication, le tout soutenu par une fiabilité de premier ordre.
Caractéristiques principales :
Applications typiques :
Références et spécifications :
Part # | Description | Frequency Min MHz |
Frequency Max MHz |
Gain dB |
Psat dBm |
Drain Efficiency % |
Vd V |
Idq mA |

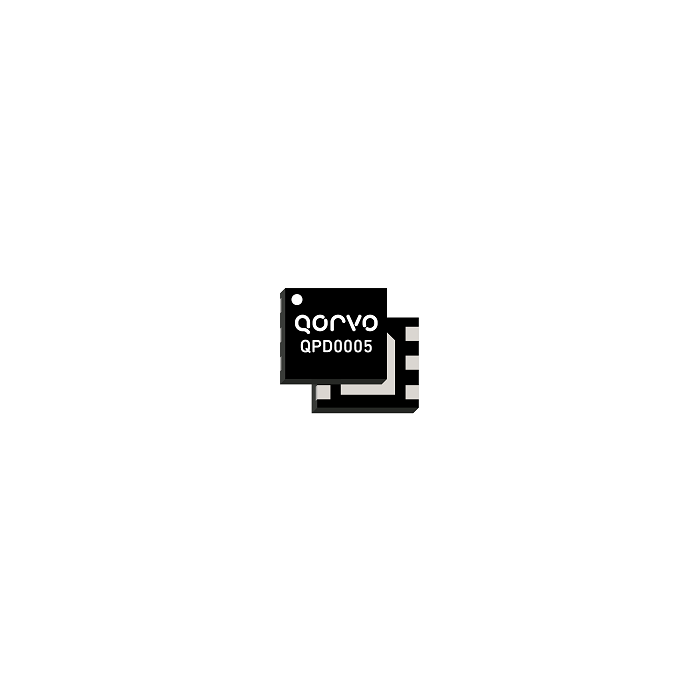

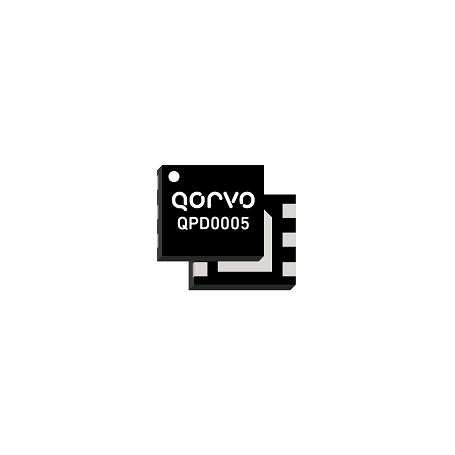

QPD0005 | 2.5 - 5.0 GHz, 8 Watt, 48 Volt GaN RF Transistor | 2,500 | 5,000 | 18.8 | 39.4 | 72.9 | 48 | 12 |
QPD0005M | 6 Watt, 48 Volt, 2.5 - 5.0 GHz, GaN RF Transistor | 2,500 | 5,000 | 18.6 | 37.7 | 74.1 | 48 | 20 |
QPD0006 | 13.5 Watt, 48 Volt, 2.5 - 5.0 GHz, GaN on SiC RF Transistor | 2,500 | 5,000 | 16 | 41.3 | 75 | 48 | 40 |
QPD0007 | DC - 5 GHz, 20 Watt, 48 Volt, GaN RF Transistor | DC | 5,000 | 19 | 43 | 73 | 48 | 32.5 |
QPD0009J | 15 Watt / 30 Watt, 48 Volt, 3.4 - 3.6 GHz, Asymmetric Doherty | 3,400 | 3,600 | 14 | 47 | 54.5 | 48 | 32.5 |
QPD0010 | 2.5 - 2.7 GHz, 40 Watt / 80 Watt, 48 Volt Asymmetric Doherty | 2,500 | 2,700 | 15 | 50.5 | 55 | 48 | 65 |
QPD0011 | 3.3 - 3.6 GHz, 30 Watt / 60 Watt, 48 Volt Asymmetric Doherty | 3,300 | 3,600 | 13.3 | 49.5 | 48 | 48 | 65 |
QPD0012 | 20W/40W, 48V, 2500-2700 MHz Asymmetric Doherty Amplifier | 2,500 | 2,700 | 14.8 | 47.3 | 59 | 48 | 40 |
QPD0020 | DC - 6 GHz, 35 Watt, 48 Volt GaN RF Power Transistor | DC | 6,000 | 18.8 | 45.4 | 77.8 | 48 | 30 |
QPD0030 | DC - 5 GHz, 45 Watt, 48 Volt GaN RF Power Transistor | DC | 5,000 | 22.3 | 46.9 | 48 | 85 | |
QPD0050 | DC - 3.6 GHz, 75 Watt, 48 Volt GaN RF Power Transistor | DC | 3,600 | 22.5 | 48.7 | 48 | 130 | |
QPD0060 | DC - 3.6 GHz, 90 Watt, 48 Volt GaN RF Power Transistor | DC | 3,600 | 25 | 49.5 | 48 | 150 | |
QPD1000 | 0.03 - 1.215 GHz, 15 Watt, 28 Volt GaN RF Input-Matched Transistor | 30 | 1,215 | 19 | 43.8 | 28 | 50 | |
QPD1003 | 1.2 - 1.4 GHz, 500 Watt, 50 Volt, GaN RF IMFET | 1,200 | 1,400 | 19.9 | 57.3 | 50 | 750 | |
QPD1004 | 30 - 1200 MHz, 25 Watt, 50 Volt GaN RF Input-Matched Transistor | 30 | 1,200 | 20.8 | 50 | 50 | ||
QPD1006 | 450 Watt, 50 Volt, 1.2 - 1.4 GHz GaN IMFET | 1,200 | 1,400 | 17.5 | 54.9 | 45 | 750 | |
QPD1008 | DC - 3.2 GHz, 125 Watt, 50 Volt GaN RF Power Transistor | DC | 3,200 | > 17 | 52 | 50 | 260 | |
QPD1008L | DC - 3.2 GHz, 125 Watt, 50 Volt GaN RF Power Transistor | DC | 3,200 | > 17 | 52 | 50 | 260 | |
QPD1009 | DC - 4 GHz, 15 Watt, 50 Volt GaN RF Transistor | DC | 4,000 | 24 | 42.3 | 50 | 26 | |
QPD1010 | DC - 4 GHz, 10 Watt, 50 Volt GaN RF Transistor | DC | 4,000 | 24.7 | 40.4 | 50 | 18 | |
QPD1011 | 7 Watt, 50 Volt, 0.03 - 1.2 GHz, GaN RF Input-Matched Transistor | 30 | 1,200 | 21 | 39.4 | 50 | 20 | |
QPD1013 | DC - 2.7 GHz, 150 Watt, 65 Volt GaN RF Transistor | DC | 2,700 | 21.8 | 65 | 240 | ||
QPD1014 | 15 Watt, 50 Volt, 0.03 - 1.2 GHz, GaN RF Input-Matched Transistor | 30 | 1,200 | 18.4 | 41 | 50 | 25 | |
QPD1015 | DC - 3.7 GHz, 65 Watt, 50 V GaN RF Power Transistor | DC | 3,700 | 20 | 48.5 | 50 | 65 | |
QPD1015L | DC - 3.7 GHz, 65 Watt, 50 V GaN RF Power Transistor | DC | 3,700 | 20 | 48.5 | 50 | 65 | |
QPD1016 | 500 Watt, 50 Volt, DC - 1.7 GHz, GaN RF Transistor | DC | 1,700 | 23.9 | 58.3 | 50 | 1,000 | |
QPD1016L | 500 Watt, 50 Volt, DC - 1.7 GHz, GaN RF Transistor | DC | 1,700 | 15 | 57.3 | 67 | 50 | 1,000 |
QPD1017 | 3.1 - 3.5 GHz, 450 Watt, 50 V GaN RF IMFET | 3,100 | 3,500 | 16.5 | 56.6 | 50 | 750 | |
QPD1018 | 500 Watt, 50 Volt, 2.7 - 3.1 GHz, GaN RF IMFET | 2,700 | 3,100 | 17.7 | 57.6 | 50 | 750 | |
QPD1019 | 500 Watt, 50 Volt, 2.9 - 3.3 GHz, GaN RF IMFET | 2,900 | 3,300 | 15.5 | 57.7 | 50 | 750 | |
QPD1020 | 30 Watt, 50 Volt, 2.7 - 3.5 GHz, GaN RF Input-Matched Transistor | 2,700 | 3,500 | 18.4 | 45 | 50 | 52.5 | |
QPD1022 | DC - 12 GHz, 10 Watt, 32 V GaN RF Transistor | DC | 12,000 | 24 | 32 | 50 | ||
QPD1025 | 1800 Watt, 65 Volt, .96 - 1.215 GHz, GaN RF Input-Matched Transistor | 960 | 1,215 | 22.5 | 62.7 | 65 | 1,500 | |
QPD1025L | 1800 Watt, 65 Volt, .96 - 1.215 GHz, GaN RF Input-Matched Transistor | 960 | 1,215 | 22.5 | 62.7 | 65 | 1,500 | |
QPD1026L | 1300 Watt, 65 Volt, 420 - 450 MHz GaN RF Input-Matched Transistor | 420 | 450 | 25.9 | 61.2 | 65 | 1,500 | |
QPD1028 | 1.2 - 1.4 GHz, 750 Watt, 65 Volt, GaN on SiC RF Transistor | 1,200 | 1,400 | 18 | 59 | 70 | 65 | 750 |
QPD1028L | 1.2 - 1.4 GHz, 750 Watt, 65 Volt GaN on SiC RF Transistor | 1,200 | 1,400 | 18 | 59 | 70 | 65 | 750 |
QPD1029L | 1500 Watt, 65 Volt, 1.2 - 1.4 GHz, GaN RF Input-Matched Transistor | 1,200 | 1,400 | 61.8 | 65 | 1,500 | ||
QPD1425 | 1.2 - 1.4 GHz, 375 Watt, 65 Volt, GaN on SiC RF Transistor | 1.2 | 1.4 | 17 | 56.3 | 75 | 65 | 430 |
QPD1425L | 1.2 - 1.4 GHz, 375 Watt, 65 Volt , GaN on SiC RF Transistor | 1.2 | 1.4 | 17 | 56.3 | 75 | 65 | 430 |
QPD1881L | 400 Watt, 50 Volt, 2.7 - 2.9 GHz, GaN RF Power Transistor | 2,700 | 2,900 | 21.2 | 56.3 | 50 | 700 | |
QPD9300 | 30 Watt, 28 Volt, 9.2 - 9.7 GHz, GaN RF IMFET | 9,200 | 9,700 | 9.1 | 34.3 | 48.6 | 25 | 240 |
T1G4020036-FL | DC - 3.5 GHz, 2 x 200 Watt, 50 Volt GaN RF Power Transistor | DC | 3,500 | 18.1 | 2 x 53.0 | 67.6 | 50 | 520 |
T1G4020036-FS | DC - 3.5 GHz, 2 x 200 Watt, 50 Volt GaN RF Power Transistor | DC | 3,500 | 18.1 | 2 x 53.0 | 67.6 | 50 | 520 |
T2G4005528-FS | DC - 3.5 GHz, 55 Watt, 28 V GaN RF Power Transistor | DC | 3,500 | 16 | 47.2 | 52 | 28 | 200 |
T2G6000528-Q3 | DC - 6 GHz, 10 Watt, 28 V GaN RF Power Transistor | DC | 6,000 | 17 | 40 | 53 | 28 | 50 |
T2G6001528-Q3 | DC - 6 GHz, 15 Watt, 28 V GaN RF Power Transistor | DC | 6,000 | 15.5 | 42 | 72 | 28 | 100 |
T2G6001528-SG | DC - 6 GHz, 15 Watt, 28 Volt GaN RF Power Transistor | DC | 6,000 | 15.5 | 42 | 72 | 28 | 100 |
T2G6003028-FL | DC - 6 GHz, 30 Watt, 28 V GaN RF Power Transistor | DC | 6,000 | 14 | 45 | 28 | 200 | |
T2G6003028-FS | DC - 6 GHz, 30 Watt, 28 V GaN RF Power Transistor | DC | 6,000 | 14 | 45 | 28 | 200 | |
TGF2023-2-01 | DC - 18 GHz, 6 Watt Discrete Power GaN on SiC HEMT | DC | 18,000 | 18 | 38 | 12 to 32 | 25 to 125 | |
TGF2023-2-02 | DC - 18 GHz, 12 Watt Discrete Power GaN on SiC HEMT | DC | 18,000 | 21 | 40.1 | 12 to 32 | 50 to 250 | |
TGF2023-2-05 | DC - 18 GHz, 25 Watt Discrete Power GaN on SiC HEMT | DC | 18,000 | 18 | 43 | 12 to 32 | 100 to 500 | |
TGF2023-2-10 | DC - 14 GHz, 50 Watt Discrete Power GaN on SiC HEMT | DC | 14,000 | 19.8 | 47.3 | 12 to 32 | 200 to 1,000 | |
TGF2023-2-20 | DC - 14 GHz, 100 Watt Discrete Power GaN on SiC HEMT | DC | 14,000 | 19.2 | 50.5 | 12 to 32 | 400 to 2,000 | |
TGF2819-FL | DC - 4.0 GHz, 200 Watt Peak, 40 Watt Avg.Power, 50 Volt, GaN RF Power Transistor | DC | 4,000 | > 14 | 51 | 50 | 250 | |
TGF2819-FS | DC - 4.0 GHz, 200 Watt Peak, 40 Watt Avg. Power, 50 Volt, GaN RF Power Transistor | DC | 4,000 | > 14 | 51 | 50 | 250 | |
TGF2929-FL | DC - 3.5 GHz, 100 Watt, 28 V GaN RF Power Transistor | DC | 3,500 | > 14 | 50.3 | 28 | 260 | |
TGF2929-HM | DC - 3.5 GHz, 100 Watt, 28 Volt GaN RF Power Transistor | DC | 3,500 | 17.4 | 51.2 | 28 | 260 | |
TGF2933 | DC - 25 GHz, 7 Watt, 28 V GaN RF Transistor | DC | 25,000 | 15 | 38.6 | 28 | 80 | |
TGF2954 | DC - 12 GHz, 27 Watt Discrete Power GaN on SiC HEMT | DC | 12,000 | 19.6 | 44.5 | 32 | 100 | |
TGF2965-SM | 0.03 - 3 GHz, 5 Watt, 32 V, 50 Ohm GaN RF Input-Matched Transistor | 30 | 3,000 | 18 | 37.8 | 32 | 25 | |
TGF2977-SM | DC - 12 GHz, 5 Watt, 32 V GaN RF Transistor | DC | 12,000 | 13 | 37.8 | 32 | 25 | |
TGF2978-SM | DC - 12 GHz, 20 Watt, 32 V GaN RF Transistor | DC | 12,000 | 11 | 42.8 | 32 | 100 | |
TGF2979-SM | DC - 12 GHz, 25 Watt, 32 Volt GaN RF Transistor | DC | 12,000 | 11 | 43.4 | 32 | 150 | |
TGF3015-SM | 0.03 - 3.0 GHz, 10 Watt, 32 Volt GaN RF Input-Matched Transistor | 30 | 3,000 | 17 | 40.4 | 32 | 50 | |
TGF3020-SM | 4 - 6 GHz, 5 Watt, 32 V, 50 Ohm GaN RF Input-Matched Transistor | 4,000 | 6,000 | 12.7 | 38.3 | 32 | 25 | |
TGF3021-SM | 0.03 - 4.0 GHz, 30 Watt, 32 V GaN RF Transistor | 30 | 4,000 | 19 | 45 | 32 | 65 |
