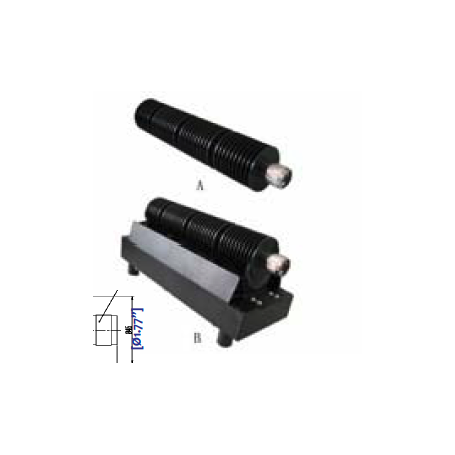

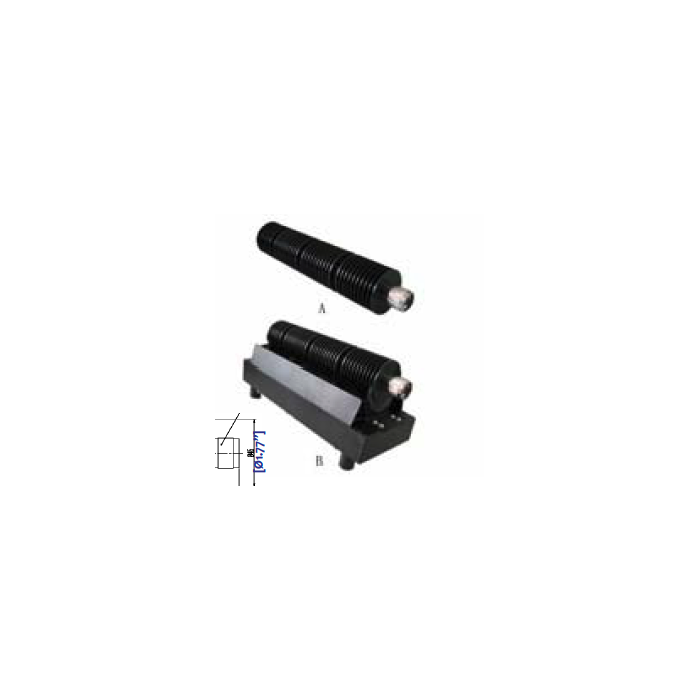

Charge coaxiale DC - 67 GHz, 0,5 - 2000 W : Série RFS Agrandir l'image

Charge coaxiale DC - 67 GHz, 0,5 - 2000 W : Série RFS | RF LAMBDA

Plus de 50 références disponibles

Plus de détails

Description

Références et spécifications :

Part Number  Description Frequency Range
(GHz)		 VSWR (Max) Average Power CW Watt
(W)		 Peak Power Handle
(kW)		 Connector (Type) Packaging
RFST150G01 Cubic Load DC~1.00 1.20 150.00 10KW 5μs 0.5% N, 7/16 Coaxial
RFST100G02 Cubic Load DC~2.00 1.20 100.00 5KW 5μs 0.5% SMA, TNC, N Coaxial
RFST200G02 Cubic Load DC~2.00 1.20 200.00 10KW 5μs 0.5% N, 7/16 Coaxial
RFST250G02 Cubic Load DC~2.00 1.30 250.00 10KW 5μs 0.5% N, 7/16 Coaxial
RFST500G02 Cubic Load DC~2.00 1.25 500.00 10KW 5μs 0.5% N, 7/16 Coaxial
RFST800G02 Cubic Load DC~2.00 1.35 800.00 20KW 5μs 0.5% N, 7/16 Coaxial
RFST1000G02 Cubic Load DC~2.00 1.15 1000.00 5KW 5μs 8% N, 7/16 Coaxial
RFST80G03R Cylinder Load DC~3.00 1.20 80.00 5KW 5μs 0.5% N Coaxial
RFST80G03 Cubic Load DC~3.00 1.10 80.00 5KW 5μs 0.5% N Coaxial
RFST100G03 Cubic Load DC~3.00 1.10 100.00 5KW 5μs 0.5% N Coaxial
RFST100G03R Cylinder Load DC~3.00 1.20 100.00 5KW 5μs 0.5% N Coaxial
RFST150G03R Cylinder Load DC~3.00 1.25 150.00 10KW 5μs 0.5% N Coaxial
RFST300G3A Cubic Load DC~3.00 1.20 300.00 10KW 5μs 0.5% N, 7/16 Coaxial
RFST400G3A Cubic Load DC~3.00 1.20 400.00 10KW 5μs 0.5% N, 7/16 Coaxial
RFST150G03 Cubic Load DC~3.00 1.25 150.00 10KW 5μs 0.5% N Coaxial
RFSTB50G03 Embedded Load DC~3.00 1.25 50.00 5KW 5.s 0.5% SMA Coaxial
RFSTB75G03 Embedded Load DC~3.00 1.10 75.00 5KW 5.s 0.5% N,SMA Coaxial
RFSTB150G03 Embedded Load DC~3.00 1.10 150.00 5KW 5.s 0.5% N,SMA Coaxial
RFST2G04 Cubic Load DC~4.00 1.20 2.00 0.5KW 5μs 0.5 SMA,N,TNC,BNC Coaxial
RFST5G04 Cubic Load DC~4.00 1.20 5.00 0.5KW 5μs 0.5 SMA,N,TNC,BNC Coaxial
RFST25G04 Cylinder Load DC~4.00 1.20 25.00 1KW 5μs 0.5% SMA,N,TNC,7/16 Coaxial
RFST50G04 Cubic Load DC~4.00 1.20 50.00 2KW 5μs 0.5% SMA,N,TNC,7/16 Coaxial
RFST80G04 Cubic Load DC~4.00 1.25 80.00 5KW 5μs 0.5% N, TNC, 7/16 Coaxial
RFST100G04 Cubic Load DC~4.00 1.25 100.00 5KW 5μs 0.5% N, TNC, 7/16 Coaxial
RFST150G04 Cubic Load DC~4.00 1.25 150.00 10KW 5μs 0.5% N, 7/16 Coaxial
RFST200G04 Cubic Load DC~4.00 1.25 200.00 10KW 5μs 0.5% N, 7/16 Coaxial
RFST250G04 Cubic Load DC~4.00 1.30 250.00 10KW 5μs 0.5% N, 7/16 Coaxial
RFST300G04 Cubic Load DC~4.00 1.40 300.00 10KW 5μs 0.5% N, 7/16 Coaxial
RFST400G04 Cubic Load DC~4.00 1.40 400.00 10KW 5μs 0.5% N, 7/16 Coaxial
RFST500G04 Cubic Load DC~4.00 1.50 500.00 10KW 5μs 0.5% N, 7/16 Coaxial
RFST800G04 Cubic Load DC~4.00 1.45 800.00 20KW 5μs 0.5% N, 7/16 Coaxial
RFST1000G04 Cubic Load DC~4.00 1.15 1000.00 5KW 5μs 8% N, 7/16 Coaxial
RFSTB100G04 Embedded Load DC~4.00 1.25 100.00 5KW 5.s 0.5% N,SMA Coaxial
RFSTB200G04 Embedded Load DC~4.00 1.25 200.00 5KW 5.s 0.5% N,SMA Coaxial
RFSTB300G04 Embedded Load DC~4.00 1.25 300.00 10KW 5.s 0.5% N,SMA Coaxial
RFSTB200G4A Embedded Load DC~4.00 1.30 200.00 5KW 5.s 0.5% N Coaxial
RFST2G04S Cylinder Load DC~4.00 1.20 2.00 0.5KW 5.s 0.5% SMA Coaxial
RFST50G06 Fin Shape Load DC~6.00 1.20 50.00 5KW 5μs 0.5% N, 7/16 Coaxial
RFST80G06R Cylinder Load DC~6.00 1.25 80.00 5KW 5μs 0.5% N Coaxial
RFST80G06 Cubic Load DC~6.00 1.20 80.00 5KW 5μs 0.5% N Coaxial
RFST100G06 Cubic Load DC~6.00 1.20 100.00 5KW 5μs 0.5% N Coaxial
RFST100G06R Cylinder Load DC~6.00 1.25 100.00 5KW 5μs 0.5% N Coaxial
RFST150G06 Fin Shape Load DC~6.00 1.20 150.00 5KW 5μs 0.5% N, 7/16 Coaxial
RFST150G06R Cylinder Load DC~6.00 1.30 150.00 10KW 5μs 0.5% N Coaxial
RFST200G06 Fin Shape Load DC~6.00 1.20 200.00 5KW 5μs 0.5% N, 7/16 Coaxial
RFST250G06 Fin Shape Load DC~6.00 1.20 250.00 5KW 5μs 0.5% N, 7/16 Coaxial
RFST300G06 Fin Shape Load DC~6.00 1.20 300.00 5KW 5μs 0.5% N, 7/16 Coaxial
RFST400G06 Fin Shape Load DC~6.00 1.30 400.00 5KW 5μs 0.5% N, 7/16 Coaxial
RFST500G06 Fin Shape Load DC~6.00 1.30 500.00 5KW 5μs 0.5% N, 7/16 Coaxial
RFST10G06 Cylinder Load DC~6.00 1.40 10.00 0.5KW 5μs 0.5 SMA Coaxial
RFST1000G06 Cubic Load DC~6.00 1.25 1000.00 5KW 5μs 8% N, 7/16 Coaxial
RFSTB50G06 Embedded Load DC~6.00 1.35 50.00 5KW 5.s 0.5% SMA Coaxial
RFSTB75G06 Embedded Load DC~6.00 1.20 75.00 5KW 5.s 0.5% N,SMA Coaxial
RFSTB150G06 Embedded Load DC~6.00 1.20 150.00 5KW 5.s 0.5% N,SMA Coaxial
RFST10G06S Cylinder Load DC~6.00 1.40 10.00 0.5KW 5.s 0.5% SMA Coaxial
RFST1000G06A Cubic Load DC~6.00 1.40 1000.00 10KW 5μs 10% N, 7/16 Coaxial
RFST2G08D Cylinder Load DC~7.50 1.25 2.00 1KW 5μs 0.5% juil-16 Coaxial
RFST5G08D Cylinder Load DC~7.50 1.25 5.00 1KW 5μs 0.5% juil-16 Coaxial
RFST2G08 Cylinder Load DC~8.00 1.25 2.00 0.5KW 5μs 0.5 SMA,N,TNC,BNC Coaxial
RFST5G08 Cylinder Load DC~8.00 1.25 5.00 0.5KW 5μs 0.5 N Coaxial
RFST25G08 Cylinder Load DC~8.00 1.25 25.00 1KW 5μs 0.5% SMA,N,TNC,7/16 Coaxial
RFST50G08 Fin Shape Load DC~8.00 1.25 50.00 5KW 5μs 0.5% N, 7/16 Coaxial
RFST80G08R Cylinder Load DC~8.00 1.30 80.00 5KW 5μs 0.5% N Coaxial
RFST80G08 Cubic Load DC~8.00 1.25 80.00 5KW 5μs 0.5% N Coaxial
RFST100G08 Cubic Load DC~8.00 1.25 100.00 5KW 5μs 0.5% N Coaxial
RFST100G08R Cylinder Load DC~8.00 1.30 100.00 5KW 5μs 0.5% N Coaxial
RFST150G08 Fin Shape Load DC~8.00 1.25 150.00 5KW 5μs 0.5% N, 7/16 Coaxial
RFST150G08R Cylinder Load DC~8.00 1.35 150.00 10KW 5μs 0.5% N Coaxial
RFST200G08 Fin Shape Load DC~8.00 1.25 200.00 5KW 5μs 0.5% N, 7/16 Coaxial
RFST250G08 Fin Shape Load DC~8.00 1.25 250.00 5KW 5μs 0.5% N, 7/16 Coaxial
RFST300G08 Fin Shape Load DC~8.00 1.55 300.00 5KW 5μs 0.5% N, 7/16 Coaxial
RFST400G08 Fin Shape Load DC~8.00 1.45 400.00 5KW 5μs 0.5% N, 7/16 Coaxial
RFST500G08 Fin Shape Load DC~8.00 1.45 500.00 5KW 5μs 0.5% N, 7/16 Coaxial
RFST1000G08 Cubic Load DC~8.00 1.55 1000.00 5KW 5μs 8% N,7/16 Coaxial
RFSTB50G08 Embedded Load DC~8.00 1.25 50.00 5KW 5.s 0.5% N,SMA Coaxial
RFSTB75G08 Embedded Load DC~8.00 1.25 75.00 5KW 5.s 0.5% N,SMA Coaxial
RFSTB100G08 Embedded Load DC~8.00 1.25 100.00 5KW 5.s 0.5% N,SMA Coaxial
RFSTB150G08 Embedded Load DC~8.00 1.25 150.00 5KW 5.s 0.5% N,SMA Coaxial
RFSTB200G08 Embedded Load DC~8.00 1.45 200.00 5KW 5.s 0.5% N,SMA Coaxial
RFSTB300G08 Embedded Load DC~8.00 1.45 300.00 10KW 5.s 0.5% N,SMA Coaxial
RFST50G08C Cylinder Load DC~8.00 1.25 50.00 5KW 5μs 0.5% N, 7/16 Coaxial
RFST5G08S Cylinder Load DC~8.00 1.25 5.00 0.5KW 5μs 0.5 SMA, TNC, BNC Coaxial
RFST2G08S Cylinder Load DC~8.00 1.25 2.00 0.5KW 5.s 0.5% SMA Coaxial
RFST80G10 Cubic Load DC~10.00 1.35 80.00 5KW 5μs 0.5% N Coaxial
RFST100G10 Cubic Load DC~10.00 1.35 100.00 5KW 5μs 0.5% N Coaxial
RFST150G10 Fin Shape Load DC~10.00 1.35 150.00 5KW 5μs 0.5% N, 7/16 Coaxial
RFST200G10 Fin Shape Load DC~10.00 1.35 200.00 5KW 5μs 0.5% N, 7/16 Coaxial
RFST300G10 Fin Shape Load DC~10.00 1.35 300.00 5KW 5μs 0.5% N, 7/16 Coaxial
RFST400G10 Fin Shape Load DC~10.00 1.50 400.00 5KW 5μs 0.5% N, 7/16 Coaxial
RFST500G10 Fin Shape Load DC~10.00 1.55 500.00 5KW 5μs 0.5% N, 7/16 Coaxial
RFSTB50G10 Embedded Load DC~10.00 1.35 50.00 5KW 5.s 0.5% N,SMA Coaxial
RFSTB75G10 Embedded Load DC~10.00 1.35 75.00 5KW 5.s 0.5% N,SMA Coaxial
RFSTB150G10 Embedded Load DC~10.00 1.35 150.00 5KW 5.s 0.5% N,SMA Coaxial
RFST250G11 Fin Shape Load DC~10.50 1.35 250.00 5KW 5μs 0.5% N, 7/16 Coaxial
RFST10G12 Cylinder Load DC~12.00 1.40 10.00 0.5KW 5μs 0.5 SMA Coaxial
RFST300G12 Cubic Load DC~12.00 1.70 300.00 10KW 5μs 0.5% N Coaxial
RFST2G12S Cylinder Load DC~12.00 1.35 2.00 0.5KW 5.s 0.5% SMA Coaxial
RFST2G12 Cylinder Load DC~12.40 1.35 2.00 0.5KW 5μs 0.5 SMA,N,TNC,BNC Coaxial
RFST5G12 Cylinder Load DC~12.40 1.35 5.00 0.5KW 5μs 0.5 N Coaxial
RFST25G12 Cylinder Load DC~12.40 1.30 25.00 1KW 5μs 0.5% SMA,N,TNC,7/16 Coaxial
RFST50G12 Fin Shape Load DC~12.40 1.35 50.00 5KW 5μs 0.5% N, 7/16 Coaxial
RFST80G12R Cylinder Load DC~12.40 1.35 80.00 5KW 5μs 0.5% N Coaxial
RFST100G12R Cylinder Load DC~12.40 1.35 100.00 5KW 5μs 0.5% N Coaxial
RFST150G12R Cylinder Load DC~12.40 1.40 150.00 10KW 5μs 0.5% N Coaxial
RFST50G12C Cylinder Load DC~12.40 1.35 50.00 5KW 5μs 0.5% N, 7/16 Coaxial
RFST5G12S Cylinder Load DC~12.40 1.35 5.00 0.5KW 5μs 0.5 SMA, TNC, BNC Coaxial
RFST80G12C Cubic Load DC~12.40 1.35 80.00 5KW 5.s 0.5% N Coaxial
RFST2G18 Cylinder Load DC~18.00 1.30 2.00 0.5KW 5μs 0.5 SMA,N,TNC,BNC Coaxial
RFST5G18 Cylinder Load DC~18.00 1.30 5.00 0.5KW 5μs 0.5 N Coaxial
RFST25G18 Cylinder Load DC~18.00 1.35 25.00 1KW 5μs 0.5% SMA,N,TNC,7/16 Coaxial
RFST50G18 Fin Shape Load DC~18.00 1.55 50.00 5KW 5μs 0.5% N, 7/16 Coaxial
RFST80G18R Cylinder Load DC~18.00 1.45 80.00 5KW 5μs 0.5% N Coaxial
RFST80G18 Cubic Load DC~18.00 1.55 80.00 5KW 5μs 0.5% N Coaxial
RFST100G18 Cubic Load DC~18.00 1.55 100.00 5KW 5μs 0.5% N Coaxial
RFST100G18R Cylinder Load DC~18.00 1.45 100.00 5KW 5μs 0.5% N Coaxial
RFST150G18 Fin Shape Load DC~18.00 1.50 150.00 5KW 5μs 0.5% N, 7/16 Coaxial
RFST150G18R Cylinder Load DC~18.00 1.50 150.00 10KW 5μs 0.5% N Coaxial
RFST175G18 Fin Shape Load DC~18.00 1.30 175.00 3KW 5μs 0.5% N, 7/16 Coaxial
RFST200G18 Cylinder Load DC~18.00 1.30 200.00 3KW 5μs 0.5% N, 7/16 Coaxial
RFST10G18 Cylinder Load DC~18.00 1.40 10.00 0.5KW 5μs 0.5 SMA Coaxial
RFST300G18 Cylinder Load DC~18.00 1.70 300.00 10KW 5μs 0.5% N Coaxial
RFSTB50G18 Embedded Load DC~18.00 1.35 50.00 5KW 5.s 0.5% N,SMA Coaxial
RFSTB75G18 Embedded Load DC~18.00 1.55 75.00 5KW 5.s 0.5% N,SMA Coaxial
RFSTB100G18 Embedded Load DC~18.00 1.55 100.00 5KW 5.s 0.5% N,SMA Coaxial
RFSTB150G18 Embedded Load DC~18.00 1.55 150.00 5KW 5.s 0.5% N,SMA Coaxial
RFSTB200G18 Embedded Load DC~18.00 1.55 200.00 5KW 5.s 0.5% N,SMA Coaxial
RFSTB300G18 Embedded Load DC~18.00 1.55 300.00 10KW 5.s 0.5% N,SMA Coaxial
RFST50G18C Cylinder Load DC~18.00 1.55 50.00 5KW 5μs 0.5% N, 7/16 Coaxial
RFST5G18S Cylinder Load DC~18.00 1.30 5.00 0.5KW 5μs 0.5 SMA, TNC, BNC Coaxial
RFST1G18SM Cylinder Load DC~18.00 1.15 1.00 0.1KW 5.s 0.5% SMA Coaxial
RFST2G18S Cylinder Load DC~18.00 1.30 2.00 0.5KW 5.s 0.5% SMA Coaxial
RFST5G26 Cylinder Load DC~26.50 1.30 5.00 0.5KW 5μs 0.5 SMA Coaxial
RFST2G26 Cylinder Load DC~26.50 1.30 2.00 0.25KW 5μs 0. SMA Coaxial
RFST10G26 Cylinder Load DC~26.50 1.40 10.00 0.5KW 5μs 0.5 SMA Coaxial
RFST25G26V Cylinder Load DC~26.50 1.25 25.00 0.5KW 5µs 0.5% 3.5mm Coaxial
RFST10G26V Cylinder Load DC~26.50 1.20 10.00 0.5KW 5µs 0.5% 3.5mm Coaxial
RFST5G26V Cylinder Load DC~26.50 1.20 5.00 0.5KW 5µs 0.5% 3.5mm Coaxial
RFST2G26V Cylinder Load DC~26.50 1.20 2.00 0.5KW 5µs 0.5% 3.5mm Coaxial
RFST50G26V Cylinder Load DC~26.50 1.30 50.00 0.5KW 5µs 0.5% 3.5mm Coaxial
RFST25G26S Cylinder Load DC~26.50 1.30 25.00 0.5KW 5µs 0.5% SMA Coaxial
RFST50G26S Cylinder Load DC~26.50 1.30 50.00 0.5KW 5µs 0.5% SMA Coaxial
RFST50G40K Cylinder Load DC~40.00 1.40 50.00 0.2KW 5μs 2.5% 2.92mm Coaxial
RFST5G40 Cylinder Load DC~40.00 1.40 5.00 0.25KW 5μs 0. 2.92mm Coaxial
RFST2G40 Cylinder Load DC~40.00 1.40 2.00 0.5KW 5μs 0.5 2.92mm Coaxial
RFST20G40K Cylinder Load DC~40.00 1.35 20.00 0.2KW 5µs 0.5% 2.92mm Coaxial
RFST10G40K Cylinder Load DC~40.00 1.30 10.00 0.2KW 5µs 0.5% 2.92mm Coaxial
RFST1G40KM Cylinder Load DC~40.00 1.20 0.50 0.1KW 5.s 0.5% 2.92mm Coaxial
RFST2G40A Cylinder Load DC~40.00 1.40 2.00 0.5KW 5.s 0.5% 2.92mm Coaxial
RFST2G50A Cylinder Load DC~50.00 1.40 2.00 0.2KW 5μs 0.5% 2.4mm Coaxial
RFST1G67VF Cylinder Load DC~67.00 1.15 0.50 20W 5µs 0.5% 1.85mm Female Coaxial
RFST1G67VM Cylinder Load DC~67.00 1.15 0.50 20W 5µs 0.5% 1.85mm Male Coaxial
