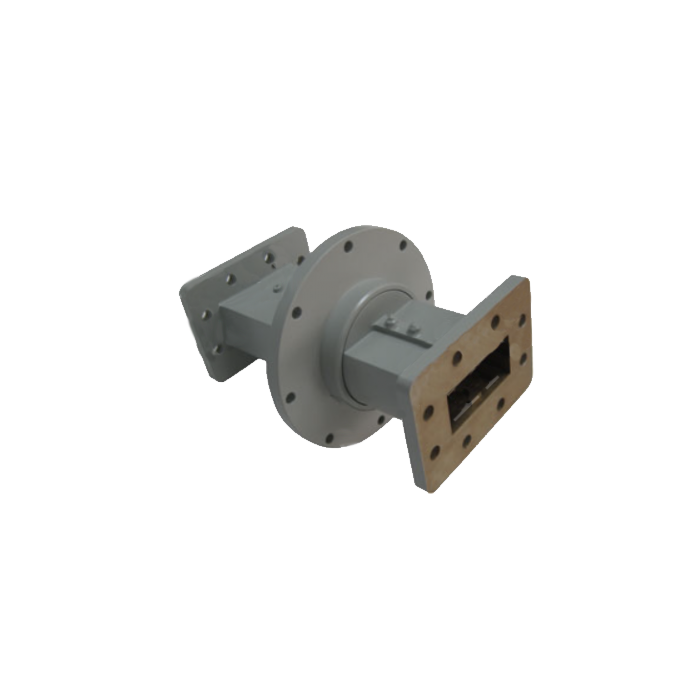

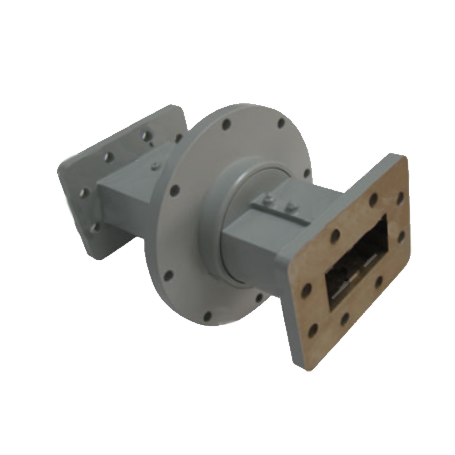

Description
Features :
- Frequency Range : 2,60 - 40 GHz
- Insertion Loss : 0.3 - 1.0 dB
- VSWR : 1,20 - 1,40
- Average Power (W) : 30 - 2000
- Peak Power (kW) : 0.3 - 600
- Net Weight : Around 0.9 kg
Références et spécificaions :
P/N |
Freq. Range (GHz) |
WG |
Band Width (MHz) |
VSWR |
Insertion Loss (dB) |
Average Power (W) |
Peak Power (KW) |
Flange Type |
Material |
284WRJI |
2.60-3.95 |
WR284 |
200 |
1.20 |
0.3 |
600 |
600 |
FDP32/FDM32 |
Al/Cu |
229WRJI |
3.30-4.90 |
WR229 |
200 |
1.20 |
0.3 |
600 |
600 |
FDP40/FDM40 |
Al/Cu |
187WRJI |
3.95-5.85 |
WR187 |
200 |
1.20 |
0.3 |
600 |
600 |
FDP48 |
Al/Cu |
187WRJI-06A |
4.40-4.60 |
WR187 |
Full |
1.20 |
0.3 |
600 |
600 |
FDP48 |
Al/Cu |
187WRJI-06B |
4.80-5.00 |
WR187 |
Full |
1.20 |
0.3 |
600 |
600 |
FDP48 |
Al/Cu |
159WRJI |
4.90-7.05 |
WR159 |
300 |
1.25 |
0.3 |
500 |
150 |
FDP58/FDM58 |
Al/Cu |
137WRJI |
5.85-8.20 |
WR137 |
300 |
1.25 |
0.3 |
500 |
150 |
FDP70/FDM70 |
Al/Cu |
112WRJI |
7.05-10.0 |
WR112 |
300 |
1.25 |
0.3 |
400 |
150 |
FBP84 |
Al/Cu |
112WRJI-06A |
7.05-10.0 |
WR112 |
Full |
1.25 |
0.3 |
400 |
150 |
FBP84 |
Al |
112WRJI_Cu_BEBE |
7.05-10.0 |
WR112 |
Full |
1.25 |
0.5 |
2000 |
150 |
FBE84 |
Cu |
112WRJI-06B |
7.50-8.50 |
WR112 |
Full |
1.25 |
0.3 |
400 |
150 |
FBP84 |
Al |
112WRJI-06D |
8.00-8.50 |
WR112 |
Full |
1.25 |
0.3 |
400 |
150 |
FBP84 |
Al |
112WRJI-06C |
8.50-10.0 |
WR112 |
Full |
1.25 |
0.3 |
400 |
150 |
FBP84 |
Al |
90WRJI |
8.20-12.4 |
WR90 |
300 |
1.25 |
0.3 |
400 |
150 |
FBP100/FBM100/FBE100 |
Al/Cu |
90WRJI-06A |
8.50-10.0 |
WR90 |
Full |
1.15 |
0.15 |
400 |
150 |
FBP100 |
Al |
75WRJI |
10.0-15.0 |
WR75 |
500 |
1.25 |
0.3 |
200 |
10 |
FBP120/FBM120/FBE120 |
Al/Cu |
75WRJI-26A |
12.0-15.0 |
WR75 |
Full |
1.35 |
0.3 |
750 |
5 |
FBP120 |
Al |
62WRJI |
12.4-18.0 |
WR62 |
1000 |
1.30 |
0.4 |
100 |
4 |
FBP140/FBM140/FBE140 |
Al/Cu |
62WRJI-26C |
16.0-17.0 |
WR62 |
Full |
1.30 |
0.4 |
100 |
4 |
FBP140 |
Al |
51WRJI_Cu |
15.0-22.0 |
WR51 |
1000 |
1.30 |
0.4 |
100 |
3 |
FBP180/FBM180/FBE180 |
Cu/Al |
42WRJI_Cu |
18.0-26.5 |
WR42 |
2000 |
1.40 |
1.0 |
50 |
0.5 |
FBP220/FBM220/FBE220 |
Cu/Al |
34WRJI_Cu |
22.0-33.0 |
WR34 |
2000 |
1.40 |
1.0 |
30 |
0.3 |
FBP260/FBM260/FBE260 |
Cu/Al |
28WRJI_Cu |
26.5-40.0 |
WR28 |
2000 |
1.40 |
1.0 |
30 |
0.3 |
FBP320/FBM320/FBE320 |
Cu/Al |
