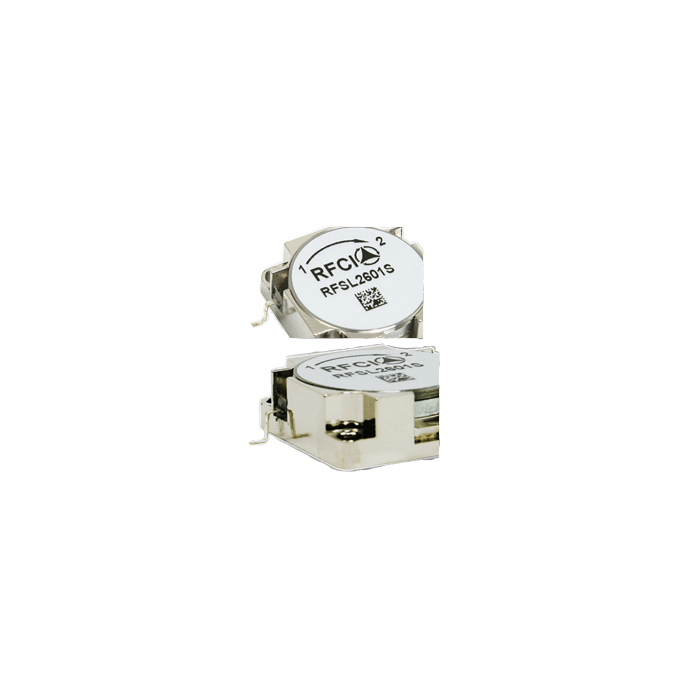

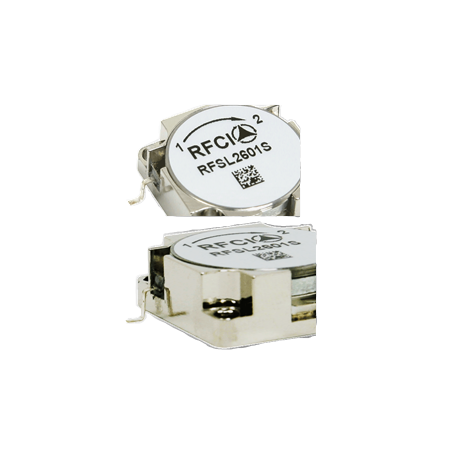

Parfaitement applicables à la fabrication en grand volume, les Circulateurs SMD RFCI sont conçus pour répondre aux exigences des systèmes de communication commerciaux pour des applications dans les amplificateurs de puissance linéaires à haute performance. Ces boîtiers sont idéalement adaptés à l'utilisation de la soudure par refusion ou des vis de montage du dispositif supérieur à travers le PCB.
Applications :
Références et spécifications :
SMD Gullwing Circulators, Flange Mount Thru Mounting Holes (25.4mm Package Size) | ||||||||
Part Number | Frequency Range Min | Frequency Range Max | Insertion Loss | Isolation | Return Loss | Forward Power P/CW | Rev Power | Operating Temperature |
RFCR2142S | 728 | 768 | 0.22/0.30 | 23/20 | 23/20 | 500/100 | 100 | -40 to +85°C |
RFCR2155S | 773 | 803 | 0.22/0.30 | 23/20 | 23/20 | 500/100 | 100 | -40 to +85°C |
RFCR2144S | 790 | 960 | 0.35/0.50 | 20/18 | 20/18 | 500/100 | 100 | -40 to +85°C |
RFCR2143S | 791 | 821 | 0.22/0.30 | 23/20 | 23/20 | 500/100 | 100 | -40 to +85°C |
RFCR2224S | 800 | 900 | 0.22/0.30 | 23/20 | 23/20 | 500/100 | 100 | -40 to +85°C |
RFCR2205S | 847 | 860 | 0.22/0.30 | 23/20 | 23/20 | 500/100 | 100 | -40 to +85°C |
RFCR2207S | 860 | 960 | 0.25/0.35 | 23/20 | 23/20 | 500/100 | 100 | -40 to +85°C |
RFCR2201S | 869 | 894 | 0.22/0.30 | 23/20 | 23/20 | 500/100 | 100 | -40 to +85°C |
RFCR2223S | 885 | 920 | 0.22/0.30 | 23/20 | 23/20 | 500/100 | 100 | -40 to +85°C |
RFCR2310S | 900 | 930 | 0.22/0.30 | 23/20 | 23/20 | 500/100 | 100 | -40 to +85°C |
RFCR2306S | 920 | 960 | 0.22/0.30 | 23/20 | 23/20 | 500/100 | 100 | -40 to +85°C |
RFCR2307S | 1020 | 1090 | 0.22/0.30 | 23/20 | 23/20 | 500/100 | 100 | -40 to +85°C |
RFCR2332S | 1165 | 1215 | 0.22/0.30 | 23/20 | 23/20 | 500/100 | 100 | -40 to +85°C |
RFCR2301S | 1200 | 1400 | 0.22/0.30 | 23/20 | 23/20 | 500/100 | 100 | -40 to +85°C |
RFCR2333S | 1420 | 1520 | 0.22/0.30 | 23/20 | 23/20 | 500/100 | 100 | -40 to +85°C |
RFCR2408S | 1520 | 1565 | 0.22/0.30 | 23/20 | 23/20 | 500/100 | 100 | -40 to +85°C |
RFCR2414S | 1710 | 1880 | 0.25/0.35 | 23/20 | 23/20 | 500/100 | 100 | -40 to +85°C |
RFCR2502S | 1805 | 1880 | 0.22/0.30 | 23/20 | 23/20 | 500/100 | 100 | -40 to +85°C |
RFCR2618S | 1880 | 1930 | 0.22/0.30 | 23/20 | 23/20 | 500/100 | 100 | -40 to +85°C |
RFCR2619S | 1920 | 2170 | 0.25/0.35 | 23/20 | 23/20 | 500/100 | 100 | -40 to +85°C |
RFCR2603S | 1930 | 1995 | 0.22/0.30 | 23/20 | 23/20 | 500/100 | 100 | -40 to +85°C |
RFCR2704S | 2090 | 2190 | 0.22/0.30 | 23/20 | 23/20 | 500/100 | 100 | -40 to +85°C |
RFCR2727S | 2010 | 2300 | 0.25/0.40 | 23/20 | 23/20 | 500/100 | 100 | -40 to +85°C |
RFCR2726S | 2130 | 2280 | 0.22/0.30 | 23/20 | 23/20 | 500/100 | 100 | -40 to +85°C |
SMD Gullwing Circulators, Flange Mount Thu Mounting Holes (19mm Package Size) | ||||||||
Part Number | Frequency Range Min | Frequency Range Max | Insertion Loss | Isolation | Return Loss | Forward Power P/CW | Rev Power | Operating Temperature |
RFCR2411S | 1600 | 1650 | 0.22/0.30 | 23/20 | 23/20 | 500/100 | 80 | -40 to +85°C |
RFCR2412S | 1710 | 1785 | 0.25/0.30 | 23/20 | 23/20 | 500/100 | 80 | -40 to +85°C |
RFCR2513S | 1805 | 1880 | 0.22/0.30 | 23/20 | 23/20 | 500/100 | 80 | -40 to +85°C |
RFCR2514S | 1805 | 1990 | 0.25/0.35 | 22/20 | 22/20 | 500/100 | 80 | -40 to +85°C |
RFCR2515S | 1880 | 1930 | 0.22/0.30 | 23/20 | 23/20 | 500/100 | 80 | -40 to +85°C |
RFCR2616S | 1920 | 2125 | 0.25/0.35 | 22/20 | 22/20 | 500/100 | 80 | -40 to +85°C |
RFCR2617S | 1930 | 1995 | 0.22/0.30 | 23/20 | 23/20 | 500/100 | 80 | -40 to +85°C |
RFCR2722S | 2010 | 2090 | 0.22/0.30 | 23/20 | 23/20 | 500/100 | 80 | -40 to +85°C |
RFCR2723S | 2024 | 2286 | 0.25/0.35 | 22/20 | 22/20 | 500/100 | 80 | -40 to +85°C |
RFCR2724S | 2090 | 2190 | 0.22/0.30 | 23/20 | 23/20 | 500/100 | 80 | -40 to +85°C |
RFCR2725S | 2130 | 2280 | 0.22/0.30 | 23/20 | 23/20 | 500/100 | 80 | -40 to +85°C |
RFCR2847S | 2200 | 2300 | 0.25/0.30 | 23/20 | 23/20 | 500/100 | 80 | -40 to +85°C |
RFCR2848S | 2250 | 2650 | 0.25/0.35 | 22/20 | 22/20 | 500/100 | 80 | -40 to +85°C |
RFCR2849S | 2300 | 2500 | 0.25/0.30 | 23/20 | 23/20 | 500/100 | 80 | -40 to +85°C |
RFCR2850S | 2300 | 2700 | 0.25/0.35 | 22/20 | 22/20 | 500/100 | 80 | -40 to +85°C |
RFCR2851S | 2470 | 2730 | 0.25/0.30 | 23/20 | 23/20 | 500/100 | 80 | -40 to +85°C |
RFCR2853S | 2500 | 2700 | 0.22/0.30 | 23/20 | 23/20 | 500/100 | 80 | -40 to +85°C |
