LIVRAISON En cours de réapprovisionnement
Attention : dernières pièces disponibles !
Nous vous contacterons pour valider votre commande quand le produit sera disponible.
Date de disponibilité :
Applications :

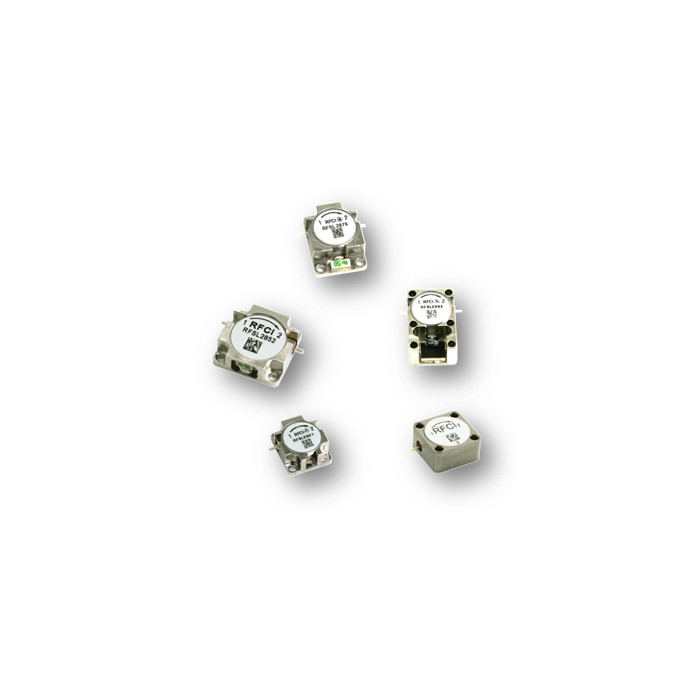

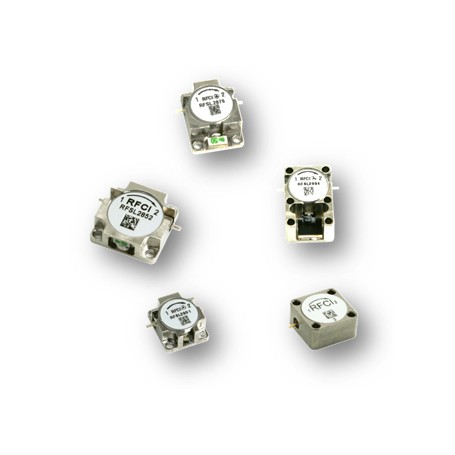

Références et spécifications :20W Flange Mount Drop-in Isolators (19mm C’ Bore Mounting Holes Package)
Part Number | Frequency Range Low | Frequency Range High | Insertion Loss Room/OT | Isolation Room/OT | Return Loss Room/OT | Forward Power P/C Max.W | Rev Power Max. |
Operating Temperature (ºC) |
Package Outline |
RFSL2852 | 2500 | 2700 | 0.20/0.30 | 25/22 | 25/22 | 1000/100 | 20 | -40 to +85°C | DI-21 |
RFSL2817 | 2700 | 3300 | 0.30/0.40 | 23/20 | 23/20 | 1000/100 | 20 | -40 to +85°C | DI-21 |
RFSL2854 | 2700 | 2900 | 0.20/0.30 | 25/22 | 25/22 | 1000/100 | 20 | -40 to +85°C | DI-21 |
RFSL2856 | 2900 | 3500 | 0.30/0.40 | 23/20 | 23/20 | 1000/100 | 20 | -40 to +85°C | DI-21 |
RFSL2855 | 2900 | 3100 | 0.20/0.30 | 25/22 | 25/22 | 1000/100 | 20 | -40 to +85°C | DI-21 |
RFSL2857 | 3000 | 3500 | 0.25/0.35 | 23/20 | 23/20 | 1000/100 | 20 | -40 to +85°C | DI-21 |
RFSL2859 | 3300 | 3800 | 0.25/0.35 | 23/20 | 23/20 | 1000/100 | 20 | -40 to +85°C | DI-21 |
RFSL2858 | 3300 | 3500 | 0.20/0.30 | 25/22 | 25/22 | 1000/100 | 20 | -40 to +85°C | DI-21 |
RFSL2873 | 3400 | 4200 | 0.30/0.40 | 23/20 | 23/20 | 500/50 | 20 | -20 to +85°C | DI-21 |
RFSL2860 | 3400 | 3700 | 0.20/0.30 | 25/22 | 25/22 | 1000/100 | 20 | -40 to +85°C | DI-21 |
RFSL2874 | 3500 | 4300 | 0.30/0.40 | 23/20 | 23/20 | 500/50 | 20 | -20 to +85°C | DI-21 |
RFSL2861 | 3600 | 3800 | 0.20/0.30 | 25/22 | 25/22 | 1000/100 | 20 | -40 to +85°C | DI-21 |
Références et spécifications : 100W-Flange Mount Drop-in Isolators (19mm Package)
Part Number | Frequency Range Low | Frequency Range High | Insertion Loss Room/OT | Isolation Room/OT | Return Loss Room/OT | Forward Power P/C Max.W | Rev Power Max. |
Operating Temperature (ºC) |
Package Outline |
RFSL2852-T100 | 2500 | 2700 | 0.20/0.30 | 25/22 | 25/22 | 1000/100 | 100 | -40 to +85°C | DI-22 |
RFSL2817-T100 | 2700 | 3300 | 0.30/0.40 | 23/20 | 23/20 | 1000/100 | 100 | -40 to +85°C | DI-22 |
RFSL2854-T100 | 2700 | 2900 | 0.20/0.30 | 25/22 | 25/22 | 1000/100 | 100 | -40 to +85°C | DI-22 |
RFSL2856-T100 | 2900 | 3500 | 0.30/0.40 | 23/20 | 23/20 | 1000/100 | 100 | -40 to +85°C | DI-22 |
RFSL2855-T100 | 2900 | 3100 | 0.20/0.30 | 25/22 | 25/22 | 1000/100 | 100 | -40 to +85°C | DI-22 |
RFSL2857-T100 | 3000 | 3500 | 0.25/0.35 | 23/20 | 23/20 | 1000/100 | 100 | -40 to +85°C | DI-22 |
RFSL2859-T100 | 3300 | 3800 | 0.25/0.35 | 23/20 | 23/20 | 1000/100 | 100 | -40 to +85°C | DI-22 |
RFSL2858-T100 | 3300 | 3500 | 0.20/0.30 | 25/22 | 25/22 | 1000/100 | 100 | -40 to +85°C | DI-22 |
RFSL2860-T100 | 3400 | 3700 | 0.20/0.30 | 25/22 | 25/22 | 1000/100 | 100 | -40 to +85°C | DI-22 |
RFSL2861-T100 | 3600 | 3800 | 0.20/0.30 | 25/22 | 25/22 | 1000/100 | 100 | -40 to +85°C | DI-22 |
Références et spécifications : 20W Flange Mount Drop-in Isolators (19mm Thick Package)
Part Number | Frequency Range Low | Frequency Range High | Insertion Loss Room/OT | Isolation Room/OT | Return Loss Room/OT | Forward Power P/C Max.W | Rev Power Max. |
Operating Temperature (ºC) |
Package Outline |
RFSL2852D | 2500 | 2700 | 0.20/0.30 | 25/22 | 25/22 | 1000/100 | 20 | -40 to +85°C | DI-23 |
RFSL2817D | 2700 | 3300 | 0.30/0.40 | 23/20 | 23/20 | 1000/100 | 20 | -40 to +85°C | DI-23 |
RFSL2854D | 2700 | 2900 | 0.20/0.30 | 25/22 | 25/22 | 1000/100 | 20 | -40 to +85°C | DI-23 |
RFSL2856D | 2900 | 3500 | 0.30/0.40 | 23/20 | 23/20 | 1000/100 | 20 | -40 to +85°C | DI-23 |
RFSL2855D | 2900 | 3100 | 0.20/0.30 | 25/22 | 25/22 | 1000/100 | 20 | -40 to +85°C | DI-23 |
RFSL2857D | 3000 | 3500 | 0.25/0.35 | 23/20 | 23/20 | 1000/100 | 20 | -40 to +85°C | DI-23 |
RFSL2859D | 3300 | 3800 | 0.25/0.35 | 23/20 | 23/20 | 1000/100 | 20 | -40 to +85°C | DI-23 |
RFSL2858D | 3300 | 3500 | 0.20/0.30 | 25/22 | 25/22 | 1000/100 | 20 | -40 to +85°C | DI-23 |
RFSL2860D | 3400 | 3700 | 0.20/0.30 | 25/22 | 25/22 | 1000/100 | 20 | -40 to +85°C | DI-23 |
RFSL2861D | 3600 | 3800 | 0.20/0.30 | 25/22 | 25/22 | 1000/100 | 20 | -40 to +85°C | DI-23 |
Références et spécifications : 100W Flange Mount Drop-in Isolators (19mm Thick Package)
Part Number | Frequency Range Low | Frequency Range High | Insertion Loss Room/OT | Isolation Room/OT | Return Loss Room/OT | Forward Power P/C Max.W | Rev Power Max. |
Operating Temperature (ºC) |
Package Outline |
RFSL2852D-T100 | 2500 | 2700 | 0.20/0.30 | 25/22 | 25/22 | 1000/100 | 100 | -40 to +85°C | DI-24 |
RFSL2817D-T100 | 2700 | 3300 | 0.30/0.40 | 23/20 | 23/20 | 1000/100 | 100 | -40 to +85°C | DI-24 |
RFSL2854D-T100 | 2700 | 2900 | 0.20/0.30 | 25/22 | 25/22 | 1000/100 | 100 | -40 to +85°C | DI-24 |
RFSL2856D-T100 | 2900 | 3500 | 0.30/0.40 | 23/20 | 23/20 | 1000/100 | 100 | -40 to +85°C | DI-24 |
RFSL2855D-T100 | 2900 | 3100 | 0.20/0.30 | 25/22 | 25/22 | 1000/100 | 100 | -40 to +85°C | DI-24 |
RFSL2857D-T100 | 3000 | 3500 | 0.25/0.35 | 23/20 | 23/20 | 1000/100 | 100 | -40 to +85°C | DI-24 |
RFSL2859D-T100 | 3300 | 3800 | 0.25/0.35 | 23/20 | 23/20 | 1000/100 | 100 | -40 to +85°C | DI-24 |
RFSL2858D-T100 | 3300 | 3500 | 0.20/0.30 | 25/22 | 25/22 | 1000/100 | 100 | -40 to +85°C | DI-24 |
RFSL2860D-T100 | 3400 | 3700 | 0.20/0.30 | 25/22 | 25/22 | 1000/100 | 100 | -40 to +85°C | DI-24 |
RFSL2861D-T100 | 3600 | 3800 | 0.20/0.30 | 25/22 | 25/22 | 1000/100 | 100 | -40 to +85°C | DI-24 |
Références et spécifications : 2W Flange Mount Drop-in Isolators (12.7mm C’ Bore Mounting Holes Package)
Part Number | Frequency Range Low | Frequency Range High | Insertion Loss Room/OT | Isolation Room/OT | Return Loss Room/OT | Forward Power P/C Max.W | Rev Power Max. |
Operating Temperature (ºC) |
Package Outline |
RFSL2945-T2 | 3600 | 4200 | 0.35/0.50 | 20/19 | 20/19 | 500/35 | 2 | -40 to +85°C | DI-28 |
RFSL2921-T2 | 3600 | 3800 | 0.25/0.35 | 23/20 | 23/20 | 500/35 | 2 | -40 to +85°C | DI-28 |
RFSL2886-T2 | 4000 | 4700 | 0.30/0.40 | 23/20 | 23/20 | 500/35 | 2 | -40 to +85°C | DI-28 |
RFSL2875-T2 | 4200 | 4400 | 0.30/0.35 | 23/20 | 23/20 | 500/35 | 2 | -40 to +85°C | DI-28 |
RFSL2876-T2 | 4400 | 5000 | 0.30/0.35 | 23/20 | 23/20 | 500/35 | 2 | -40 to +85°C | DI-28 |
RFSL2887-T2 | 4700 | 5200 | 0.30/0.35 | 23/20 | 23/20 | 500/35 | 2 | -40 to +85°C | DI-28 |
RFSL2877-T2 | 4900 | 6100 | 0.30/0.40 | 23/20 | 23/20 | 500/35 | 2 | -40 to +85°C | DI-28 |
RFSL2878-T2 | 5000 | 6500 | 0.45/0.50 | 23/20 | 23/20 | 500/35 | 2 | -40 to +85°C | DI-28 |
RFSL2879-T2 | 5400 | 5900 | 0.30/0.35 | 22/20 | 22/20 | 500/35 | 2 | -40 to +85°C | DI-28 |
RFSL2940-T2 | 5800 | 7100 | 0.35/0.40 | 21/20 | 21/20 | 500/35 | 2 | -40 to +85°C | DI-28 |
RFSL2880-T2 | 5800 | 6700 | 0.35/0.40 | 22/20 | 22/20 | 500/35 | 2 | -40 to +85°C | DI-28 |
RFSL2881-T2 | 6400 | 7200 | 0.35/0.40 | 22/20 | 22/20 | 500/35 | 2 | -40 to +85°C | DI-28 |
RFSL2882-T2 | 6500 | 8500 | 0.45/0.50 | 22/20 | 22/20 | 500/35 | 2 | -40 to +85°C | DI-28 |
RFSL2941-T2 | 7000 | 8000 | 0.30/0.35 | 22/20 | 22/20 | 500/35 | 2 | -40 to +85°C | DI-28 |
RFSL2883-T2 | 7200 | 8400 | 0.30/0.35 | 23/20 | 23/20 | 500/35 | 2 | -40 to +85°C | DI-28 |
RFSL2942-T2 | 7700 | 8800 | 0.35/0.40 | 21/20 | 21/20 | 500/35 | 2 | -40 to +85°C | DI-28 |
RFSL2884-T2 | 8300 | 8800 | 0.35/0.35 | 23/20 | 23/20 | 500/35 | 2 | -40 to +85°C | DI-28 |
RFSL2885-T2 | 9000 | 9600 | 0.30/0.40 | 23/20 | 23/20 | 500/35 | 2 | -40 to +85°C | DI-28 |
RFSL2892-T2 | 9200 | 9800 | 0.30/0.40 | 23/20 | 23/20 | 500/35 | 2 | -40 to +85°C | DI-28 |
RFSL2901 | 8000 | 10500 | 0.35/0.50 | 22/18 | 22/18 | 500/35 | 2 | -40 to +85°C | DI-28 |
RFSL2946 | 9000 | 11000 | 0.45/0.50 | 22/19 | 22/19 | 500/35 | 2 | -40 to +85°C | DI-28 |
RFSL2943 | 10000 | 11700 | 0.35/0.40 | 21/20 | 21/20 | 500/35 | 2 | -40 to +85°C | DI-28 |
RFSL2944 | 12000 | 15000 | 0.40/0.50 | 21/19 | 21/19 | 500/25 | 2 | -40 to +85°C | DI-28 |
Références et spécifications : 10W-20W Flange Mount Drop-in Isolators (12.7mm C’ Bore Mounting Holes Package)
Part Number | Frequency Range Low | Frequency Range High | Insertion Loss Room/OT | Isolation Room/OT | Return Loss Room/OT | Forward Power P/C Max.W | Rev Power Max. |
Operating Temperature (ºC) |
Package Outline |
RFSL2945 | 3600 | 4200 | 0.35/0.50 | 20/19 | 20/19 | 500/35 | 20 | -40 to +85°C | DI-29 |
RFSL2921 | 3600 | 3800 | 0.25/0.35 | 23/20 | 23/20 | 500/35 | 20 | -40 to +85°C | DI-29 |
RFSL2886 | 4000 | 4700 | 0.30/0.40 | 23/20 | 23/20 | 500/35 | 20 | -40 to +85°C | DI-29 |
RFSL2875 | 4200 | 4400 | 0.30/0.35 | 23/20 | 23/20 | 500/35 | 20 | -40 to +85°C | DI-29 |
RFSL2876 | 4400 | 5000 | 0.30/0.35 | 23/20 | 23/20 | 500/35 | 20 | -40 to +85°C | DI-29 |
RFSL2887 | 4700 | 5200 | 0.30/0.35 | 23/20 | 23/20 | 500/35 | 20 | -40 to +85°C | DI-29 |
RFSL2877 | 4900 | 6100 | 0.30/0.40 | 23/20 | 23/20 | 500/35 | 20 | -40 to +85°C | DI-29 |
RFSL2878 | 5000 | 6500 | 0.45/0.50 | 23/20 | 23/20 | 500/35 | 20 | -40 to +85°C | DI-29 |
RFSL2879 | 5400 | 5900 | 0.30/0.35 | 22/20 | 22/20 | 500/35 | 20 | -40 to +85°C | DI-29 |
RFSL2940 | 5800 | 7100 | 0.35/0.40 | 21/20 | 21/20 | 500/35 | 20 | -40 to +85°C | DI-29 |
RFSL2880 | 5800 | 6700 | 0.35/0.40 | 22/20 | 22/20 | 500/35 | 20 | -40 to +85°C | DI-29 |
RFSL2881 | 6400 | 7200 | 0.35/0.40 | 22/20 | 22/20 | 500/35 | 20 | -40 to +85°C | DI-29 |
RFSL2882 | 6500 | 8500 | 0.45/0.50 | 22/20 | 22/20 | 500/35 | 20 | -40 to +85°C | DI-29 |
RFSL2941 | 7000 | 8000 | 0.35/0.40 | 22/20 | 22/20 | 500/35 | 20 | -40 to +85°C | DI-29 |
RFSL2883 | 7200 | 8400 | 0.30/0.35 | 23/20 | 23/20 | 500/35 | 20 | -40 to +85°C | DI-29 |
RFSL2942 | 7700 | 8800 | 0.35/0.40 | 21/20 | 21/20 | 500/35 | 20 | -40 to +85°C | DI-29 |
RFSL2884 | 8300 | 8800 | 0.35/0.35 | 23/20 | 23/20 | 500/35 | 20 | -40 to +85°C | DI-29 |
RFSL2885 | 9000 | 9600 | 0.30/0.40 | 23/20 | 23/20 | 500/35 | 20 | -40 to +85°C | DI-29 |
RFSL2892 | 9200 | 9800 | 0.30/0.40 | 23/20 | 23/20 | 500/35 | 20 | -40 to +85°C | DI-29 |
Références et spécifications : 5-10W Flange Mount Drop-in Isolators (12.7mm Thick Package)
Part Number | Frequency Range Low | Frequency Range High | Insertion Loss Room/OT | Isolation Room/OT | Return Loss Room/OT | Forward Power P/C Max.W | Rev Power Max. |
Operating Temperature (ºC) |
Package Outline |
RFSL2945D | 3600 | 4200 | 0.40/0.50 | 20/19 | 20/19 | 500/35 | 10 | -40 to +85°C | DI-27 |
RFSL2921D | 3600 | 3800 | 0.25/0.35 | 23/20 | 23/20 | 500/35 | 10 | -40 to +85°C | DI-27 |
RFSL2886D | 4000 | 4700 | 0.30/0.40 | 23/20 | 23/20 | 500/35 | 10 | -40 to +85°C | DI-27 |
RFSL2875D | 4200 | 4400 | 0.30/0.35 | 23/20 | 23/20 | 500/35 | 10 | -40 to +85°C | DI-27 |
RFSL2876D | 4400 | 5000 | 0.30/0.35 | 23/20 | 23/20 | 500/35 | 10 | -40 to +85°C | DI-27 |
RFSL2887D | 4700 | 5200 | 0.30/0.35 | 23/20 | 23/20 | 500/35 | 10 | -40 to +85°C | DI-27 |
RFSL2877D | 4900 | 6100 | 0.30/0.40 | 23/20 | 23/20 | 500/35 | 10 | -40 to +85°C | DI-27 |
RFSL2878D | 5000 | 6500 | 0.45/0.50 | 20/17 | 20/17 | 500/35 | 10 | -40 to +85°C | DI-27 |
RFSL2879D | 5400 | 5900 | 0.30/0.35 | 22/20 | 22/20 | 500/35 | 10 | -40 to +85°C | DI-27 |
RFSL2940D | 5800 | 7100 | 0.35/0.40 | 21/20 | 21/20 | 500/35 | 10 | -40 to +85°C | DI-27 |
RFSL2880D | 5800 | 6700 | 0.35/0.40 | 22/20 | 22/20 | 500/35 | 10 | -40 to +85°C | DI-27 |
RFSL2881D | 6400 | 7200 | 0.35/0.40 | 22/20 | 22/20 | 500/35 | 10 | -40 to +85°C | DI-27 |
RFSL2882D | 6500 | 8500 | 0.45/0.50 | 22/20 | 22/20 | 500/35 | 10 | -40 to +85°C | DI-27 |
RFSL2941D | 7000 | 8000 | 0.35/0.40 | 22/20 | 22/20 | 500/35 | 10 | -40 to +85°C | DI-27 |
RFSL2883D | 7200 | 8400 | 0.30/0.35 | 23/20 | 23/20 | 500/35 | 10 | -40 to +85°C | DI-27 |
RFSL2942D | 7700 | 8800 | 0.35/0.40 | 21/20 | 21/20 | 500/35 | 10 | -40 to +85°C | DI-27 |
RFSL2901D | 8000 | 10500 | 0.35/0.50 | 22/18 | 22/18 | 500/35 | 5 | -40 to +85°C | DI-27 |
RFSL2884D | 8300 | 8800 | 0.35/0.35 | 23/20 | 23/20 | 500/35 | 10 | -40 to +85°C | DI-27 |
RFSL2885D | 9000 | 9600 | 0.30/0.40 | 23/20 | 23/20 | 500/35 | 10 | -40 to +85°C | DI-27 |
RFSL2892D | 9200 | 9800 | 0.30/0.40 | 23/20 | 23/20 | 500/35 | 10 | -40 to +85°C | DI-27 |
RFSL2946D | 9000 | 1100 | 0.45/0.50 | 22/19 | 22/19 | 500/35 | 5 | -40 to +85°C | DI-27 |
RFSL2943D | 10000 | 11700 | 0.35/0.40 | 21/20 | 21/20 | 500/35 | 5 | -40 to +85°C | DI-27 |
RFSL2944D | 12000 | 15000 | 0.4/0.5 | 21/19 | 21/19 | 500/35 | 5 | -40 °C + 85 °C | DI-27 |
Références et spécifications : 40W Flange Mount Drop-in Isolators (12.7mm Thick Package)
Part Number | Frequency Range Low | Frequency Range High | Insertion Loss Room/OT | Isolation Room/OT | Return Loss Room/OT | Forward Power P/C Max.W | Rev Power Max. |
Operating Temperature (ºC) |
Package Outline |
RFSL2945D-T40 | 3600 | 4200 | 0.40/0.50 | 20/19 | 20/19 | 500/50 | 40 | -40 to +85°C | DI-30 |
RFSL2921D-T40 | 3600 | 3800 | 0.30/0.40 | 22/20 | 23/20 | 500/50 | 40 | -40 to +85°C | DI-30 |
RFSL2886D-T40 | 4000 | 4700 | 0.35/0.45 | 21/20 | 23/20 | 500/50 | 40 | -40 to +85°C | DI-30 |
RFSL2875D-T40 | 4200 | 4400 | 0.35/0.40 | 21/20 | 23/20 | 500/50 | 40 | -40 to +85°C | DI-30 |
RFSL2876D-T40 | 4400 | 5000 | 0.35/0.40 | 21/20 | 23/20 | 500/50 | 40 | -40 to +85°C | DI-30 |
RFSL2887D-T40 | 4700 | 5200 | 0.40/0.50 | 21/20 | 23/20 | 500/50 | 40 | -40 to +85°C | DI-30 |
RFSL2877D-T40 | 4900 | 6100 | 0.40/0.50 | 21/20 | 23/20 | 500/50 | 40 | -40 to +85°C | DI-30 |
RFSL2878D-T40 | 5000 | 6500 | 0.50/0.60 | 18/17 | 20/17 | 500/50 | 40 | -40 to +85°C | DI-30 |
RFSL2879D-T40 | 5400 | 5900 | 0.40/0.50 | 21/20 | 22/20 | 500/50 | 40 | -40 to +85°C | DI-30 |
RFSL2940D-T40 | 5800 | 7100 | 0.40/0.50 | 21/20 | 21/20 | 500/50 | 40 | -40 to +85°C | DI-30 |
RFSL2880D-T40 | 5800 | 6700 | 0.40/0.50 | 20/19 | 22/20 | 500/50 | 40 | -40 to +85°C | DI-30 |
RFSL2881D-T40 | 6400 | 7200 | 0.40/0.50 | 20/19 | 22/20 | 500/50 | 40 | -40 to +85°C | DI-30 |
