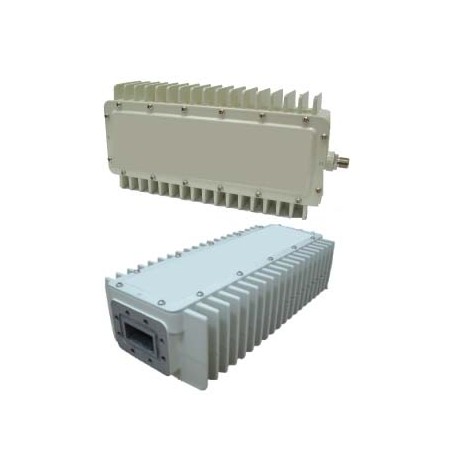

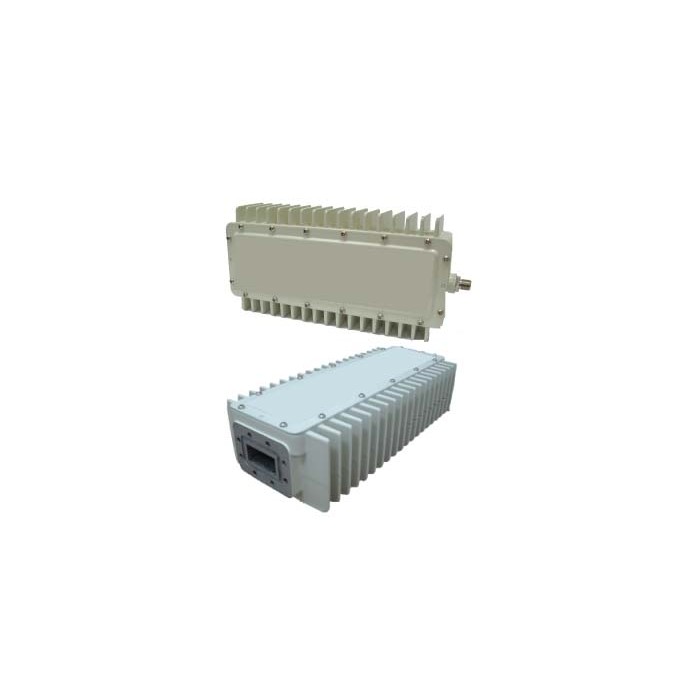

Block Up Converter de la bande L vers la bande C  : Série 2 ou 5 Watts Agrandir l'image

Block Up Converter de la bande L vers la bande C : Série 2 ou 5 Watts | RADITEK

Trois versions de puissances disponibles

Plus de détails

Téléchargement

Description

Références et spécifications :

Specifications C Band Extended 2W C Band Extended 5W C Band 5W Units
Input Frequency Range 950 - 1450 950 - 1450 950-1525 MHz
Input Connector F-Type F-Type, Female F-Type, Female
Input V.S.W.R (max) 2:1 2:1 2:1
Reference Requirement
Frequency Power Lower
10
-5 to +5
10
-3 to +7
10
-3 to +7
MHz
dBm
D.C Voltage
Requirement Power Consumption  (max)
15-24
25
15-24
60
15-24
60
V
Watts
L.O. Frequency 7,675 7.675 (P.L.O.) 7.375 (P.L.O.) GHz
L.O. Phase Noise -60 dBc/Hz @ 100Hz -60 dBc/Hz @ 100Hz -60 dBc/Hz @ 100Hz
-70 dBc/Hz @ 1KHz -70 dBc/Hz @ 1KHz -70 dBc/Hz @ 1KHz
-80 dBc/Hz @ 10KHz -80 dBc/Hz @ 10KHz -80 dBc/Hz @ 10KHz
-90 dBc/Hz@100KHz -90 dBc/Hz@100KHz -90 dBc/Hz@100KHz
RMS < 2.2 deg @ 100Hz – 1MHz RMS < 2.2 deg @ 100Hz – 1MHz RMS < 2.2 deg @ 100Hz – 1MHz
L.O. Leakage < -37 < -37 < -37 dBm
Frequency Stability Related to External Ref Related to External Ref Related to External Ref
Output Frequency Range 6.225 - 6.725 6.225-6.725 5.850-6.425 GHz
Output Power
(at1dB Gain Compression Point)
33.0 (typ), 32.0 (min) 37.0 (typ) , 36.5 (min) 37.0 (typ) , 36.5 (min) dBm
Conversion Gain 55dB (typ) 60dB (typ) 60dB (typ)
Gain Variation Over Temperature 3dB (p-p) 4dB (p-p) 3dB (p-p)
Gain Flatness Over
54MHz 1.5dB (p-p) 1.5dB (p-p) 1.5dB (p-p)
500MHz 4.0dB (p-p) 4.0dB (p-p) 4.0dB (p-p)
Output Connector WR137 W/G WR137 W/G WR137 W/G
RX Noise Floor < -155 dBm/Hz < -155 dBm/Hz < -155 dBm/Hz
Spurious for In-Band < -50 < -50 < -50 dBc
Spurious for Out-Band < -70 < -70 < -70 dBc
Operating Temperature -40 to +55 -40 to +55 -40 to +55 ºC
Weight (max) 1500 2700 2700 grams
