BUC 80W à bande Ku : Série RBUC-L (950-1450 MHz) to Ku (14.00-14.50 GHz) | RADITEK

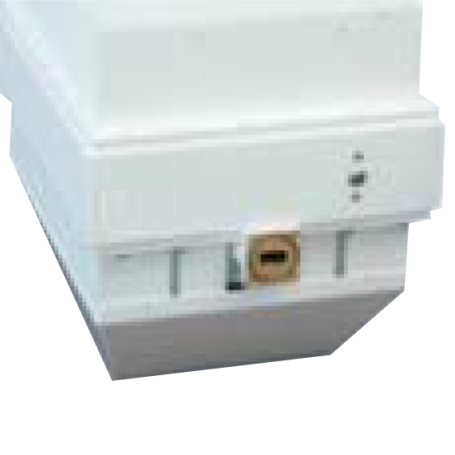

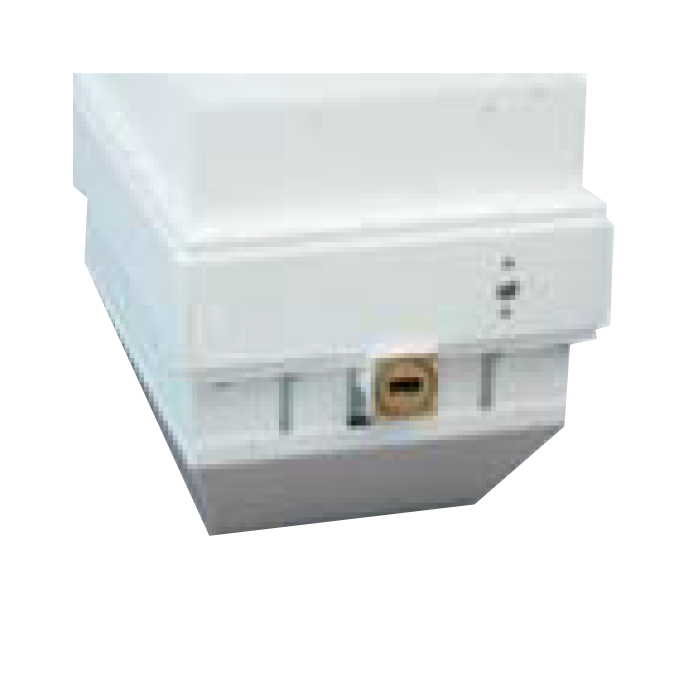

Il s'agit d'un Block Up Converter muni d'une bande L(950-1450MHz) vers Ku(14.00-14.50GHz) avec un connecteur N-Type Femelle, 80 Watts.

Il s'agit d'un Block Up Converter muni d'une bande L(950-1450MHz) vers Ku(14.00-14.50GHz) avec un connecteur N-Type Femelle, 80 Watts.

RF Frequency	Local Frequency	IF Frequency	Output Power	Connector
14.0 to 14.5 GHz	13.05 GHz	950 to 1,450 MHz	80W Linear	N-type
Specifications
Output Interface Waveguide,		WR-75
Output Power @ 1dB G.C.P.		49 dBm typical, over temperature
Linear Gain		80 dB nom.
Required External Reference Signal
Frequency		10MHz (sine wave)
Input Power :		-5 to +5 dBm @ input port
Phase Noise :		-125 dBc/Hz max. @ 100 Hz
		-135 dBc/Hzmax. @ 1 kHz
		-140 dBc/Hzmax. @ 10 kHz
L.O. Phase Noise (SSB)		-60 dBc/Hz max. @ 100 Hz
		-70 dBc/Hzmax. @ 1 kHz
		-80 dBc/Hzmax. @ 10 kHz
		-90 dBc/Hz max. @ 100 kHz
Input /Output V.S.W.R.		1.3:1max
		2.0:1max
DC Power Requirement		220VAC
		1.2kW max.
Mute		Shut off theHPA in case of L.O. unlocked
Input Interface		N-type, female (50 ohm)
Operating Temperature		-40 to +60º C
Storage Temperature		-40 to +75º C
Size		427(L) x 425(W) x 232(H) mm
		16.8(L) x 16.7(W) x 9.1(H) inch
Weight		27 kg (60 lbs)
