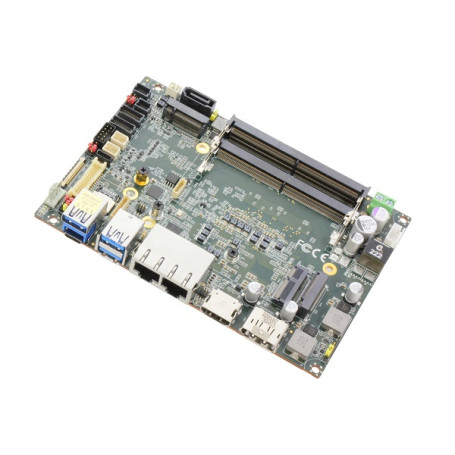

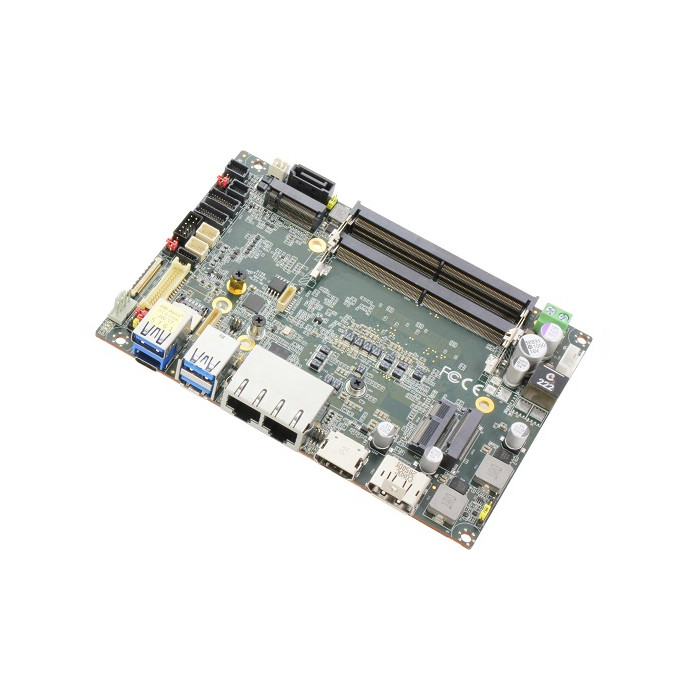

GENE 3,5" SubCompact Board Intel Core 7th : GENE-ADP6 Agrandir l'image

Carte-mère Sub Compact 3,5" avec Intel Celeron/i3/i5/i7 12th Gen : GENE-ADP6 | AAEON

Carte Ultra Compact de 3,5 pouces avec SoC processeur Intel® Core™ i7/i5/i3/Celeron® de 12e génération.

Plus de détails

Téléchargement

Description

Carte Ultra Compact de 3,5 pouces avec SoC processeur Intel® Core™ i7/i5/i3/Celeron® de 12e génération.

Caractéristiques :

  • Intel® Core i7/i5/i3/Celeron SoC
  • DDR5 4800 MHz, SODIMM double canal x 2, jusqu'à 64 Go
  • LVDS double canal 18/24 bits x 1, eDP 1.4b, DP1.4a x 1, HDMI 2.0b
  • GbE x2, SATA III x 1, DIO x 8bit
  • USB 3.2 Gen2 x 3 (E/S arrière), USB2.0 x 4 (tête de broche), USB Type C x1
  • RS-232/422/485 x 4
  • M.2 M-key 2280 x 1 (PCIe x 4)
  • M.2 E-Key 2230 x 1 (PCIe, USB2.0)
  • M.2 B-Key 3052 x 1 (PCIe x2, USB3.2+SATA, USB2.0), par défaut : USB3.2+SATA
  • Entrée CC large 9-36V (optionnel : 12V seulement)

Références et spécifications :

SYSTEM
FORM FACTOR 3.5" SubCompact Board
CPU Intel® 12th Generation Core™/Celeron CPU
i7-1270PE (12C/16T, 3.30GHz, up to 4.50GHz)
i7-1265UE (10C/12T, 3.50GHz, up to 4.70GHz)
i5-1250PE (12C/16T, 3.20GHz, up to 4.40GHz)
i3-1220PE (8C/12T, 3.10GHz, up to 4.20GHz)
7305E(5C/5T, 3.10GHz, up to 4.20GHz)
CPU TDP 28W, TDP-up 64W: i7-1270PE/ i5-1250PE/ i3-1220PE
15W, TDP-up 55W: i7-1265UE
CHIPSET Integrated with Intel® SoC
MEMORY TYPE DDR5 4800 MHz, Dual Channel SODIMM x 2,up to 64G
BIOS UEFI
WAKE ON LAN Yes
WATCHDOG TIMER 255 Levels
SECURITY TPM2.0
RTC BATTERY Lithium Battery 3V/240mAH
DIMENSION (L X W) 5.75" x 4" (146mm x 101.7mm)
POWER
POWER REQUIREMENT +9-36V or +12V
POWER SUPPLY TYPE AT/ATX
CONNECTOR Phoenix 2-pin Connector
POWER CONSUMPTION TBD
DISPLAY
CONTROLLER Intel® Iris® Xe Graphics
Intel® UHD Graphics
LVDS/EDP LVDS Dual Channel 18/24bit x 1,up to 1920 x 1200 60Hz
eDP1.4b HBR3, up to 5120 x 3200 120Hz 30bpp
DISPLAY INTERFACE HDMI 2.1 x 1, up to 8K x 4K 60Hz or 4K2K 120Hz
DP1.4a x 1, up to 7680 x 4320 60Hz 30bpp
DP1.4a x 1 (via USB Type C), PD 5V 3A
MULTIPLE DISPLAY 4 Simultaneous Displays
AUDIO
CODEC Realtek ALC897
AUDIO INTERFACE Line-in/Line-out/MIC
SPEAKER
EXTERNAL I/O
ETHERNET Intel® i219, 10/100/1000Base
Intel® i225, 2.5G, 10/100/2500Base
USB USB3.2 Gen 2 x 3
USB Type C x 1 ( DP1.4a, PD 5V/3A)
SERIAL PORT
VIDEO LVDS/eDP x 1
Inverter x 1 (12V/2A)
INTERNAL I/O
USB USB2.0 x 4
SERIAL PORT COM1, COM2 (RS232/422/485,supports 5V/12V/RI)
COM3, COM4 (RS232/422/485)
VIDEO LVDS/eDP x 1
Inverter x 1 (12V/2A)
SATA SATA3.0 x 1
+5V SATA Power Connector x 1
AUDIO Audio Header x 1
DIO/GPIO 8-Bit
SMBUS/I2C SMBus/I2C x 1(Default: I2C)
TOUCH
FAN Smart Fan x 1
SIM Nano SIM x 1
FRONT PANEL PWR LED, HDD LED, PWR button, HW Reset
OTHERS
EXPANSION
MINI PCI-E/MSATA
M.2 M-Key 2280 x 1 (PCIe x 4)
B-Key 3052/2242 x 1 (PCIe x 2, USB3.2+SATA, USB2.0), default: USB3.2+SATA
E-Key 2230 x 1 (PCIe, USB2.0)
OTHERS FPC x 1 (PCI x 4 Gen4, Only support Graphic or NVME)
ENVIRONMENT & CERTIFICATION
OPERATING TEMPERATURE 32°F ~ 140°F (0°C ~ 60°C) or -40°F ~ 185°F (-40°C~85°C)
STORAGE TEMPERATURE -40°F ~ 185°F (-40°C ~ 85°C)
OPERATING HUMIDITY 0% ~ 90% relative humidity, non-condensing
MTBF (HOURS) TBD
EMC CE/FCC Class A
