Description

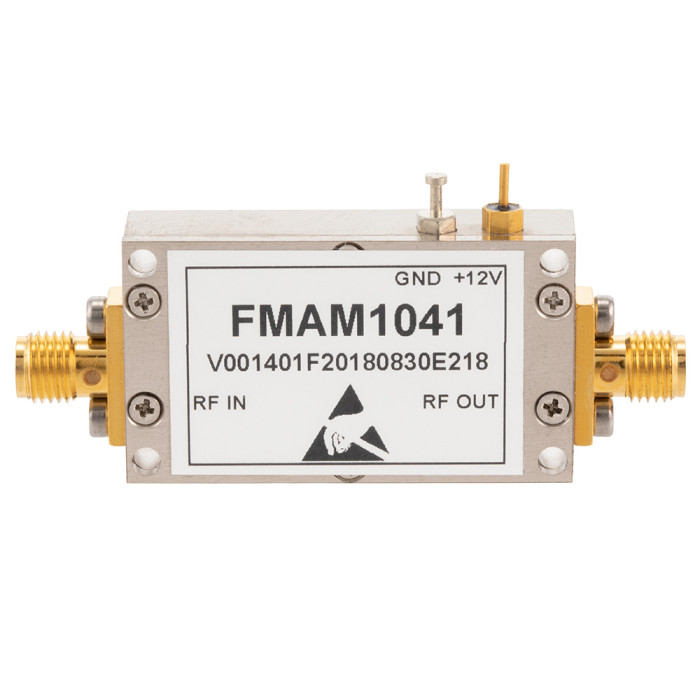

L'amplificateur à faible bruit (LNA) Fairview RF est une version de puissance moyenne fabriquée avec des connecteurs SMA.
Notre conception a un gain typique de 9 dB à 61,5 dB. Celui-ci est notamment construit pour une fréquence minimale de 0,01 MHz et maximale de 40 GHz.
Caractéristiques :
- Gamme de fréquences de 0,01 MHz à 40 GHz
- Entrée et sortie appariées 50 Ohm
- Température de fonctionnement de -40 à 75°C
- Stabilité inconditionnelle
- Alimentation positive DC unique
- Régulateur de tension intégré
Applications :
- Applications de laboratoire
- Laboratoires de R&D
- Systèmes radar
- Infrastructure télécom
- Instrumentation de test
- Systèmes de communication
- Communication sans fil à usage général
- Systèmes radio hyperfréquences
- Stations de base cellulaires
- Amplificateur à faible bruit
- Amplification à usage général
- Bloc de gain à large bande
- Amplificateur IF/amplificateur pilote RF
- Frontaux RF à large bande
- Pré-amplification RF
- Fixe et mobile terrestre
Versions disponibles :
Select |
Design
|
Frequency, Min (GHz)
|
Frequency, Max (GHz)
|
Gain, Typical (dB)
|
Gain Flatness (dB)
|
P1dB (dBm)
|
|
FMAM1000
|
Low Noise
|
1
|
2
|
N/A
|
N/A
|
10
|
|
FMAM1009
|
Low Noise
|
0.01
|
3
|
34
|
0.75
|
10
|
|
FMAM1019
|
High Gain
|
1
|
2
|
40
|
1
|
N/A
|
|
FMAM1023
|
Low Noise
|
1.2
|
1.4
|
N/A
|
0.75
|
10
|
|
FMAM1024
|
N/A
|
1.2
|
1.4
|
N/A
|
0.75
|
15
|
|
FMAM1025
|
Low Noise
|
8
|
12
|
N/A
|
N/A
|
N/A
|
|
FMAM1026
|
Low Noise
|
8
|
12
|
N/A
|
N/A
|
N/A
|
|
FMAM1027
|
Low Noise
|
8
|
12
|
N/A
|
N/A
|
N/A
|
|
FMAM1028
|
Low Noise
|
1.2
|
1.6
|
40
|
N/A
|
N/A
|
|
FMAM1030
|
Low Phase Noise
|
2
|
18
|
12.5
|
N/A
|
N/A
|
|
FMAM1031
|
Low Noise
|
1
|
12
|
16
|
N/A
|
N/A
|
|
FMAM1033
|
Low Phase Noise
|
7
|
11
|
9
|
N/A
|
N/A
|
|
FMAM1035
|
Low Phase Noise
|
3
|
8
|
11
|
N/A
|
N/A
|
|
FMAM1041
|
Low Noise
|
2
|
4
|
40
|
N/A
|
12
|
|
FMAM1042
|
Low Noise
|
0.05
|
2
|
27
|
N/A
|
20
|
|
FMAM1043
|
Low Noise
|
0.01
|
0.25
|
17
|
0.5
|
21
|
|
FMAM1044
|
Low Noise
|
0.01
|
0.55
|
29.7
|
0.3
|
19
|
|
FMAM1045
|
Low Noise
|
0.001
|
0.5
|
33.5
|
1.5
|
13
|
|
FMAM1046
|
Low Noise
|
0.00001
|
0.5
|
45
|
N/A
|
13
|
|
FMAM1047
|
Low Noise
|
0.00003
|
0.6
|
50
|
1.2
|
14
|
|
FMAM1048
|
Low Noise
|
0.01
|
0.8
|
42
|
0.7
|
17
|
|
FMAM1049
|
Low Noise
|
0.01
|
1
|
32
|
N/A
|
12
|
|
FMAM1050
|
Low Noise
|
0.05
|
1
|
18
|
N/A
|
16
|
|
FMAM1051
|
Low Noise
|
0.02
|
1
|
30
|
0.5
|
18
|
|
FMAM1052
|
Low Noise
|
0.01
|
1
|
51
|
0.8
|
13
|
|
FMAM1053
|
Low Noise
|
0.05
|
1.2
|
47
|
1
|
13
|
|
FMAM1054
|
Low Noise
|
0.01
|
1.3
|
35
|
0.5
|
18
|
|
FMAM1055
|
Low Noise
|
0.00001
|
1.4
|
42
|
1
|
19
|
|
FMAM1057
|
Low Noise
|
0.02
|
1.5
|
20
|
1.2
|
17
|
|
FMAM1059
|
Low Noise
|
0.00001
|
2
|
28
|
2
|
13
|
|
FMAM1060
|
Low Noise
|
0.04
|
3
|
16
|
1.6
|
7
|
|
FMAM1061
|
Low Noise
|
0.02
|
4
|
25
|
0.7
|
16
|
|
FMAM1063
|
Low Noise
|
0.01
|
0.6
|
40.5
|
0.8
|
19
|
|
FMAM1064
|
Low Noise
|
0.02
|
1
|
30.5
|
0.8
|
19
|
|
FMAM1065
|
Low Noise
|
0.01
|
0.8
|
60
|
1.5
|
17
|
|
FMAM1066
|
Low Noise
|
0.1
|
2
|
61.5
|
1
|
19
|
|
FMAM1067
|
Low Noise
|
0.7
|
2.7
|
23
|
1
|
16
|
|
FMAM1068
|
Low Noise
|
0.5
|
4
|
24
|
2.5
|
17
|
|
FMAM1070
|
Low Noise
|
1
|
4
|
20
|
1.2
|
20
|
|
FMAM1071
|
Low Noise
|
6
|
18
|
26
|
2.5
|
10
|
|
FMAM1072
|
Low Noise
|
6
|
12
|
25
|
0.7
|
11
|
|
FMAM1073
|
GaN Input Protected Low Noise
|
5
|
13
|
44
|
2.5
|
19
|
|
FMAM1074
|
GaN Input Protected Low Noise
|
1
|
23
|
29
|
1.5
|
N/A
|
|
FMAM1075
|
GaN Input Protected Low Noise
|
1
|
7
|
42
|
3.5
|
N/A
|
|
FMAM1076
|
Waveguide Low Noise
|
26.5
|
40
|
46
|
2.5
|
16
|
|
FMAM1077
|
Waveguide Low Noise
|
27
|
40
|
35
|
3
|
6
|
|
FMAM3300
|
N/A
|
26.5
|
40
|
43
|
N/A
|
12
|
|
FMAM63000
|
Input Protected Low Noise
|
0.01
|
1
|
30
|
N/A
|
16
|
|
FMAM63001
|
Input Protected Low Noise
|
0.01
|
1
|
40
|
N/A
|
16
|
|
FMAM63002
|
Input Protected Low Noise
|
0.03
|
1.5
|
25
|
N/A
|
21
|
|
FMAM63003
|
Input Protected Low Noise
|
0.03
|
1.5
|
29
|
N/A
|
21.5
|
|
FMAM63004
|
Input Protected Low Noise
|
0.9
|
1.2
|
30
|
N/A
|
10
|
|
FMAM63005
|
Input Protected Low Noise
|
0.9
|
1.2
|
40
|
N/A
|
10
|
|
FMAM63006
|
Input Protected Low Noise
|
1
|
1.4
|
30
|
N/A
|
10
|
|
FMAM63007
|
Input Protected Low Noise
|
2
|
2.6
|
30
|
N/A
|
10
|
|
FMAM63008
|
Input Protected Low Noise
|
2.6
|
3.1
|
30
|
N/A
|
11
|
|
FMAM63009
|
Input Protected Low Noise
|
2.6
|
3.1
|
40
|
N/A
|
10
|
|
FMAM63010
|
Input Protected Low Noise
|
3.1
|
3.5
|
28
|
N/A
|
8
|
|
FMAM63011
|
Input Protected Low Noise
|
3.1
|
3.5
|
35
|
N/A
|
13
|
|
FMAM63012
|
Input Protected Low Noise
|
0.000001
|
1
|
40
|
N/A
|
13
|
|
FMAM63013
|
Input Protected Low Noise
|
0.000001
|
1
|
50
|
N/A
|
12
|
|
FMAM63014
|
Input Protected Low Noise
|
0.000001
|
1
|
60
|
N/A
|
15
|
|
FMAM63015
|
Input Protected Low Noise
|
0.1
|
18
|
38
|
N/A
|
16
|
|
FMAM63016
|
Input Protected Low Noise
|
0.02
|
3
|
25
|
N/A
|
12
|
|
FMAM63017
|
Input Protected Low Noise
|
0.03
|
3
|
30
|
N/A
|
13
|
|
FMAM63018
|
Input Protected Low Noise
|
0.01
|
6
|
30
|
N/A
|
12.5
|
|
FMAM63019
|
Input Protected Low Noise
|
2
|
6
|
40
|
N/A
|
12
|
|
FMAM63020
|
Input Protected Low Noise
|
0.1
|
18
|
33
|
N/A
|
18
|
|
FMAM63021
|
Input Protected Low Noise
|
26.5
|
40
|
35
|
N/A
|
9
|
