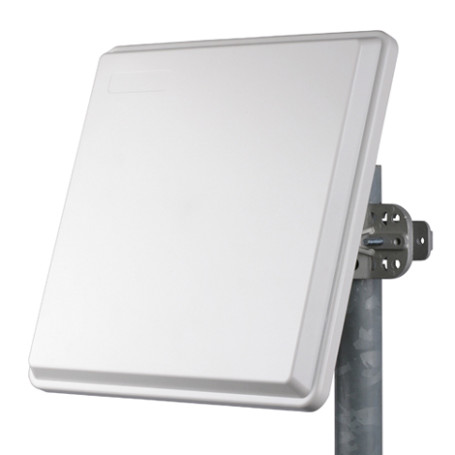

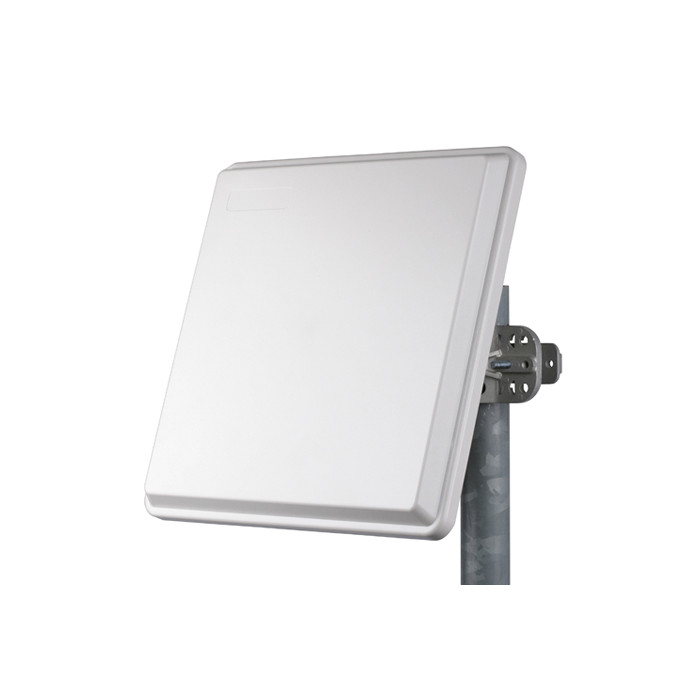

Electrical |
Frequency Range |
5.0-6.0 GHz |
VSWR typ. |
02:01 |
Polarization |
dual pol - Vertical & Horizontal |
3 dB Beam-Width, Azimuth, typ. |
15°- 20° |
3 dB Beam-Width, Elevation, typ. |
8° - 10° |
Side Lobes, typ. |
-10 dB |
Cross Polarization, typ. |
-20 dB |
Front to Back Ratio, min. |
-30 dB |
Port to Port Isolation, typ. |
-25 dB |
Input Impedance |
50 Ohm |
Lightning Protection |
DC grounded |
Azimuth scan step |
(3-7)° |
Azimuth beam control range * |
+/-45° * |
Modes (External control) |
Rx or Tx, Beamforming or Broadcast |
Beamforming (V&H) Gain of passive antenna part, typ. |
21dBi |
Beamforming (V&H) RX Mode: Gain with LNA's (Broadside), typ. |
32dBi |
Beamforming (V&H) RX Mode: Noise figure (Rx channel), typ. |
5-6 dB |
Beamforming (V&H) TX Mode: Output Operating RF Power (Output PA), typ |
19-23dBm |
Beamforming (V&H) TX Mode: Gain with PA (Broadside), typ. |
40dBi |
Broadcast (V&H) Gain of passive antenna part, typ. |
15dBi |
Broadcast (V&H) Azimuth 3dB Beam width |
60°-70° |
Broadcast (V&H) Azimuth 5dB Beam width |
90°-100° |
Broadcast (V&H) RX Mode: Gain with LNA's, typ. |
33dBi |
Broadcast (V&H) TX Mode: Output Operating RF Power (Output PA), typ. |
19-23dBm |
Broadcast (V&H) TX Mode: Gain with PA, typ. |
34dBi |
Max Input RF Power (damage) |
18dBm |
Beam and Modes selection time, typ. |
1-2 us |
External Power supply |
+5V ; PoE (+48 ?) |
External control interface |
GPIO (7 wires) |
Mechanical |
Dimensions (HxWxD) |
370x370x60mm (TBD) |
Weight |
TBD |
Connector |
SMA Type Female |
DC connectors |
TBD |
Radome |
UV Protected Polycarbonate, white |
Mount |
Operating Temperature |
Environmental |
Operating Temp Range |
-20°C to +60°C |
Water Proofing |
IP-67 |
Salt Fog |
IEC 68-2-11 |
Dynamics |
IEC 60721-3-4 |
Humidity |
ETS 300 019-1-4, EN 302 085 (annex A.1.1) |
* - For Azimuth beam control range +/- (30-45)° : Gain = Gain, typ. (~3) dB; Side Lobes < -(1-3)dB. |
