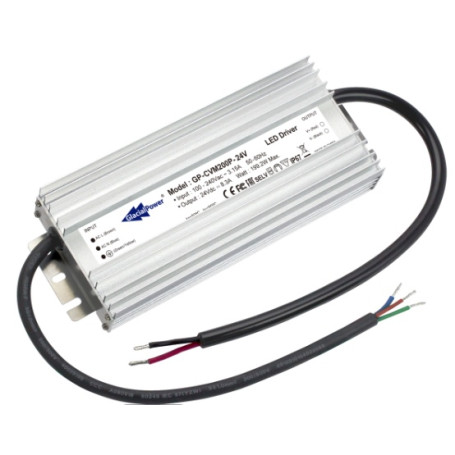

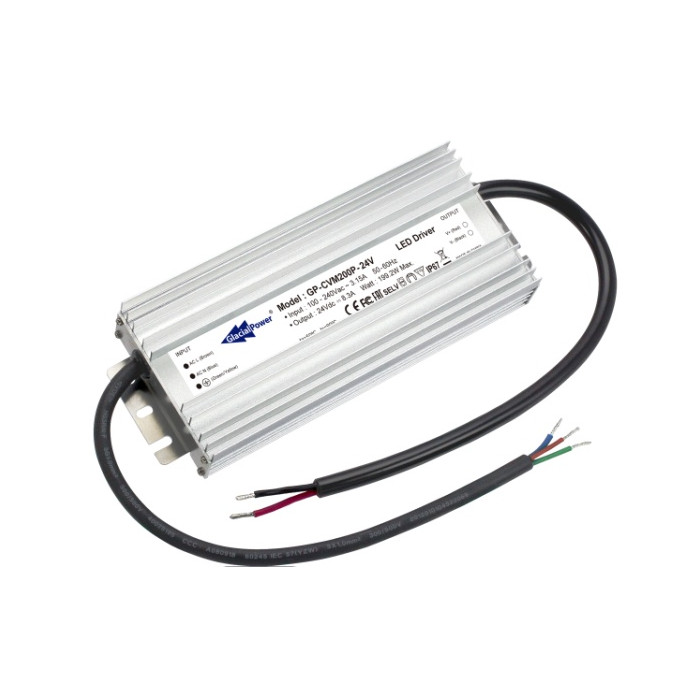

Driver de LED, boîtier métallique (PFC, IP67), 200W, 12-48 V : Série GP-CVM200P | GLACIAL POWER

Convient aux bandes de LED et aux applications de signalisation mobile.

Caractéristiques :

Références et spécifications :

Model No.		GP‐CVM200P‐12V		GP‐CVM200P‐24V		GP‐CVM200P‐36V	GP‐CVM200P‐48V
Output	DC Voltage	12V		24V		36V	48V
	Rated Current	0‐16.7A		0‐8.3A		0‐5.5A	0‐4.15A
	Rated Power	200.4W		199.2W		198W	199.2W
	Ripple &Noise (Max.) Note.2	350mV		350mV		400mV	500mV
	Efficiency at 230Vac (Typ.)	92.5%		93%		93%	93%
	Voltage Tolerance Note.3	± 5%		± 5%		± 5%	± 5%
	Set up time (Max.)	0.5s / 230Vac, 1s / 115Vac, at full load.
Input	Rated Voltage	100 ~ 240Vac
	Voltage Range	90 ~ 264Vac
	Frequency Range	47 Hz ~ 63 Hz
	AC Current (Max.)	3A at 115Vac / 1.5A at 230Vac
	Power Factor	>0.98 at 115Vac / >0.94 at 230Vac at full load. PF≧0.9 at 70% load
	Total Harmonic Distortion	THD < 20% at 230Vac, full load. Note 4
	Inrush Current (Max.)	Cold Start 90A (Td=728us measured at 50% Ipeak) at 230VAC
	Max. Number of PSUs on Circuit Breaker	B type : 1 unit (10A) / 1 unit (16A) / 2 units (25A), C type : 1 unit (10A) / 3 units (16A) / 4 units (25A), D type : 6 units (16A) / 9 units (25A) at 230VAC
	Leakage Current	<1mA / 240Vac
Protections	Over Current	105~180% rated current. Type: Auto recover after fault condition disappeared.
	Short Circuit	Type: Hiccup mode & recovers after fault condition disappeared.
	Over Voltage	13~19V	26~38V		38~50V		50~65V
		Type: Hiccup mode (Auto recovers after fault condition disappeared).
	Over Temperature	Tcase: 100°C ± 10°C
		Type: Shutdown mode (re‐power on to recover).
