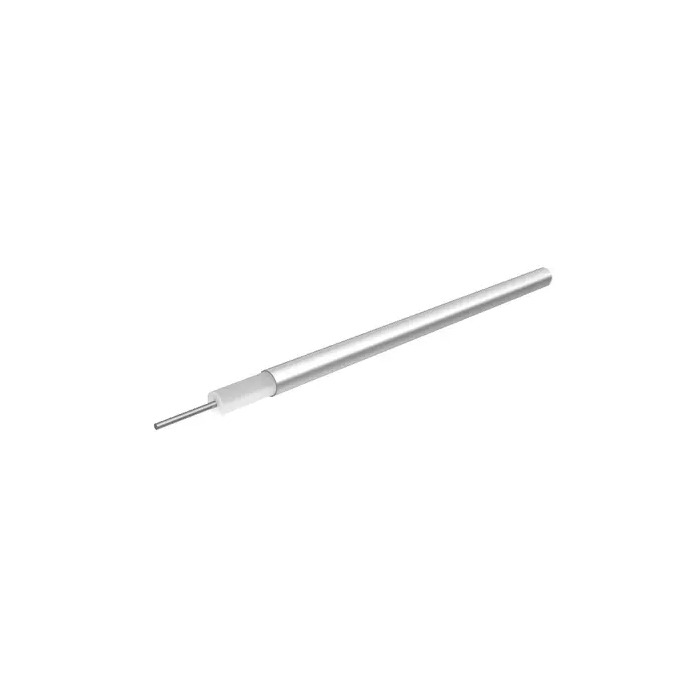

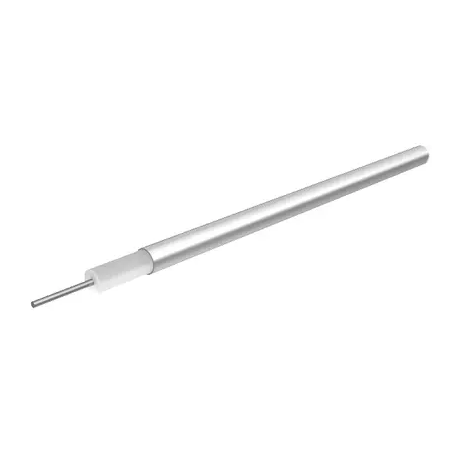

Semi-rigide (RG402) 50 Ohm, 33GHz, 125°C, ø3.58 mm : SR_141_CU_TP | HUBER+SUHNER

Semi-rigide : câbles hyperfréquences semi-rigides sans gaine et formables

Caractéristiques :

Spécificités :

Impedance	50 + +/-1+
Operating frequency	≤ 33 GHz
Capacitance	98.1 pF
Velocity of signal propagation	69.5 %
Signal delay	4.8 ns/m
Screening e8ectiveness	120 dB at frequency 0.1 GHz ... 18GHz
Insulation resistance	100000000 MΩ*m
Operating Voltage (at sea level)	≤ 1.9 kVrms
Test voltage (50 Hz/1 min)	≤ 5 kV
