Description

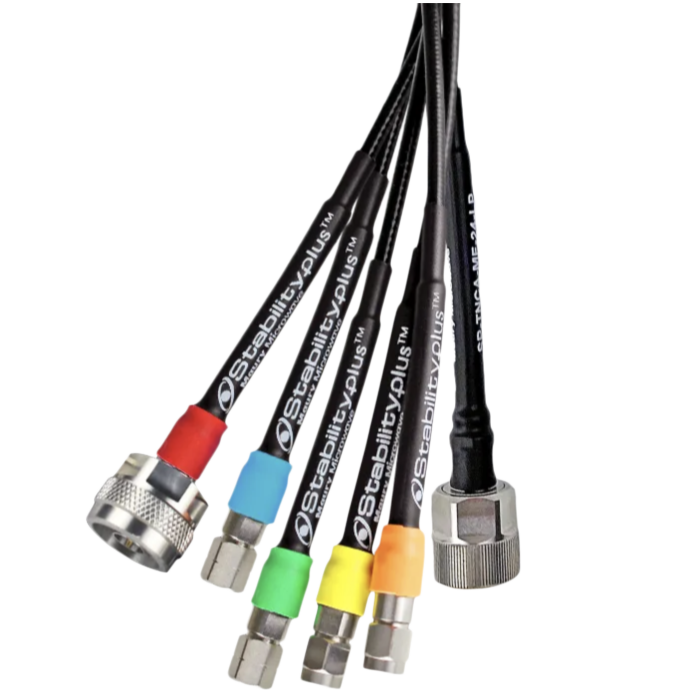

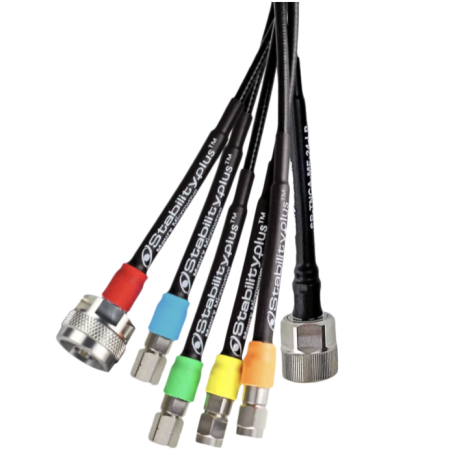

Le modèle à profil bas de StabilityPlus™ partage les mêmes performances électriques de pointe que le StabilityPlus™, et sa légèreté, sa flexibilité supérieure et son petit facteur de forme le rendent idéal pour une utilisation quotidienne avec des applications à haute densité (c’est-à-dire, PXI, matrices de commutation…) et fragiles (c’est-à-dire, matériaux de substrat souples). Le modèle à profil bas de StabilityPlus™ utilise des connecteurs codés par couleur pour réduire le potentiel d’erreurs de connexion et est disponible avec des connecteurs TNCA, SMA, Type N, 7mm, 3.5mm, 2.92mm, 2.4mm et 1.85mm jusqu’à 67 GHz.
Principales caractéristiques :
- Performances électriques stables et reproductibles
- Profil compact pour les exigences d’espacement serré
- Flexible pour faciliter l’installation facile
- Léger pour une utilisation avec des DUTs plus petits
- Connecteurs codés par couleur pour éviter les dommages causés par des erreurs de connexion-
Spécificités :
|
NAME
|
FREQUENCY RANGE (GHZ)
|
INSERTION LOSS (DB/FT)
|
CONNECTOR 1
|
GENDER 1
|
CONNECTOR 2
|
GENDER 2
|
LENGTH (IN)
|
CRUSH RESISTANCE (LBF/IN)
|
FLEX LIFE CYCLES
|
CONNECTOR MATING CYCLES
|
| SP-24-MF-24-LP |
DC-50 |
1.00 |
2.4mm |
Male |
2.4mm |
Female |
24 |
23 |
>15,000 |
>5,000 |
| SP-24-MF-36-LP |
DC-50 |
1.00 |
2.4mm |
Male |
2.4mm |
Female |
36 |
23 |
>15,000 |
>5,000 |
| SP-24-MF-48-LP |
DC-50 |
1.00 |
2.4mm |
Male |
2.4mm |
Female |
48 |
23 |
>15,000 |
>5,000 |
| SP-24-MM-12-LP |
DC-50 |
1.00 |
2.4mm |
Male |
2.4mm |
Male |
12 |
23 |
>15,000 |
>5,000 |
| SP-24-MM-24-LP |
DC-50 |
1.00 |
2.4mm |
Male |
2.4mm |
Male |
24 |
23 |
>15,000 |
>5,000 |
| SP-24-MM-36-LP |
DC-50 |
1.00 |
2.4mm |
Male |
2.4mm |
Male |
36 |
23 |
>15,000 |
>5,000 |
| SP-24-MM-48-LP |
DC-50 |
1.00 |
2.4mm |
Male |
2.4mm |
Male |
48 |
23 |
>15,000 |
>5,000 |
| SP-24-MM-60-LP |
DC-50 |
1.00 |
2.4mm |
Male |
2.4mm |
Male |
60 |
23 |
>15,000 |
>5,000 |
| SP-35-MF-24-LP |
DC-26.5 |
0.72 |
3.5mm |
Male |
3.5mm |
Female |
24 |
23 |
>15,000 |
>5,000 |
| SP-35-MF-36-LP |
DC-26.5 |
0.72 |
3.5mm |
Male |
3.5mm |
Female |
36 |
23 |
>15,000 |
>5,000 |
| SP-35-MF-48-LP |
DC-26.5 |
0.72 |
3.5mm |
Male |
3.5mm |
Female |
48 |
23 |
>15,000 |
>5,000 |
| SP-35-MF-60-LP |
DC-26.5 |
0.72 |
3.5mm |
Male |
3.5mm |
Female |
60 |
23 |
>15,000 |
>5,000 |
| SP-35-MM-12-LP |
DC-26.5 |
0.72 |
3.5mm |
Male |
3.5mm |
Male |
12 |
23 |
>15,000 |
>5,000 |
| SP-35-MM-24-LP |
DC-26.5 |
0.72 |
3.5mm |
Male |
3.5mm |
Male |
24 |
23 |
>15,000 |
>5,000 |
| SP-35-MM-36-LP |
DC-26.5 |
0.72 |
3.5mm |
Male |
3.5mm |
Male |
36 |
23 |
>15,000 |
>5,000 |
| SP-35-MM-48-LP |
DC-26.5 |
0.72 |
3.5mm |
Male |
3.5mm |
Male |
48 |
23 |
>15,000 |
>5,000 |
| SP-35-MM-60-LP |
DC-26.5 |
0.72 |
3.5mm |
Male |
3.5mm |
Male |
60 |
23 |
>15,000 |
>5,000 |
| SP-185-MF-24-LP |
DC-67 |
1.79 |
1.85mm |
Male |
1.85mm |
Female |
24 |
23 |
>15,000 |
>5,000 |
| SP-185-MF-36-LP |
DC-67 |
1.79 |
1.85mm |
Male |
1.85mm |
Female |
36 |
23 |
>15,000 |
>5,000 |
| SP-185-MF-48-LP |
DC-67 |
1.79 |
1.85mm |
Male |
1.85mm |
Female |
48 |
23 |
>15,000 |
>5,000 |
| SP-185-MM-12-LP |
DC-67 |
1.79 |
1.85mm |
Male |
1.85mm |
Male |
12 |
23 |
>15,000 |
>5,000 |
| SP-185-MM-24-LP |
DC-67 |
1.79 |
1.85mm |
Male |
1.85mm |
Male |
24 |
23 |
>15,000 |
>5,000 |
| SP-185-MM-36-LP |
DC-67 |
1.79 |
1.85mm |
Male |
1.85mm |
Male |
36 |
23 |
>15,000 |
>5,000 |
| SP-185-MM-48-LP |
DC-67 |
1.79 |
1.85mm |
Male |
1.85mm |
Male |
48 |
23 |
>15,000 |
>5,000 |
| SP-292-MF-24-LP |
DC-40 |
0.89 |
2.92mm |
Male |
2.92mm |
Male |
24 |
23 |
>15,000 |
>5,000 |
| SP-292-MF-36-LP |
DC-40 |
0.89 |
2.92mm |
Male |
2.92mm |
Male |
36 |
23 |
>15,000 |
>5,000 |
| SP-292-MF-48-LP |
DC-40 |
0.89 |
2.92mm |
Male |
2.92mm |
Male |
48 |
23 |
>15,000 |
>5,000 |
| SP-292-MM-12-LP |
DC-40 |
0.89 |
2.92mm |
Male |
2.92mm |
Male |
12 |
23 |
>15,000 |
>5,000 |
| SP-292-MM-24-LP |
DC-40 |
0.89 |
2.92mm |
Male |
2.92mm |
Male |
24 |
23 |
>15,000 |
>5,000 |
| SP-292-MM-36-LP |
DC-40 |
0.89 |
2.92mm |
Male |
2.92mm |
Male |
36 |
23 |
>15,000 |
>5,000 |
| SP-292-MM-48-LP |
DC-40 |
0.89 |
2.92mm |
Male |
2.92mm |
Male |
48 |
23 |
>15,000 |
>5,000 |
| SP-292-MM-60-LP |
DC-40 |
0.89 |
2.92mm |
Male |
2.92mm |
Male |
60 |
23 |
>15,000 |
>5,000 |
| SP-24292-FM24LP |
DC-40 |
0.89 |
2.4mm |
Female |
2.92mm |
Male |
24 |
23 |
>15,000 |
>5,000 |
| SP-24292-FM36LP |
DC-40 |
0.89 |
2.4mm |
Female |
2.92mm |
Male |
36 |
23 |
>15,000 |
>5,000 |
| SP-24292-FM48LP |
DC-40 |
0.89 |
2.4mm |
Female |
2.92mm |
Male |
48 |
23 |
>15,000 |
>5,000 |
| SP-24292-MM24LP |
DC-40 |
0.89 |
2.4mm |
Male |
2.92mm |
Male |
24 |
23 |
>15,000 |
>5,000 |
| SP-24292-MM36LP |
DC-40 |
0.89 |
2.4mm |
Male |
2.92mm |
Male |
36 |
23 |
>15,000 |
>5,000 |
| SP-24292-MM48LP |
DC-40 |
0.89 |
2.4mm |
Male |
2.92mm |
Male |
48 |
23 |
>15,000 |
>5,000 |
| SP-SMA-MM-12-LP |
DC-26.5 |
0.72 |
SMA |
Male |
SMA |
Male |
12 |
23 |
>15,000 |
>5,000 |
| SP-SMA-MM-24-LP |
DC-26.5 |
0.72 |
SMA |
Male |
SMA |
Male |
24 |
23 |
>15,000 |
>5,000 |
| SP-SMA-MM-36-LP |
DC-26.5 |
0.72 |
SMA |
Male |
SMA |
Male |
36 |
23 |
>15,000 |
>5,000 |
| SP-SMA-MM-48-LP |
DC-26.5 |
0.72 |
SMA |
Male |
SMA |
Male |
48 |
23 |
>15,000 |
>5,000 |
| SP-SMA-MM-60-LP |
DC-26.5 |
0.72 |
SMA |
Male |
SMA |
Male |
60 |
23 |
>15,000 |
>5,000 |
| SP-SMA-MM-72-LP |
DC-26.5 |
0.72 |
SMA |
Male |
SMA |
Male |
72 |
23 |
>15,000 |
>5,000 |
| SP-SMA-MM-78-LP |
DC-26.5 |
0.72 |
SMA |
Male |
SMA |
Male |
78 |
23 |
>15,000 |
>5,000 |
| SP-TNCA-MM-36-LP |
DC-18 |
0.61 |
TNCA |
Male |
TNCA |
Male |
36 |
23 |
>15,000 |
>5,000 |
| SP-TNCA-MM-48-LP |
DC-18 |
0.61 |
TNCA |
Male |
TNCA |
Male |
48 |
23 |
>15,000 |
>5,000 |
| SP-TNCA-MM-60-LP |
DC-18 |
0.61 |
TNCA |
Male |
TNCA |
Male |
60 |
23 |
>15,000 |
>5,000 |
| SP-TNCA-MM-72-LP |
DC-18 |
0.61 |
TNCA |
Male |
TNCA |
Male |
72 |
23 |
>15,000 |
>5,000 |
| SP-TNCA-MM-78-LP |
DC-18 |
0.61 |
TNCA |
Male |
TNCA |
Male |
78 |
23 |
>15,000 |
>5,000 |
