Description

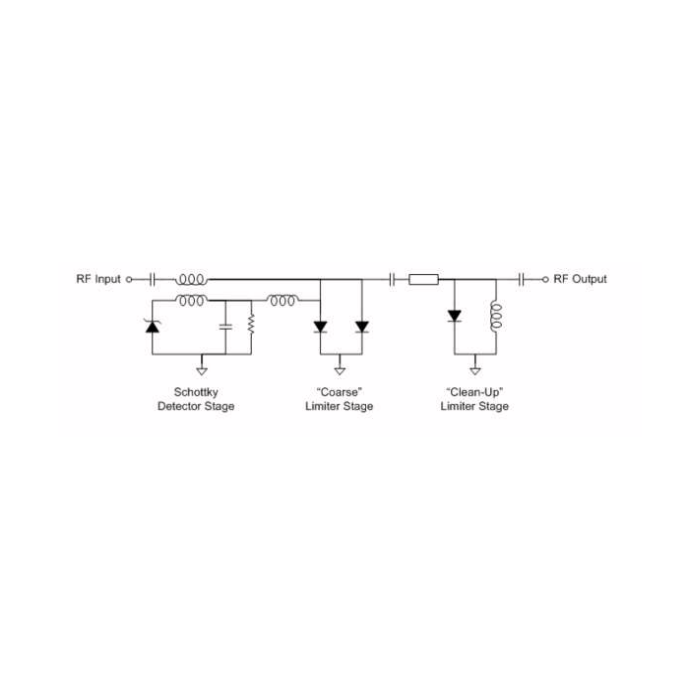

RFuW Engineering propose une large gamme de limiteurs RF passifs et quasi-actifs de haute puissance qui fonctionnent dans les bandes de fréquences HF à Ku avec des capacités de gestion de la puissance allant jusqu'à +60 dBm. Ces limiteurs RF offrent une protection "Always On" qui assure une protection complète des récepteurs RF sensibles, même lorsque le système est éteint.
Modèles et spécificités :
| Limiter Module |
Limiter Description |
Frequency (GHz) |
Insertion Loss (dB) |
Return Loss (dB) |
Cw Input Power (Dbm) |
Peak Input Power ( Dbm) |
Flat Leakage Power (dBm) |
Spike Leakage (ergs) |
Recovery Time (nsec) |
Status |
| RFLM-200802MA-299 |
Passive, SMT |
0.020 - 8.0 |
1.0 |
15 |
44 |
51 |
20 |
0.2 |
500 |
RELEASED |
| RFLM-300301QC-290 |
Quasi-Active, SMT |
0.03 - 0.3 |
0.7 |
15 |
56 |
56 |
19 |
0.5 |
7,5 |
TBD |
| RFLM-300511QA-392 |
Quasi-Active, SMT |
0.03 - 0.5 |
0.7 |
13 |
56 |
60 |
19 |
0.5 |
5 |
RELEASED |
| RFLM-301511QC-290 |
Quasi-Active, SMT |
0.3 - 0.5 |
0.7 |
15 |
56 |
56 |
19 |
0.5 |
5 |
RELEASED |
| RFLM-301511QC-392 |
Quasi-Active, SMT |
0.3 - 0.5 |
0.7 |
15 |
56 |
56 |
19 |
0.5 |
7,5 |
RELEASED |
| RFLM-401102QA-290 |
Quasi-Active, SMT |
0.4 - 1.0 |
1.4 |
15 |
50 |
60 |
18 |
0.2 |
5 |
TBD |
| RFLM-401102QB-290 |
Quasi-Active, SMT |
0.4 - 1.0 |
0.3 |
17 |
50 |
60 |
18 |
0.50 |
5 |
TBD |
| RFLM-401102QC-290 |
Quasi-Active |
0.4 - 1.0 |
0.3 |
17 |
50 |
60 |
18 |
0.5 |
5 |
TBD |
| RFLM-501202LC-299 |
Passive, SMT |
0.4 - 2.5 |
0.4 |
20 |
36 |
51 |
21 |
0.2 |
750 |
RELEASED |
| RFLM-501202MC-299 |
Passive, SMT |
0.25 - 3.5 |
0.4 |
20 |
45 |
54 |
21 |
0.3 |
500 |
RELEASED |
| RFLM-052402QC-290 |
Quasi-Active, SMT |
0.5 - 4.0 |
0.8 |
18 |
53 |
63 |
17 |
0.5 |
1,5 |
RELEASED |
| RFLM-961122MC-299 |
Passive, SMT |
0.97 - 1.2 |
0.3 |
17 |
48 |
60 |
14 |
0.3 |
200 |
RELEASED |
| RFLM-202602LC-299 |
Passive, SMT |
2.0 - 6.0 |
0.8 |
14 |
35 |
50 |
18 |
0.1 |
100 |
TBD |
| RFLM-961122XC-392 |
Quasi-Active, SMT |
0.96 - 1.2 |
0.7 |
15 |
53 |
63 |
14 |
0.5 |
1 |
RELEASED |
| RFLM-011014QC-290 |
Quasi-Active, SMT |
1.0 - 2.0 |
0.25 |
20 |
56 |
56 |
17 |
0.5 |
1,5 |
RELEASED |
| RFLM-202602LA-299 |
Passive, SMT |
2.0 - 6.0 |
0.8 |
14 |
35 |
50 |
18 |
0.1 |
100 |
TBD |
| RFLM-102202HC-290 |
Quasi-Active, SMT |
1.0 - 2.0 |
0.7 |
15 |
47 |
53 |
17 |
0.3 |
3 |
TBD |
| RFLM-102202QA-290 |
Quasi-Active, SMT |
0.4 - 2.0 |
0.25 |
20 |
50 |
60 |
17 |
0.5 |
1,5 |
RELEASED |
| RFLM-102202QB-290 |
Quasi-Active, SMT |
0.4 - 2.0 |
0.25 |
20 |
50 |
60 |
17 |
0.5 |
1,5 |
RELEASED |
| RFLM-102202QC-290 |
Quasi-Active, SMT |
0.4 - 2.0 |
0.25 |
20 |
50 |
60 |
17 |
0.5 |
1,5 |
RELEASED |
| RFLM-102202XA-290 |
Quasi-Active, SMT |
0.5 - 2.0 |
0.7 |
15 |
57 |
60 |
20 |
0.5 |
1 |
RELEASED |
| RFLM-102402QE-290 |
Quasi-Active, SMT |
1.0 - 4.0 |
0.35 |
17 |
50 |
60 |
15 |
0.5 |
1 |
RELEASED |
| RFLM-102402QF-290 |
Quasi-Active, SMT |
1.0 - 4.0 |
0.35 |
17 |
50 |
60 |
15 |
0.5 |
1 |
RELEASED |
| RFLM-252352QA-290 |
Quasi-Active, SMT |
2.5 - 3.5 |
0.6 |
15 |
47 |
62 |
23 |
0.3 |
1,5 |
TBD |
| RFLM-252352QB-290 |
Quasi-Active, SMT |
2.5 - 3.5 |
0.6 |
15 |
47 |
62 |
23 |
0.3 |
1,5 |
TBD |
| RFLM-252352QC-290 |
Quasi-Active, SMT |
2.5 - 3.5 |
0.6 |
15 |
47 |
62 |
23 |
0.3 |
1,5 |
TBD |
| RFLM-262322HC-151 |
Passive, SMT |
2.6 - 3.2 |
0.65 |
18 |
46 |
57 |
13 |
0.5 |
100 |
RELEASED |
| RFLM-011015QF-290 |
Quasi-Active, SMT |
2.0 - 4.0 |
0.5 |
14 |
50 |
56 |
14 |
0.5 |
750 |
RELEASED |
| RFLM-202402QA-290 |
Quasi-Active, SMT |
2.0 - 4.0 |
0.5 |
14 |
50 |
60 |
20 |
0.5 |
750 |
RELEASED |
| RFLM-202402QB-290 |
Quasi-Active, SMT |
2.0 - 4.0 |
0.5 |
14 |
50 |
60 |
20 |
0.5 |
750 |
RELEASED |
| RFLM-202402QC-290 |
Quasi-Active, SMT |
2.0 - 4.0 |
0.5 |
14 |
50 |
60 |
20 |
0.5 |
750 |
RELEASED |
| RFLM-202402QE-290 |
Quasi-Active, SMT |
2.0 - 4.0 |
0.5 |
17 |
50 |
60 |
14 |
0.5 |
1 |
RELEASED |
| RFLM-202402QF-290 |
Quasi-Active, SMT |
2.0 - 4.0 |
0.5 |
17 |
50 |
60 |
14 |
0.5 |
1 |
RELEASED |
| RFLM-202602HA-299 |
Passive, SMT |
2.0 - 6.0 |
0.85 |
14 |
35 |
50 |
18 |
0.1 |
750 |
TBD |
| RFLM-202602HC-299 |
Passive, SMT |
2.0 - 6.0 |
0.85 |
750 |
35 |
50 |
18 |
0.1 |
750 |
TBD |
| RFLM-502602HC-491 |
Passive, SMT |
5.0 - 6.0 |
0.6 |
15 |
48 |
57 |
14 |
0.5 |
700 |
TBD |
| RFLM-202802LC-299 |
Passive, SMT |
2.0 - 8.0 |
1.1 |
15 |
36 |
50 |
19 |
0.2 |
750 |
RELEASED |
| RFLM-202802MC-299 |
Passive, SMT |
2.0 - 8.0 |
0.6 |
15 |
45 |
53 |
20 |
0.3 |
1,5 |
RELEASED |
| RFLM-202802QA-290 |
Quasi-Active, SMT |
2.0 - 8.0 |
1.1 |
13 |
50 |
60 |
21 |
0.5 |
5 |
RELEASED |
| RFLM-202802QB-290 |
Quasi-Active, SMT |
2.0 - 8.0 |
1.1 |
13 |
50 |
60 |
21 |
0.5 |
5 |
RELEASED |
| RFLM-202802QC-290 |
Quasi-Active, SMT |
2.0 - 8.0 |
1.1 |
13 |
50 |
60 |
21 |
0.5 |
5 |
RELEASED |
| RFLM-872113HC-150 |
Passive, SMT |
8.7 - 10.7 |
1.0 |
15 |
42 |
46 |
14 |
0.5 |
500 |
RELEASED |
| RFLM-802123QC-291 |
Passive, SMT |
9.0 - 10.6 |
1.3 |
13 |
49 |
53 |
20 |
0.5 |
3 |
RELEASED |
| RFLM-143173HC-150 |
Passive, SMT |
14.0 - 17.0 |
1.2 |
15 |
46 |
50 |
14 |
0.5 |
700 |
Q3/22 |
