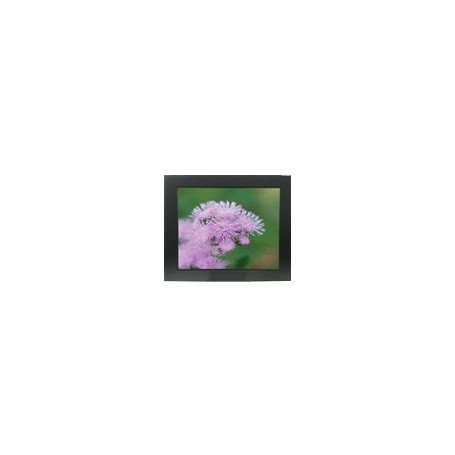

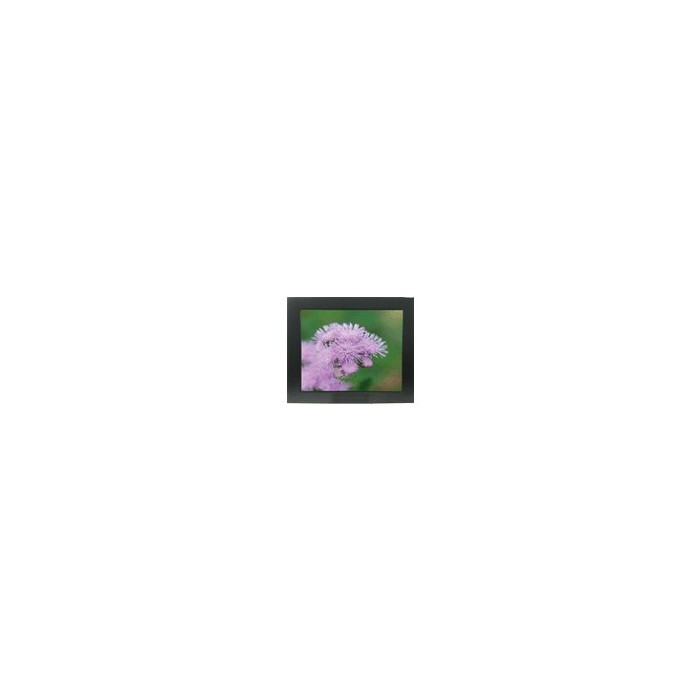

Open Frame+Front Bezel 19" : R19L300-OBA1/R19L340-OBA1 | WINMATE

Screen Size : 19"
Display Resolution (pixel) : 1280x1024
Contrast Ratio : 550:1 (typ.)
Brightness (CD/m^2) : 400 (typ.)

Specification
• Active Display Area (mm) : 376.32(H) x 301.06 (V)
• Pixel Pitch (mm) : 0.294(H) x 0.294(V)
• Display Resolution (pixel) : 1280x1024
• Contrast Ratio : 550:1 (typ.)
• Display Color : 16.2M (6 bits+FRC)
• Brightness (CD/m^2) : 400 (typ.)
• Viewing Angles (CR >=10) : -70~ 70 (H); -60 ~ 75 (V)
• Synchronization Range_Horizontal / Vertical : 31.5~80.0KHz / 60~75Hz
• Recommended Resolution : 1280x1024 @60Hz,75Hz
• Signal Connector : 15 pin D-sub
• Power Source : AC 100~240 V,Universal,±10%
• Power Consumption : 35 W typical, normal operation
• Power Management : VESA DPMS Compliant
• Plug & Play : VESA DDC 1/2B
• Video Input (optional) : S-Video,Composite
• DVI Input (optional) : Yes
• Support Video Signal Type : NTAC/PAL
• Optional Touch Screen : Resistive, Capacitive, SAW

Remark:R19L300 = VGA input only
R19L340 = VGA + Video input

*Due to Panel material's deviation, different panel supplier will set different specific variance range to optical characteristics. The factors of time used, Lamp current, Ambient temperature will influence the optical measurements.
