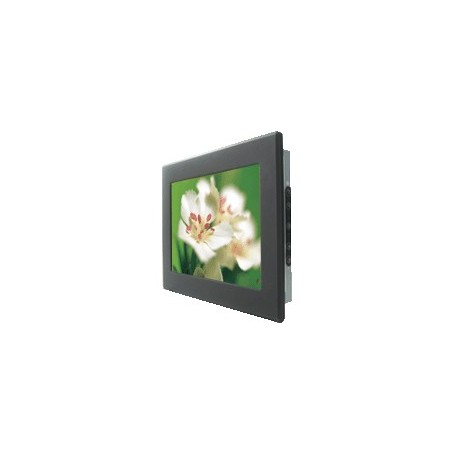

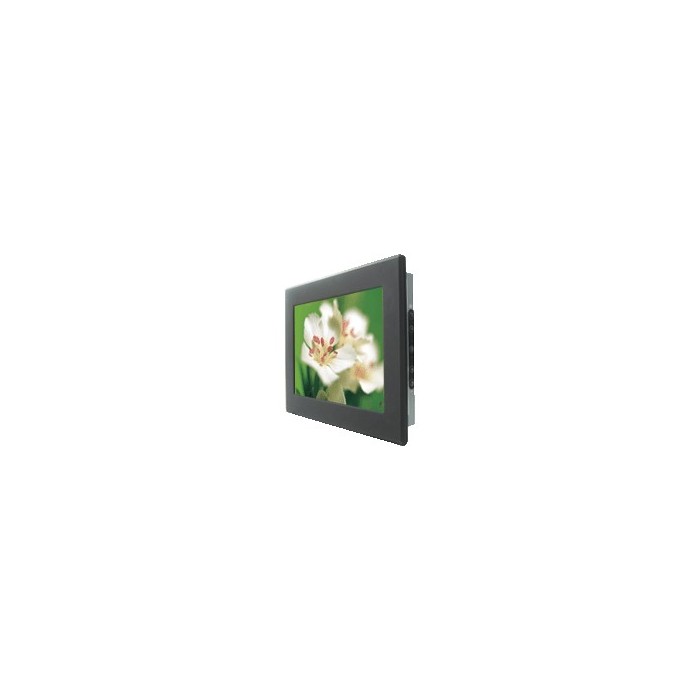

IP65 LCD Solution 12.1" : R12T600-IPM1/R12T630-IPM1 Agrandir l'image

IP65 LCD Solution 12.1" : R12T600-IPM1/R12T630-IPM1 | WINMATE

Screen Size : 12.1"Display Resolution (pixel) : 800x600Contrast Ratio : 500:1(typ.)Brightness (CD/m^2) : 350 (typ.)Specification • Active Display Area (mm) : 246.0(H)x184.5 (V) • Pixel Pitch (mm) : 0.3075 (H)x0.3075 (V) • Display Resolution (pixel) : 800x600 • Contrast Ratio : 500:1(typ.) •...

Téléchargement

Documentation R12T600-IPM1 et R12T630-IPM1

Téléchargez ce fichier (293.2k)

Description

Screen Size : 12.1"
Display Resolution (pixel) : 800x600
Contrast Ratio : 500:1(typ.)
Brightness (CD/m^2) : 350 (typ.)

Specification
 • Active Display Area (mm) : 246.0(H)x184.5 (V)
• Pixel Pitch (mm) : 0.3075 (H)x0.3075 (V)
• Display Resolution (pixel) : 800x600
• Contrast Ratio : 500:1(typ.)
• Display Color : 262,144 (6bits/color)
• Brightness (CD/m^2) : 350 (typ.)
• Viewing Angles (CR >=10) : -65~65 (H); -75~45 (V)
• Synchronization Range_Horizontal / Vertical : 31.5~46.9KHz / 60~75Hz
• Recommended Resolution : 800x600@60Hz, 75Hz
• Signal Connector : 15 pin D-sub
• Power Source : AC 100~240 V, Universal,±10%
• Power Consumption : 20 W typical, normal operation
• Power Management : VESA DPMS Compliant
• Plug & Play : VESA DDC 1/2B
• Video Input (optional) : S-Video, Composite
• DVI Input (optional) : No
• Support Video Signal Type : NTAC/PAL
• Optional Touch Screen : Resistive, Capacitive, SAW, IR

Remark:R12T600 = VGA input only
R12T630 = VGA + Video input

*Due to Panel material's deviation, different panel supplier will set different specific variance range to optical characteristics. The factors of time used, Lamp current, Ambient temperature will influence the optical measurements.
