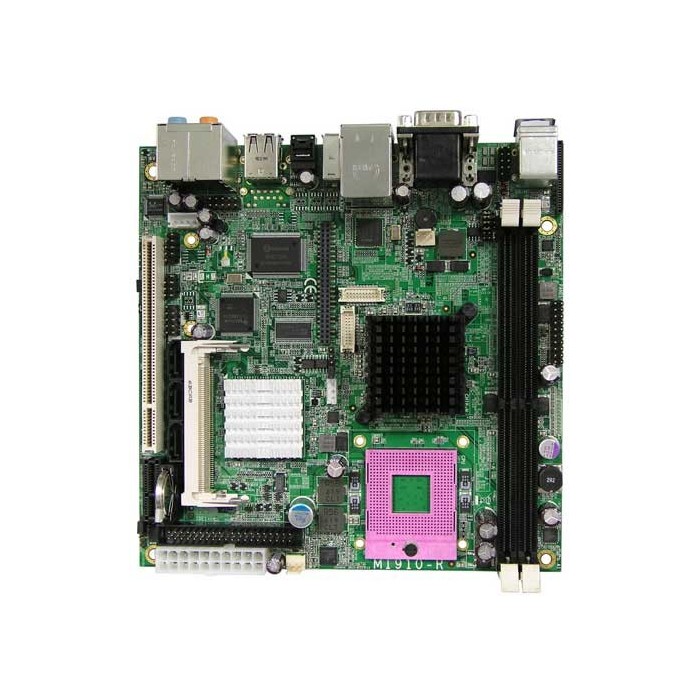

Description
FEATURES
• Supports Intel Core 2 Duo / Celeron M CPU
• Up to 2.4GHz, 533MHz/800MHz FSB
• DDR2 DIMM x 2, Max. 4GB
• Supports CRT, LVDS, optional DVI
• 10/100 BaseT LAN, Gigabit LAN or dual Gigabit LAN
• 2 x SATA II, 6 x USB 2.0, 2 x COM, 1394
• Watchdog timer, Digital I/O
• 1 x Mini PCI, 1 x PCI, 1 x PCI-E (x1)
SPECIFICATIONS
• CPU : Socket 478 for Intel Core 2 Duo, Celeron M, up to 2.4GHz
• CPU Front Side Bus ( FSB ) : 533MHz/800MHz
• Chipset : Intel GME965 chipset, ICH8M
• BIOS : Award BIOS, ACPI supported
• System Memory : Two DDR2 sockets supports up to 4GB DDR2 SDRAM, 533/667
DDR SDRAM
• Integrated VGA : Intel GME965 built-in Graphics Media Accelerator X3100,
supports CRT and LVDS, Supports DVMT 4.0 for memory allocation, Maximum shared
memory - 384MB
• LCD Interface : Supports 24-bit, single channel LVDS
• Primary LAN : Intel 82566MC/DC Gigabit LAN (MI910E and MI910EF)
• Secondary LAN : Optional, Marvell 88E8053 PCI Express Gigabit LAN (for
MI910EF, MI910EF supports dual Gigabit LAN)
• Audio : ICH8M built-in Intel High Definition audio + AC97 Codec ALC885
w/ 7.1 channels
• Multi I/O : Winbond W83627EHF: PS/2 Keyboard/Mouse, 2x serial (RS232)
& Hardware monitor (3 thermal inputs, 4 voltage monitor inputs, VID0-4 &
2 fan headers)
• IDE Interface : Built in ICH8M; One enhanced IDE channel supports, 2
IDE devices; supports UDMA33/66/100
• Serial Ports :Two COM ports (1x RS232, 1x RS232/422/485)
• Serial ATA II : Supports 2 ports
• 1394 : 2 ports (1 port @ edge, 1 via pin header)
• USB (2.0) : Supports 6 USB ports (4 ports + 2 ports via pin header)
• Keyboard and Mouse Connector : PS/2 type
• Watchdog Timer : Generates system reset; 256 levels
• Hardware Monitoring : Built in W83627EHF; monitors system/CPU temperature
and voltage status
• Digital I/O : 4 in / 4 out
• Expansion Slot : 1 Mini PCI, 1 PCI, 1 PCIe(x1)
• Form Factor : Mini-ITX Motherboard
• Dimensions : 170mm x 170mm
ENVIRONMENTAL FACTORS :
• Operating Temperature : 0°C~60°C (32°F~140°F)
• Storage Temperature : -20°C~80°C (-68°F~176°F)
• Relative Humidity :10%~90% (non-condensing)
