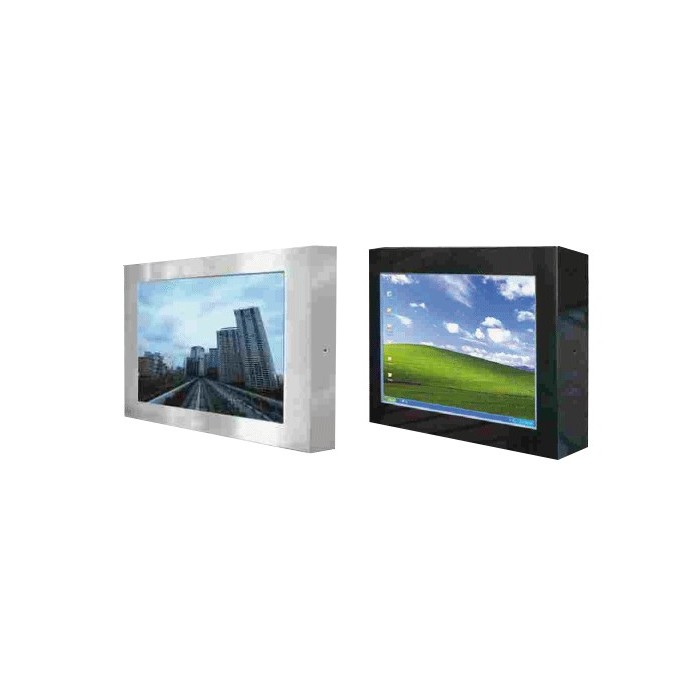

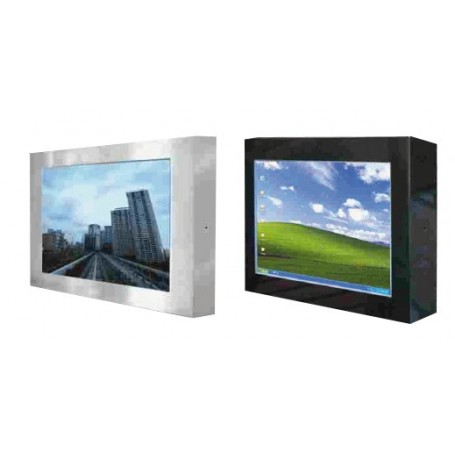

Full IP65 Panel PC 19” : R19I53S-65M1 Agrandir l'image

Full IP65 Panel PC 19” : R19I53S-65M1 | WINMATE

Produit Obsolète • Processor : Intel® Celeron® M 1.0GHz • System Memory : 1 x 200-pin DDR SO-DIMM, max.1GB (Default 256 MB) • Pixels : 1280x1024 • Contrast Ratio : 800:1 (typ.) • Brightness : 300 (typ.) • Viewing Angle : -80~80 (H); -80~80 (V) System Specification • Form Factor : 3.5" •...

Téléchargement

Description

Produit Obsolète

Processor : Intel® Celeron® M 1.0GHz
System Memory : 1 x 200-pin DDR SO-DIMM, max.1GB (Default 256 MB)
Pixels : 1280x1024
Contrast Ratio : 800:1 (typ.)
Brightness : 300 (typ.)
Viewing Angle : -80~80 (H); -80~80 (V)

System Specification
Form Factor : 3.5"
Processor Socket : Socket 478
Processor : Intel® Celeron® M 1.0GHz
Front Side Bus : 400 MHz
System Chipset : Intel® 855GME/ICH4
System Memory : 1 x 200-pin DDR SO-DIMM, max.1GB (Default 256 MB)
BIOS : Award 4Mbit
VGA Controller : Intel® 855GME integrated
VGA Memory : Shared memory, max.64MB
LCD Support : 24-bit LVDS (Dual channel)
Ethernet : Dual Realtek RTL81110SC Gigabit Ethernet (inside)
Audio : Built-in audio + AC97 codec
IDE : 2 x IDE (UDMA33/66/100)
I/O Chipset : W83627EHG
Serial : 1 x RS-232,1 x RS-232/422/485(inside)*
USB : 4 x USB (2 x USB inside)
KB / Mouse Connector : 1 x PS/2 (inside)
Watchdog Timer : 256 Levels
Expansion Slots : 1 x Mini PCI (internal)
HDD : 2.5 inch 80GB
OS Optional : Windows XP Professional / Embedded, Linux
Power Adapter : DC IN 12V
Environment : Environment & Dimensions
Temperature : Operating : 0 deg.C to 45 deg.C
Humiduty : 30% to 90% non condensing
Cooling : Fanless cooling concept
Shock Operating : 15G, 11ms duration
Vibration : Operating: 5 Hz ~ 500 Hz/ 1 Grms/ 3 Axis Packing:: 5 Hz ~ 500 Hz/ 2.16 Grms/ 3 Axis

LCD Panel Specification
Viewable Size Image : 19"
Active Display Area : 376.32 (H) x 301.06 (V)
Pixel Pitch : 0.294 (H) x 0.294 (V)
Pixels : 1280x1024
Contrast Ratio : 800:1 (typ.)
Display Color : 16.7M (8bits/colors)
Brightness : 300 (typ.)
Viewing Angle : -80~80 (H); -80~80 (V)
Recommend Resolution : 1280x1024@60HZ,75HZ
Power source : AC110~240V,Universal, ±10%
Power Consumption : 35 W typical, normal operation
Power Management : VESA DPMS Compliant
Plug Play : VESA DDC 1/2B
Optional TouchScreen : Resistive

Note : All Specifications are subject to change without prior notice!
*If you use SBC on-board RS485, you need to set appropriate state of RTS line before sending/receiving data in your software program.We offer additional board that can perform auto-direction hardware function
