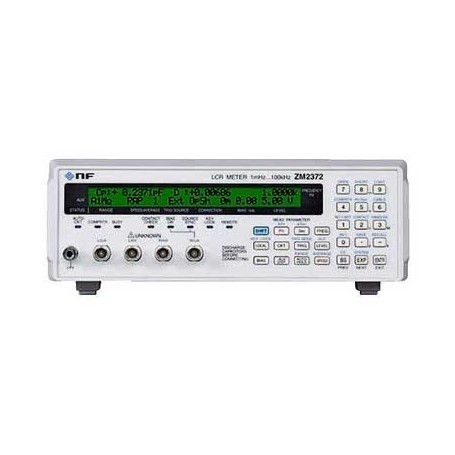

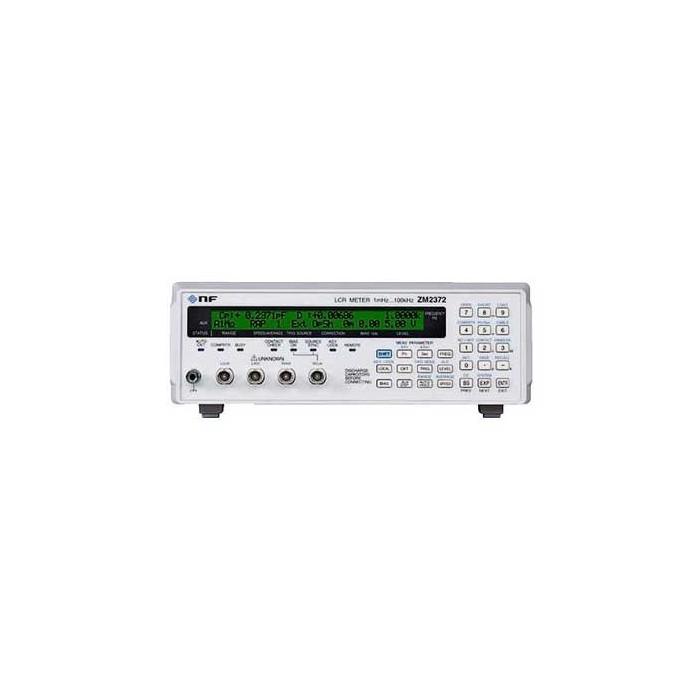

Pont RLC de 1mHz à 100kHz - Précision de 0,08% : ZM2371/ZM2372 | NF CORPORATION

Basic accuracy: 0.08 %, display resolution of 6 digits (max.) Measurement speed: Max. 2 ms at 1 kHz Measurement speed is selectable between 5 levels: RAP (rapid) , FAST, MED, SLOW and VSLO (very slow). When set to RAP, high-speed measurement at 2 ms (1kHz) or 10ms (120 Hz) can be performed....

Basic accuracy: 0.08 %, display resolution of 6 digits (max.)
Measurement speed: Max. 2 ms at 1 kHz
Measurement speed is selectable between 5 levels: RAP (rapid) , FAST, MED, SLOW and VSLO (very slow). When set to RAP, high-speed measurement at 2 ms (1kHz) or 10ms (120 Hz) can be performed.
Measurement frequency: 1 mHz to 100 kHz, 5-digit resolution
Measurement signal level: Max. 5 Vrms, 3-digit resolution
Measurements parameters: Lp, Ls, Cp, Cs, Rp, Rs, |Z|, |Y|, G, Q, D, , X, B, Rdc
Internal DC bias: 0 V to +2.50 V
Constant-voltage/constant-current drive (ALC:Auto Level Control)
DC resistance measurement
4-terminal contact check function and a handler interface for production lines (ZM2372)
