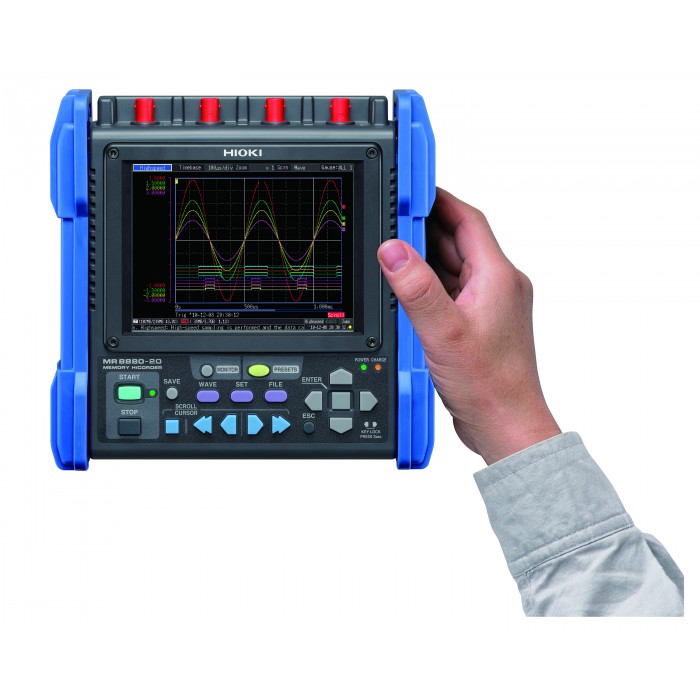

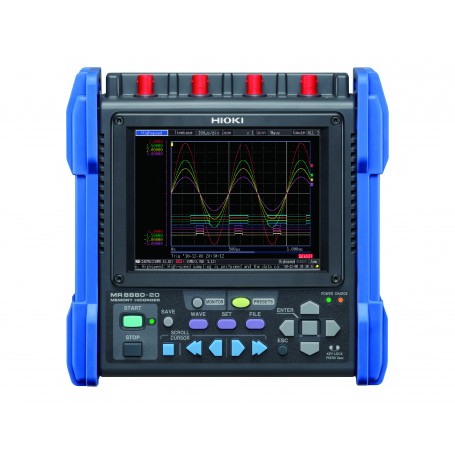

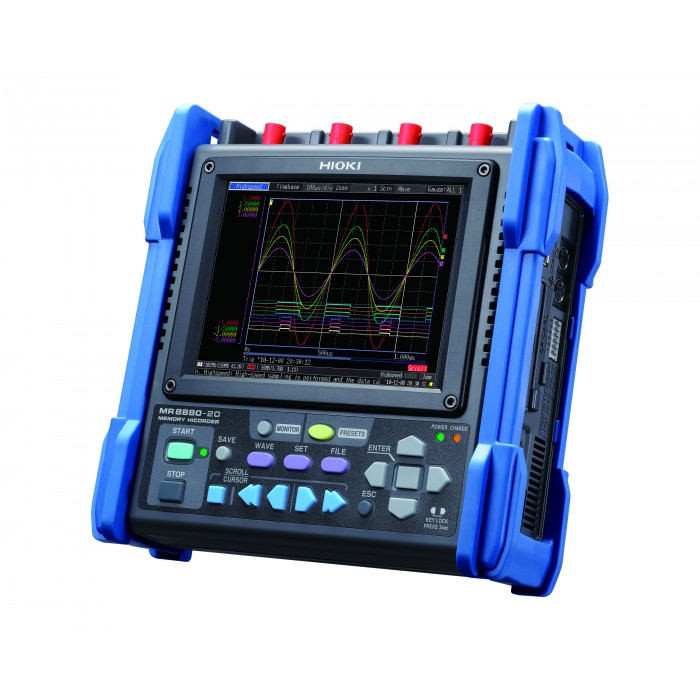

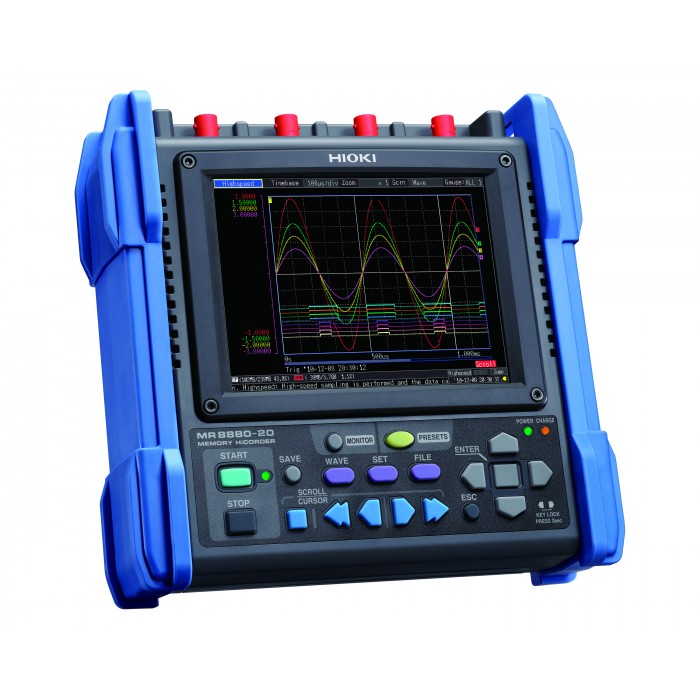

| Measurement functionality |
High-speed function (high-speed recording)
Real-time function (real-time recording) |
| No. of input channels |
4 channels of analog input + 8 channels of logic input (standard)
*Analog input channels are isolated from one another and other device circuitry. Logic input channels share a common ground with the device. |
| Max. sampling speed |
1 MS/sec (1 μs period; all channels sampled simultaneously) |
| Internal memory capacity |
14 bits × 1 Mword per channel (1 word = 2 bytes, not expandable) |
| External memory |

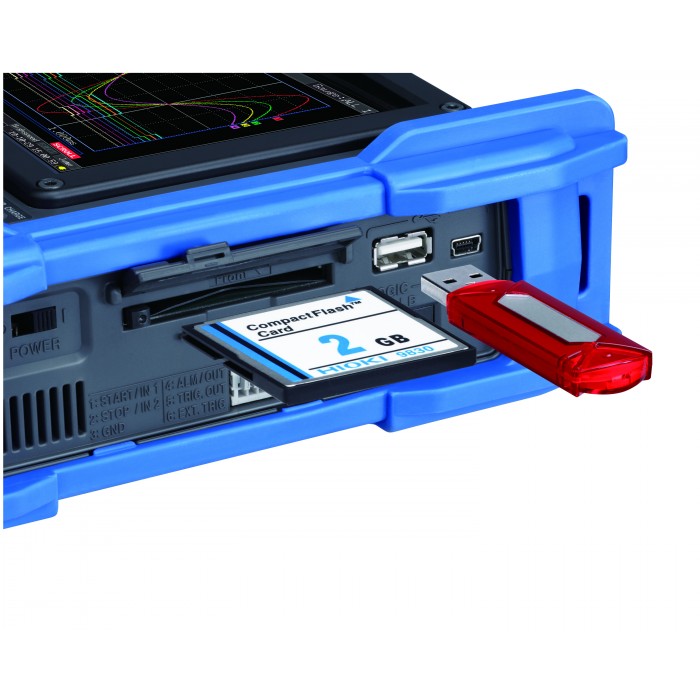

CF card slot × 1 (up to 2 GB; supported formats: FAT/FAT32)
USB memory × 1 (USB 2.0 Standard-A receptacle) |
| Communications interfaces |

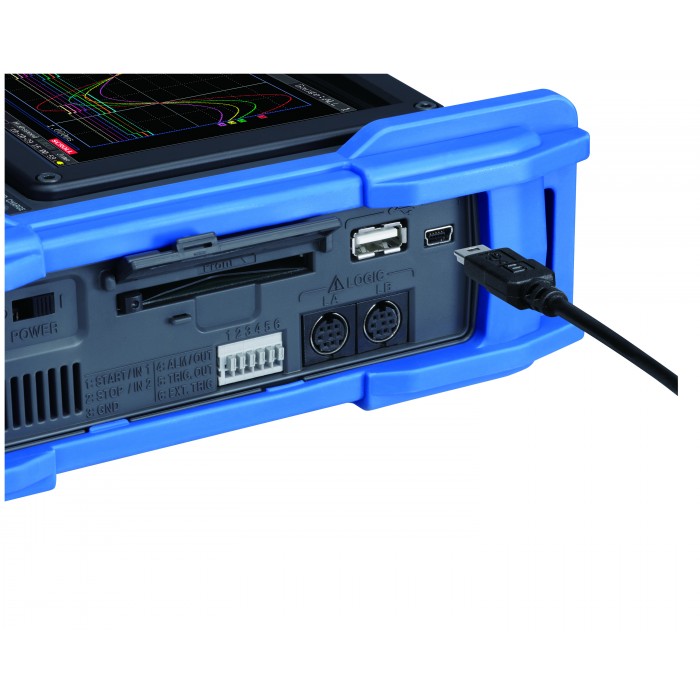

USB 2.0 Mini-B receptacle × 1
Functionality: Device configuration and measurement using communications commands; transfer of files from CF/USB memory to a computer (USB drive mode) |
Operating environment
(non-condensing) |
Operating temperature range: -10°C to 50°C
Operating humidity range: 80% RH or less at -10°C to 40°C, 60% RH or less at 40°C to 45°C, 50% RH or less at 45°C to 50°C
When powering the instrument with the Z1000 battery: 0°C to 40°C, 80% RH or less
When charging the Z1000 battery: 10°C to 40°C, 80% RH or less |
| Storage environment (non-condensing) |
Storage temperature range: -20°C to 60°C
Storage humidity range: 80% RH or less at -20°C to 40°C, 60% RH or less at 40°C to 45°C, 50% RH or less at 45°C to 60°C
Z1000 battery: -20°C to 40°C, 80% RH or less |
| Standard compliance |
Safety: EN61010
EMC: EN61326, EN61000-3-2, EN61000-3-3
Vibration resistance: JIS D 1601, Type 1: passenger vehicles; conditions: equivalent to Type A |
Charging function
(reference value at 23°C) |
Charge time: Approx. 3 hours
(The charging function is activated by connecting the AC adapter while the BATTERY PACK Z1000 is attached to the instrument.) |
External dimensions and weight
(including battery pack) |
Recorder only: Approx. 205 (W) × 199 (H) × 67 (D) mm, 1.76 kg

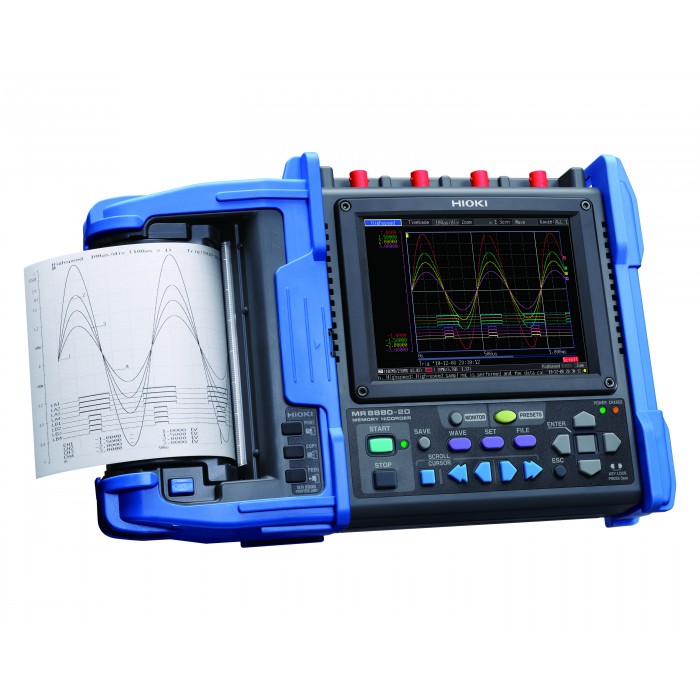

With printer: Approx. 303 (W) × 199 (H) × 67 (D) mm, 2.26 kg |
