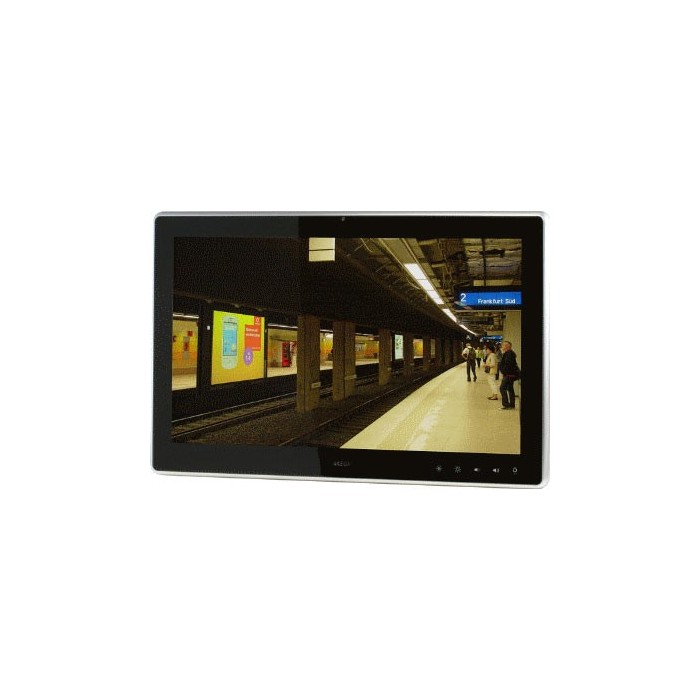

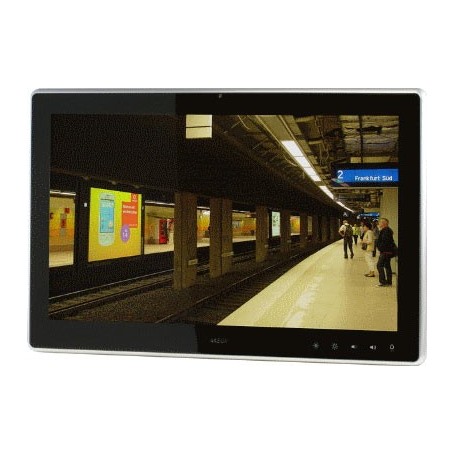

21.5" Full HD Infotainment Touch Display With Industrial Cloud Technology : ACD-521C | AAEON

• 21.5" Full HD (1920 x 1080) Fanless TFT LCD Display
• Supports Industrial Cloud Technology
• Easy-To-Clean: Multi-Touch Window Design (Two-Point)
• IPX1 100% Water-Proof
• Anti-Scratch Surface (7H Hardness)

Specifications

System :

• Input Signal : VGA or HDMI
• On Screen Display Control : Brightness, Contrast, Phase, Sharpness, AutoTune, H/V-position
• I/O connector : RJ-45 x 1, Line-out x 1, USB x 2
• OS support : Windows XP (T/S: Single point), Linux Fedora (T/S: Single point), Windows 7 ((T/S: Multi-point))

Mechanical :

• Construction : IP-65/ NEMA4 for plastic front bezel, IPx1 for plastic chassis
• Mounting : VESA 75/100
• Dimension : 21.57" x 13.7" x 2.34" (548mm x 348.1mm x 59.4mm)

Environmental :

• Operating Temperature : 32°F ~ 104°F (0°C ~ 40°C)
• Storage Temperature : -4°F ~ 140°F (-20°C ~ 60°C)
• Storage Humidity : 10%~95% @ 40°C; non-condensing
• Vibration : 1 g rms/ 5~500Hz/ Random operation
• Shock : 15 G peak acceleration (11 msec. Duration)
• EMC : CE/FCC Class B

Power Supply :

• DC Input : DC 12V, with AC power adapter with lock

LCD :

• Display Type : 21.5" TFT-LCD, CCFL
• Max Resolution : 1920 x 1080
• Max. Colors : 16.7M colors (6/8-bit for R,G,B)
• Luminance : 250 cd/m2
• Viewing Angle : 170°(H)/160°(V)
• Back Light : CCFL
• Back Light MTBF (hours) : 50,000

Touchscreen :

• Type : Projected Capacitive Multi-Touch (WindowsR 7)
• Light Transmission : 90%
