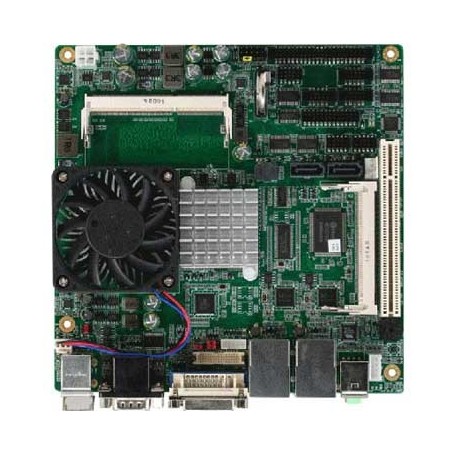

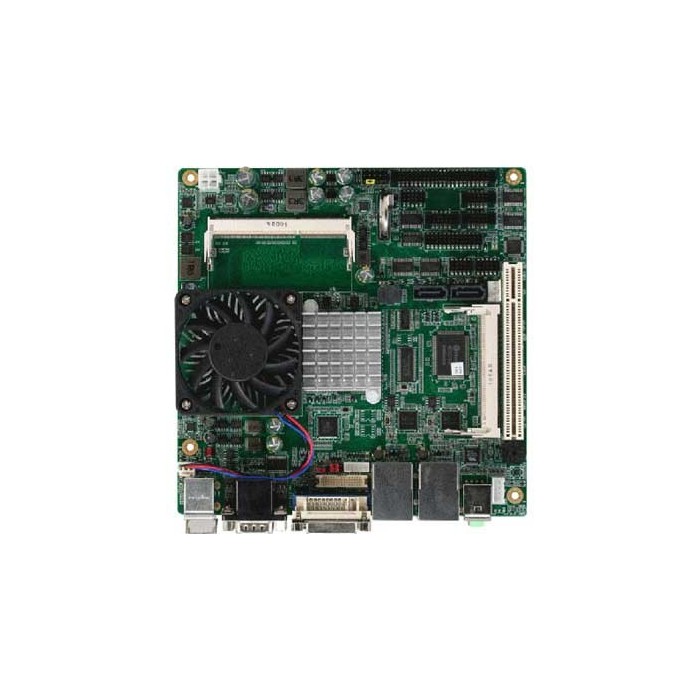

Intel Atom N455/D525 Processor : EMB-LN9T Rev.B Agrandir l'image

Intel Atom N455/D525 Processor : EMB-LN9T Rev.B | AAEON

System Form Factor : Mini-ITX Processor : Onboard Intel Atom N455/D525 Processor System Memory : 204-pin DDR3 (667/800) SODIMM x 2, Max. 4GB (N455 supports DDR 3 667) Chipset : Intel ICH8M I/O Chipset : Winbond W83627UHG Ethernet : Realtek 8102E for 10/100Base-TX...

Téléchargement

Description

System

  • Form Factor : Mini-ITX
  • Processor : Onboard Intel Atom N455/D525 Processor
  • System Memory : 204-pin DDR3 (667/800) SODIMM x 2, Max. 4GB (N455 supports DDR 3 667)
  • Chipset : Intel ICH8M
  • I/O Chipset : Winbond W83627UHG
  • Ethernet : Realtek 8102E for 10/100Base-TX (or RTL8111C for 10/100/1000Base-TX), RJ-45 x 2
  • BIOS : AMI Plug & Play SPI BIOS - 4MB ROM
  • Wake on LAN : Yes
  • Watchdog Timer : Generates a time-out system reset
  • H/W Status Monitoring : Supports power supply voltages and temperature monitoring
  • Expansion Interface : PCI x 1, Mini PCI x 1 , Mini Card x 1
  • Battery : Lithium battery
  • Power Requirement : DC-12V
  • Power Consumption (Typical) :
    - Intel Atom D525 1.8GHz, DDR3 1333 2GB
    - 1.4A@+12V
  • Board Size : 6.7" (L) x 6.7" (W) (170mm x 170mm)
  • Gross Weight : 1.1 lb (0.5kg)
  • Operating Temperature : 32°F ~ 140°F (0°C ~ 60°C)
  • Storage Temperature : -40°F ~ 176°F (-40°C ~ 80°C)
  • Operating Humidity : 0% ~ 90% relative humidity, non-condensing
  • MTBF (Hours) : 60,000

Display: Supports CRT/LCD, CRT/DVI simultaneous/ dual view display

  • Chipset :
    - Intel Atom N455/ D525 integrated
    - Integrates hardware MPEG2 decoder
  • Memory : Shared system memory up to 384 MB/ DVMT 4.0
  • Resolution :
    - Up to 2048 x 1536 (QXGA) @ 60 Hz for CRT (D525)
    - Up to 1400 x 1050 (SXGA)@ 60 Hz for CRT (N455)
    - Up to 1366 x 768 or 1280 x 800 (WXGA) for LCD & DVI
  • LCD Interface : 18-bit single channel or 24-bit single channel
  • Video Interface : VGA, DVI-D

I/O

  • Storage : SATA x 2, CompactFlash? x 1
  • Serial Port : RS-232 x 8, RS-232/422/485 x 1
  • Parallel Port : SPP/EPP/ECP mode
  • USB : USB2.0 x 8
  • Digital I/O : Supports 8-bit (Programmable)
  • PS/2 Port : Keyboard + Mouse x 1
  • Audio : Line-out, Mic-in, Amplifier speaker out, Line-in (optional), SPDIF (optional)
