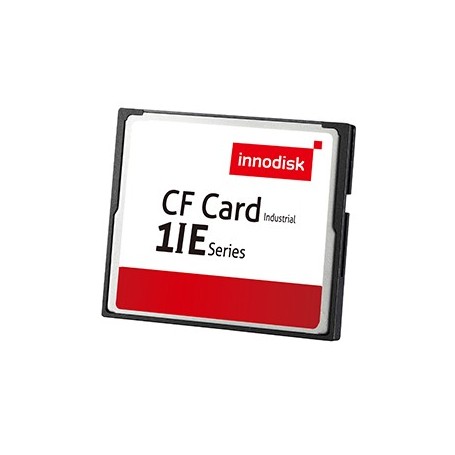

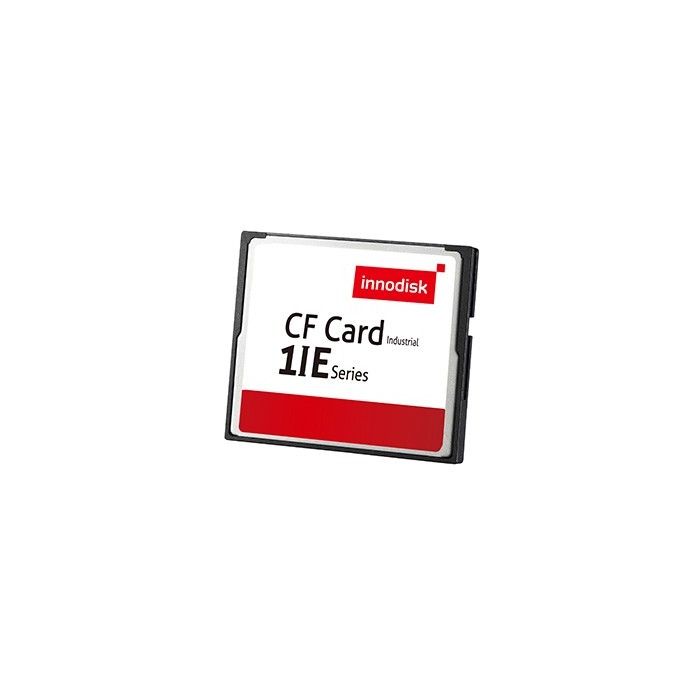

iCF 1IE | INNODISK

The Innodisk iCF 1IE storage card is designed to work in harsh industrial environments and is also able to reduce operation system boot time. Our proprietary iSLC technology ensures that the iCF 1IE lasts for up to 30,000 operations, with a lifespan 10 times longer than that of an MLC-based SSD.

Features :

• iSLC technology
• Excellent data transfer speed
• iSMART disk health monitoring
• Intelligent system for error recovery
• Mechanical design for anti-vibration
• Write protection security

Benefits :
The Innodisk iCF 1IE allows manufacturers to replace traditional rotating disk drives with confidence.

• High-mobility, and easy plug-in and plug-out
• Supports advanced PIO (0-4), Multiword DMA (0-2), Ultra DMA (0-4) transfer mode, multi-sector transfers, and LBA addressing
• Compatible with CF Specifications version 3.0, PC Card standard, IDE standard interface, and ATA standard

Specifications :

• Model Name : iCF 1IE
• Interface : PATA
• Type : Standard
• Flash Type : iSLC
• Connector : 50pin CF connector
• Capacity : 2GB~32GB
• Max. Channels : 2
• Sequential R/W (MB/sec, max.) : 40/18
• Max. Power consumption : 0.75W(5V x 150mA)/0.5W(3.3V x 150mA)
• H/W Write Protect : Y
• ATA Security : Y
• S.M.A.R.T. : Y
• Dimension (WxLxH/mm) : 42.8 x 36.4 x 3.3
• Vibration : 20G@7~2000Hz
• Shock : 1500G@0.5ms
• MTBF : >3 million hours
• Storage Temperature : -55°C ~ +95°C
• Operation Temperature :
  - Standard Grade: 0°C ~ +70°C
  - Industrial Grade. OP: -40°C ~ +85°C
