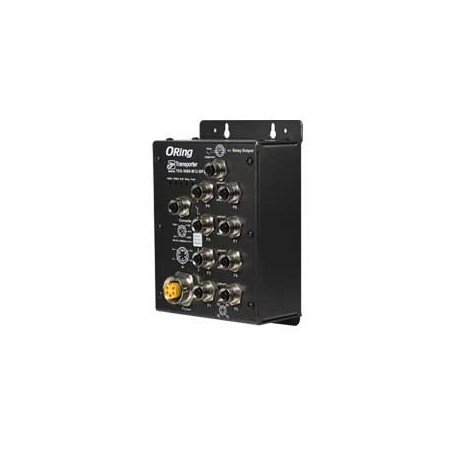

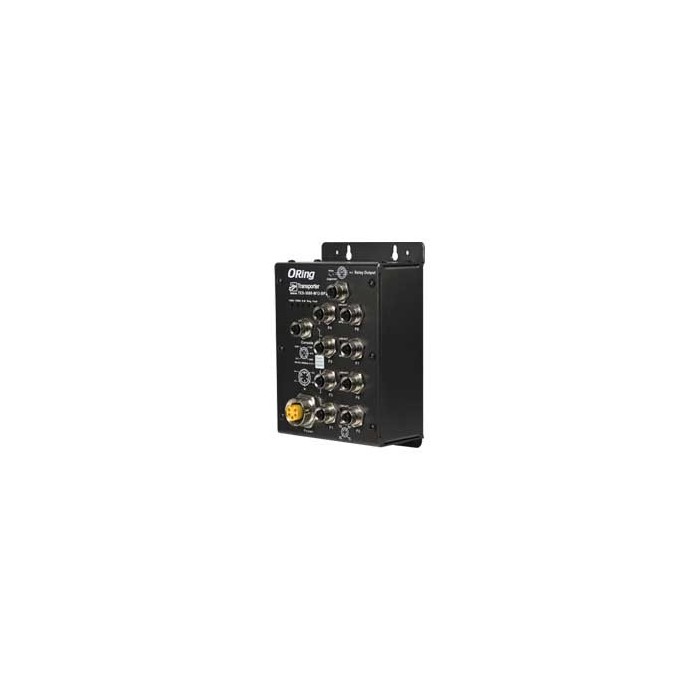

Switch transport EN50155, 8 ports : TES-3080-M12-BP2 | ORING

Leading EN50155-compliant Ethernet switch for rolling stock application World’s fastest Redundant Ethernet Ring: O-Ring (recovery time < 10ms over 250 units of connection) Open-Ring support the other vendor’s ring technology in open architecture STP/RSTP/MSTP supported Support PTP...

Leading EN50155-compliant Ethernet switch for rolling stock application
World’s fastest Redundant Ethernet Ring: O-Ring (recovery time < 10ms over 250 units of connection)
Open-Ring support the other vendor’s ring technology in open architecture
STP/RSTP/MSTP supported
Support PTP Client (Precision Time Protocol) clock synchronization
IGMP v2/v3 (IGMP snooping support) for filtering multicast traffic
Port Trunking for easy of bandwidth management
SNMP v1/v2c/v3 support for secured network management
RMON for traffic monitoring
Support LLDP protocol
Provided two relay bypass function ports
Port lock to prevent access from unauthorized MAC address
Event notification through Syslog, Email, SNMP trap, and Relay Output
Windows utility (Open-Vision) support centralized management and configurable by Web-based ,Telnet, Console (CLI)
Ultra-rugged enclosure M12 connector for toughest industrial usages
Wall mounting enabled

Nombre de ports	8 ports

Nombre de ports	8 ports
