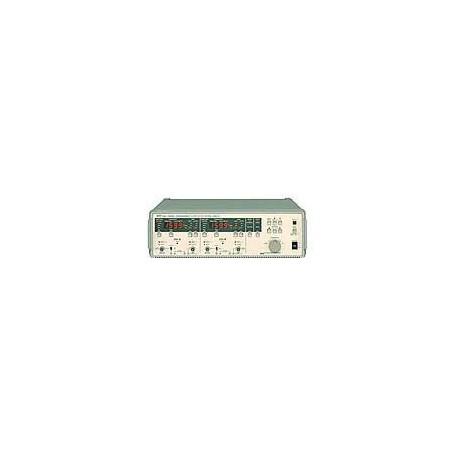

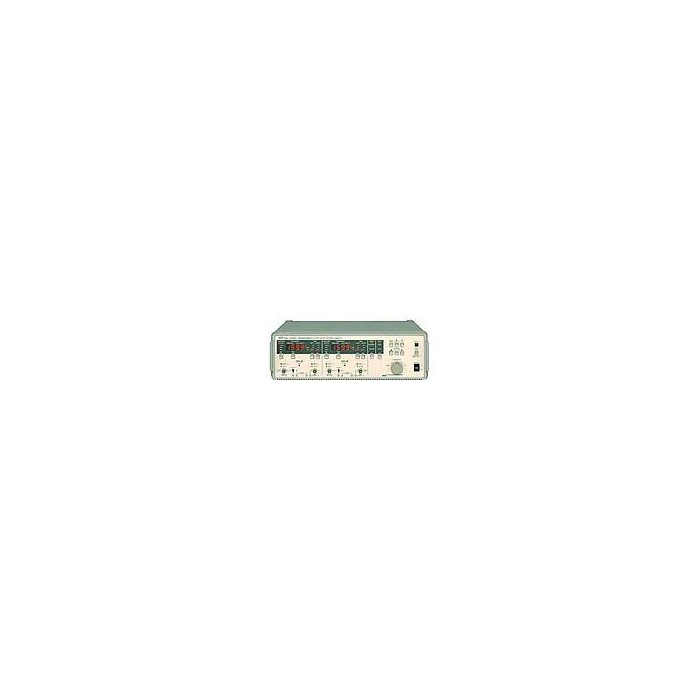

3628 : filtre programmable 2 voies | NF CORPORATION

• Filter mode : LP-MF, LP-PL, HPF, BPF, BEF, THRU (MF: maximum flat, PL: phase linear)
• Operational modes : SEPARATE (separate CH-A and CH-B), CASCADE (serially connected CH-A and CH-B)
• Pass band gain : X1, X2, X5 selectable at both input and output
• Input type : Single-ended or floating, selectable
• Frequency response in THRU mode *3 : DC to 2MHz (+5dB, -3dB) typ.
• Input impedance : 1MΩ ± 2%
• Maximum attenuation : 90dB or greater (to 100kHz), 70dB or greater (to 2MHz))
• GPIB : Standard
• Power requirements : AC100, 120, 220 or 240V± 10% (max. 250V), switchable
• Dimensions (mm) : 434(W) X 132.5(H) X 400(D)
• Weight : Approx. 10.5kgbr>
